DMS Seal Manufacturer piston seal Suppliers for pressure work and sliding high speed occasions

Company Advantages
1. DMS Seal Manufacturer is manufactured by adopting advanced production technologies. These technologies are constantly updated and improved to meet the industry standards and thus the product can be provided with long-lasting and strong functionality.
2. Our prominence in this domain has helped us come up with quality DMS Seal Manufacturer .
3. DMS Seal Manufacturer is manufactured by dedicated workers who pay close attention to the production process.
4. The product is strong and robust. It is made of a sturdy frame that can maintain its overall shape and integrity, which makes it be able to stand up to everyday use.
5. This product stands out for its comfort. Its bio-mechanically engineered design helps adapt to the unique contours of the foot, allowing the maximum comfort.
6. This product is safe. Its fabrics have been tested and it does not contain harmful chemicals, such as lead, formaldehyde, and phthalates.
7. This product stands out for its outstanding stability. It has a well-designed and sturdy structure to significantly support the foot movement.
8. This product is safe enough. In the processing, threads used to create the fabric is not treated with any chemical and contains no harmful substances.
9. The product has high commercial value to meet the demanding requirements of customers around the world.
10. After years of improvement, the product has received more and more attention at home and abroad and has great commercial value.
11. The product is well adapted to market needs and will be more widely used in the near future.

1. Installation Recommendation

2. Application and properties

The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.

3. Standard materials

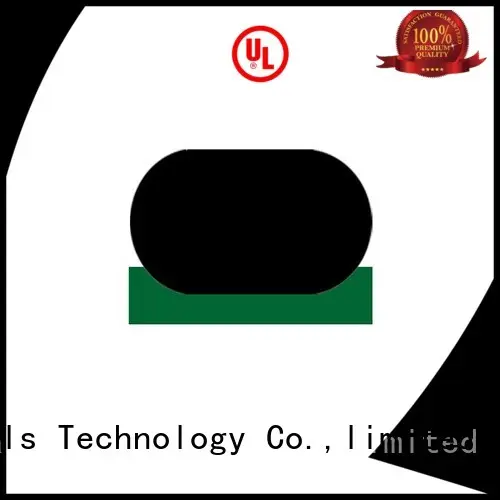

Sealing ring: filled PTFE

O-Ring: NBR / FKM

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 35MPa	-30℃ +200℃	1.5 m/s	general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
3 4 5	6 7 8	2.3 2.3 2.3	2.5 2.5 2.5	SPNC3*6*2.5 SPNC4*7*2.5 SPNC5*8*2.5
6 7 8	9 10 11	2.3 2.3 2.3	2.5 2.5 2.5	SPNC6*9*2.5 SPNC7*10*2.5 SPNC8*11*2.5
9 10 10	12 13 14	2.3 2.3 3.0	2.5 2.5 3.2	SPNC9*12*2.5 SPNC10*13*2.5 SPNC10*14*3.2
11 11.2 12	15 15.2 16	3.0 3.0 3.0	3.2 3.2 3.2	SPNC11*15*3.2 SPNC11.2*15.2*3.2 SPNC12*16*3.2
12.5 14 15	16.5 18 19	3.0 3.0 3.0	3.2 3.2 3.2	SPNC12.5*16.5*3.2 SPNC14*18*3.2 SPNC15*19*3.2
16 18 20	20 22 24	3.0 3.0 3.0	3.2 3.2 3.2	SPNC16*20*3.2 SPNC18*22*3.2 SPNC20*24*3.2
20 21 22	24 25 26	3.0 3.0 3.0	3.2 3.2 3.2	SPNC20*24*3.2 SPNC21*25*3.2 SPNC22*26*3.2
22 22.4 24	28 28.4 30	4.4 4.4 4.4	4.7 4.7 4.7	SPNC22*28*4.7 SPNC22.4*28.4*4.7 SPNC24*30*4.7
25 25.5 26	31 31.5 32	4.4 4.4 4.4	4.7 4.7 4.7	SPNC25*31*4.7 SPNC25.5*31.5*4.7 SPNC26*32*4.7
28 29 29.5	34 35 35.5	4.4 4.4 4.4	4.7 4.7 4.7	SPNC28*34*4.7 SPNC29*35*4.7 SPNC29.5*35.5*4.7
30 31 31.5	36 37 37.5	4.4 4.4 4.4	4.7 4.7 4.7	SPNC30*36*4.7 SPNC31*37*4.7 SPNC31.5*37.5*4.7
32 34 35	38 40 41	4.4 4.4 4.4	4.7 4.7 4.7	SPNC32*38*4.7 SPNC34*40*4.7 SPNC35*41*4.7
35.5 36 38	41.5 42 44	4.4 4.4 4.4	4.7 4.7 4.7	SPNC35.5*41.5*4.7 SPNC36*42*4.7 SPNC38*44*4.7

Company Features
1. Dms Seals Technology Co.,limited mainly produces high quality , and also provides a wide range of complete services for design, production, and trade. Dms Seals Technology Co.,limited has defeated many competitors in the production field of . Achieving the goals it has outlined for itself, Dms Seals Technology Co.,limited now becomes one of the top suppliers of worldwide. Over the past years, Dms Seals Technology Co.,limited has been focusing on the development, production, and marketing of . We have been widely accepted in China.
2. Dms Seals Technology Co.,limited has unique advantages in production technology. Through the use of high-tech means, DMS Seal Manufacturer has made great achievements, highlighting the advantages of piston seal . DMS Seal Manufacturer enjoys a great reputation because of its highly innovative technologies.
3. We will keep providing customers with high quality hydraulic o rings suppliers . Check it! Dms Seals Technology Co.,limited offers nothing but the best to our clients. Check it! Since its inception, DMS Seal Manufacturer has focused on market demand and continuously upgraded and improved its products. Check it!
