DMS Seal Manufacturer pneumatic cylinder rod seal for sale

Company Advantages
1. All materials of DMS Seal Manufacturer are strictly tested in conformity with the international standards.
2. pneumatic cylinder rod seal is fantastic with its unique shape.
3. pneumatic cylinder rod seal pursues best performance and perfect design.
4. This product is built to bear a large amount of pressure. Its reasonable structure design allows it to withstand a certain pressure without damage.
5. This product is not affected by external factors. The protective finish on its surface helps prevent exterior damage such as chemical corrosion.
6. The product is resistant to fading. Its materials have been tested under normal washing, dry cleaning, perspiration, and chlorinated water to check colorfastness.
7. Dms Seals Technology Co.,limited always provides pneumatic cylinder rod seal  with good price and thoughtful service.
8. Dms Seals Technology Co.,limited has great work efficiency and all its production tasks can be completed in a quality and quantity manner.
9. Dms Seals Technology Co.,limited has won the trust of its customers with stable and reliable product quality.

1. Installation Recommendation

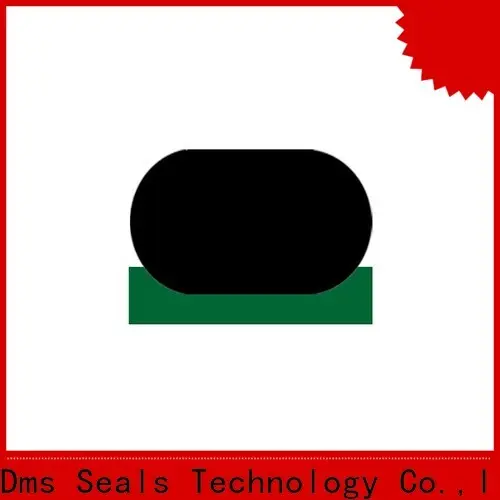

2. Application and properties

The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 35MPa	-30℃ +200℃	1.5 m/s	general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
3 4 5	6 7 8	2.3 2.3 2.3	2.5 2.5 2.5	SPNC3*6*2.5 SPNC4*7*2.5 SPNC5*8*2.5
6 7 8	9 10 11	2.3 2.3 2.3	2.5 2.5 2.5	SPNC6*9*2.5 SPNC7*10*2.5 SPNC8*11*2.5
9 10 10	12 13 14	2.3 2.3 3.0	2.5 2.5 3.2	SPNC9*12*2.5 SPNC10*13*2.5 SPNC10*14*3.2
11 11.2 12	15 15.2 16	3.0 3.0 3.0	3.2 3.2 3.2	SPNC11*15*3.2 SPNC11.2*15.2*3.2 SPNC12*16*3.2
12.5 14 15	16.5 18 19	3.0 3.0 3.0	3.2 3.2 3.2	SPNC12.5*16.5*3.2 SPNC14*18*3.2 SPNC15*19*3.2
16 18 20	20 22 24	3.0 3.0 3.0	3.2 3.2 3.2	SPNC16*20*3.2 SPNC18*22*3.2 SPNC20*24*3.2
20 21 22	24 25 26	3.0 3.0 3.0	3.2 3.2 3.2	SPNC20*24*3.2 SPNC21*25*3.2 SPNC22*26*3.2
22 22.4 24	28 28.4 30	4.4 4.4 4.4	4.7 4.7 4.7	SPNC22*28*4.7 SPNC22.4*28.4*4.7 SPNC24*30*4.7
25 25.5 26	31 31.5 32	4.4 4.4 4.4	4.7 4.7 4.7	SPNC25*31*4.7 SPNC25.5*31.5*4.7 SPNC26*32*4.7
28 29 29.5	34 35 35.5	4.4 4.4 4.4	4.7 4.7 4.7	SPNC28*34*4.7 SPNC29*35*4.7 SPNC29.5*35.5*4.7
30 31 31.5	36 37 37.5	4.4 4.4 4.4	4.7 4.7 4.7	SPNC30*36*4.7 SPNC31*37*4.7 SPNC31.5*37.5*4.7
32 34 35	38 40 41	4.4 4.4 4.4	4.7 4.7 4.7	SPNC32*38*4.7 SPNC34*40*4.7 SPNC35*41*4.7
35.5 36 38	41.5 42 44	4.4 4.4 4.4	4.7 4.7 4.7	SPNC35.5*41.5*4.7 SPNC36*42*4.7 SPNC38*44*4.7

Company Features
1. Dms Seals Technology Co.,limited has been recognized as a trustworthy manufacturer in the international market. We produce and distribute high quality . Dms Seals Technology Co.,limited is a well-known manufacturer of pneumatic cylinder rod seal based in China. Our reputation proves our manufacturing capability. Dms Seals Technology Co.,limited has evolved into an experienced Chinese manufacturer. In the past years, we are engaged in the development, design, and production of . With years of experience in R&D and manufacturing, Dms Seals Technology Co.,limited is a reputable and professional supplier in the domestic market.
2. Our team of manufacturing experts has years of combined experience in the industry. They use their depth of experience to solve challenges from customers and bring them substantial results. We have teams of professionals to engage in product design and production. They are project managers, technical workers, designers, and production workers. Every one of them has specific knowledge and expertise in this industry. The factory is equipped with advanced testing equipment and standardized production facilities. This enables workers and the QC team to strictly control of production quality. We have imported a series of production facilities. These unique manufacturing facilities allow us to address a broad range of product objectives and meet rigid quality assurance standards. We have invested a series of advanced production facilities. By utilizing these machines, we can put close eyes on our production, minimizing delays and allowing flexibility in delivery schedules.
3. Dms Seals Technology Co.,limited always worked hard to provide quality services. Inquire! cylinder oil seal delivers the DMS Seal Manufacturer's spiritual pursuit and carries its cultural values. Inquire! It is the idea of that makes Dms Seals Technology Co.,limited set deep root in hyd cylinder seal kit market. Inquire! Dms Seals Technology Co.,limited adheres to the customer-centric, scientific and technological innovation business philosophy. Inquire! DMS Seal Manufacturer always puts the adherence to the core concept of and as the core values the first. Inquire!
