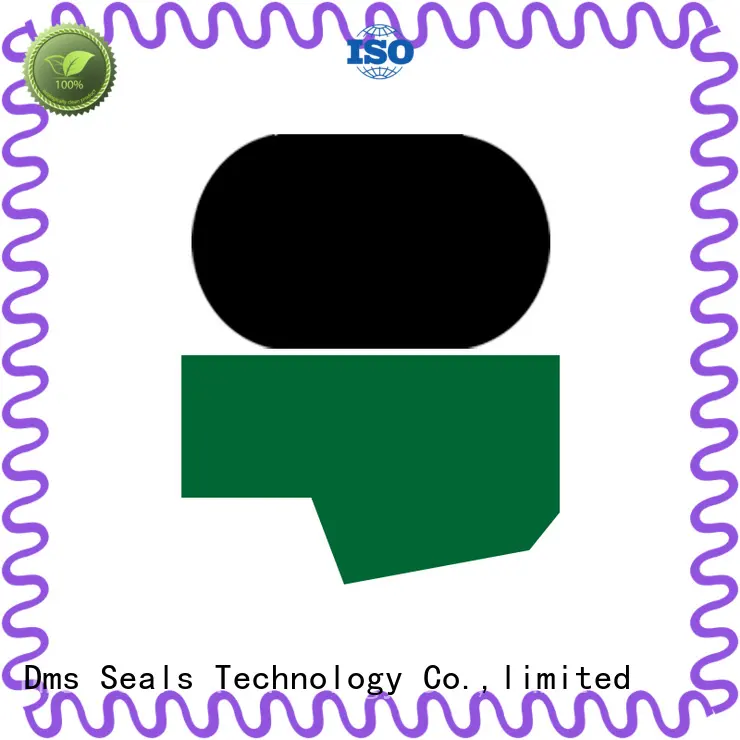

DMS Seal Manufacturer pneumatic rod seals factory for sale 1

DMS Seal Manufacturer pneumatic rod seals factory for sale 2

DMS Seal Manufacturer pneumatic rod seals factory for sale

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃+200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water, gas

Inquiry

Company Advantages
1. DMS Seal Manufacturer is made of good-quality materials and beautifully crafted by skilled worker. Seal we produced has applications in a wide range of fields
2. The success of Dms Seals Technology Co.,limited hinges on our outstanding team of pneumatic rod seals designers and manufacturing engineers. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals
3. pneumatic rod seals has features and provides a long service life under extreme conditions. We have developed solutions of the sealing of special working condition
4. pneumatic rod seals possesses such good performance as , thus has achieved good results in practical applications. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d_N h9			Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	D₁ H9	L₁+0.2	R₁	10MPa	20MPa	40MPa	d₂
3-7.9	8-18.9	-	d_N+4.9	2.2	0.4	0.3	0.20	0.15	1.78
8-18.9	19-37.9	-	d_N+7.3	3.2	0.6	0.4	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	d_N+10.7	4.2	1.0	0.4	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	d_N+15.1	6.3	1.3	0.5	0.30	0.20	5.33
200-255.9	256-649.9	38-199.9	d_N+20.5	8.1	1.8	0.6	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	d_N+24.0	8.1	1.8	0.6	0.35	0.25	7.00
650-999.9	≥1000.0	256-649.9	d_N+27.3	9.5	2.5	0.7	0.50	0.30	8.40
≥1000.0	-	650-999.9	d_N+38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Applicable to high and low speed reciprocating motion and high pressure system cylinder rod sealing. Good dimensional stability, not affected by temperature, low friction, strong corrosion resistance, could work in the situation with or without lubrication, easy installation. Meet the standards of GB/T 15242.1-94 and GB/T 15242.3-94.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

Rod Dia.

Groove Dia.

Groove Width

Order No.

O-Ring Dimensions

d_N h9

D₁ H9

L₁+0.2

27.3

30.7

29.3

3.2

4.2

3.2

GSJ20*27.3*3.2

GSJ20*30.7*4.2

GSJ22*29.3*3.2

21.89*2.62

23.39*3.53

23.47*2.62

32.7

32.3

35.7

4.2

3.2

4.2

GSJ22*32.7*4.2

GSJ25*32.3*3.2

GSJ25*35.7*4.2

26.57*3.53

26.64*2.62

29.74*3.53

38.7

40.7

42.7

4.2

GSJ28*38.7*4.2

GSJ30*40.7*4.2

GSJ32*42.7*4.2

31.34*3.53

34.52*3.53

36.09*3.53

45.7

46.7

53.1

4.2

6.3

GSJ35*45.7*4.2

GSJ36*46.7*4.2

GSJ38*53.1*6.3

37.69*3.53

40.87*3.53

43.82*5.33

50.7

55.1

57.1

4.2

6.3

GSJ40*50.7*4.2

GSJ40*55.1*6.3

GSJ42*57.1*6.3

44.04*3.53

43.82*5.33

46.99*5.33

55.7

60.1

60.7

4.2

6.3

4.2

GSJ45*55.7*4.2

GSJ45*60.1*6.3

GSJ50*60.7*4.2

47.22*3.53

50.17*5.33

53.57*3.53

65.1

70.1

66.7

6.3

4.2

GSJ50*65.1*6.3

GSJ55*70.1*6.3

GSJ56*66.7*4.2

56.52*5.33

59.69*5.33

59.92*3.53

71.1

76.5

75.1

6.3

8.1

6.3

GSJ56*71.1*6.3

GSJ56*76.5*8.1

GSJ60*75.1*6.3

59.69*5.33

62.87*6.99

66.04*5.33
