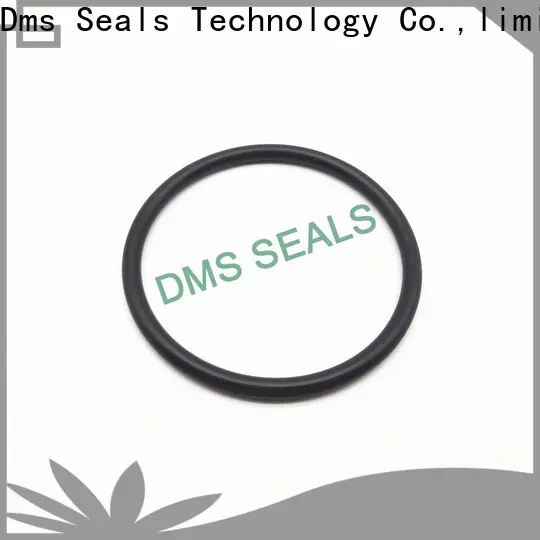

DMS Seal Manufacturer polyurethane transparent o ring Supply in highly aggressive chemical processing

Company Advantages
1. The material of transparent o ring allows to make itself .
2. There are different types of transparent o ring for our customer's choice.
3. Dms Seals Technology Co.,limited provides various custom-made transparent o ring for your selection.
4. After many times of iterations, sole weight of transparent o ring 'body frame is effectively decreased.
5. This product is very hygienic. The sheets made it are sand-blasted and primed to remove dust and other contaminants.
6. This product has the advantage of optimizing fiber elasticity. It can bounce back to its original shape perfectly after being bent, folded or stretched.
7. The product works stably under the reversible circuits. Its forward and reverse contactors are equipped with electric interlocks and mechanical interlocks to ensure smooth operation.
8. Dms Seals Technology Co.,limited has very professional engineer team who can do the special design of products for you.
9. Dms Seals Technology Co.,limited has won customers' trust and support with excellent sales, perfect design, excellent production and sincere services.
10. Dms Seals Technology Co.,limited has strong technical strength and has provided excellent services for many large transparent o ring brands around the world.
11. Dms Seals Technology Co.,limited offers after sales technical service support to its overseas customers.

1. Installation Recommendation

2. Application and properties

Double acting seals, the sealing effect is achieved by the deformation of the section of the O-Rings, and the deformation is determined by the depth of the installation groove. Under pressure, the O-ring has a large surface tension like liquid, used for static sealing more. It is only recommended for better conditions in dynamic applications. System lubrication, pressure, temperature, sealing clearance, speed, medium and surface quality of metal parts determine the service life of O-Rings. It is not recommended if the lubrication is not sufficient during rotary motion.

3. Standard materials

NBR / FKM

4. Performance parameter

	Static Seal	Dynamic Seal
Working Pressure	No support ring, up to 20MPa; With the support ring, up to 40MPa; With special support ring, up to 200MPa.	No support ring, up to 5MPa; With the support ring, higher pressure.
Movement Speed	Maximum reciprocating speed up to 0.5m / s; maximum rotation speed up to 2.0m/s.
Temperature	NBR: -30℃ - 100℃;  FKM: -20℃ - 220℃.

5. Wire Diameter Tolerance

Wire diameter of O-Ring (mm)	Tolerance (±mm)
0-1.8	0.08
1.80-2.65	0.09
2.65-3.55	0.10
3.55-5.30	0.13
5.30-7.00	0.15
7.00-8.00	0.18
8.00-10.00	0.21
10.00-12.00	0.25



6. Inner diameter tolerance

Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm
0.70-2.50 2.50-4.50 4.50-6.30	0.13 0.14 0.15	43.70-45.00 46.00-46.20 46.20-47.50	0.42 0.43 0.44	95.00-97.50 97.50-100.00 100.00-103.00	0.83 0.84 0.87
6.30-8.50 8.50-10.00 10.00-11.20	0.16 0.17 0.18	47.50-48.70 48.70-50.00 50.00-51.50	0.45 0.46 0.47	103.00-106.00 106.00-109.00 109.00-112.00	0.89 0.91 0.93
11.20-14.00 14.00-16.00 16.00-18.00	0.19 0.20 0.21	51.50-53.00 53.00-54.50 54.50-56.00	0.48 0.50 0.51	112.00-115.00 115.00-118.00 118.00-122.00	0.95 0.97 1.00
18.00-20.00 20.00-21.20 21.20-23.60	0.22 0.23 0.24	56.00-58.00 58.00-60.00 60.00-61.50	0.52 0.54 0.55	122.00-125.00 125.00-128.00 128.00-132.00	1.03 1.05 1.08
23.60-25.00 25.00-26.50 26.50-28.00	0.25 0.26 0.28	61.50-63.00 63.00-65.00 65.00-67.00	0.56 0.58 0.59	132.00-136.00 136.00-140.00 140.00-145-00	1.10 1.13 1.17
28.00-30.00 30.00-31.50 31.50-33.50	0.29 0.31 0.32	67.00-69.00 69.00-71.00 71.00-73.00	0.61 0.63 0.64	145.00-150.00 150.00-155.00 155.00-160.00	1.20 1.24 1.27
33.50-34.50 34.50-35.50 35.50-36.50	0.33 0.34 0.35	73.00-75.00 75.00-77.50 77.50-80.00	0.66 0.67 0.69	160.00-165.00 165.00-170.00 170.00-175.00	1.31 1.34 1.38
36.50-37.50 37.50-38.70 38.70-40.00	0.36 0.37 0.38	80.00-82.50 82.50-85.00 85.00-87.50	0.71 0.73 0.75	175.00-180.00 180.00-185.00 185.00-190.00	1.41 1.44 1.48
40.00-41.20 41.20-42.50 42.50-43.70	0.39 0.40 0.41	87.50-90.00 90.00-92.50 92.50-95.00	0.77 0.79 0.81	190.00-195.00 195.00-200.00 200.00-206.00	1.51 1.55 1.59
206.00-212.00 212.00-218.00 224.00-230.00	1.63 1.71 1.75	325.00-335.00 335.00-345.00 345.00-355.00	2.43 2.49 2.56	500.00-515.00 515.00-530.00 530.00-545.00	3.54 3.63 3.72
230.00-236.00 236.00-243.00 243.00-250.00	1.79 1.83 1.88	355.00-365.00 365.00-375.00 375.00-387.00	2.62 2.68 2.76	545.00-560.00 560.00-580.00 580.00-600.00	3.81 3.93 4.05
250.00-258.00 258.00-265.00 265.00-272.00	1.93 1.98 2.02	387.00-400.00 400.00-412.00 412.00-425.00	2.84 2.91 2.99	600.00-615.00 615.00-630.00 630.00-650.00	4.13 4.22 4.34
272.00-280.00 280.00-290.00 290.00-300.00	2.08 2.14 2.21	425.00-437.00 437.00-450.00 450.00-462.00	3.07 3.15 3.22	650.00-670.00	4.46
300.00-307.00 307.00-315.00 315.00-325.00	2.25 2.30 2.37	462.00-475.00 475.00-485.00 485.00-500.00	3.30 3.37 3.45

Company Features
1. Dms Seals Technology Co.,limited, a pioneer in transparent o ring industry, has been devoted to its R&D and production for many years. As a national enterprise, DMS Seal Manufacturer is also famous in the oversea market. Dms Seals Technology Co.,limited is a production enterprise combining research, manufacturing and sales together.
2. Dms Seals Technology Co.,limited has strong technical force and new product development capabilities. 1 2 inch rubber o ring has been highly recognized by customers for its finest quality. Dms Seals Technology Co.,limited has qualitative products as well as professional sales and technical team. Dms Seals Technology Co.,limited has a strong technical force and perfect after-sales service capabilities.
3. From the efficiency of our buildings to our progress in managing energy, water, and waste, we continue to find ways to reduce the company's impact on the environment and embed sustainability throughout our businesses. We are committed to the core idea of "customer-center". We will wholeheartedly serve every customer and strive to offer them worthy solutions and services. Our company bears social responsibilities. We dispose of our industrial waste in a safe and effective manner in line with government laws and regulations. We view success not by our quarterly results, but rather by the long term overall health and growth of the organization. We will keep investing in quality people, industries and capabilities that support our long term vision. We aim to provide the highest quality services for our long-term customers and we will actively cooperate with our customers to offer effective solutions and cost benefits.

DMS Seal Manufacturer polyurethane transparent o ring Supply in highly aggressive chemical processing

transparent o ring

Type:
