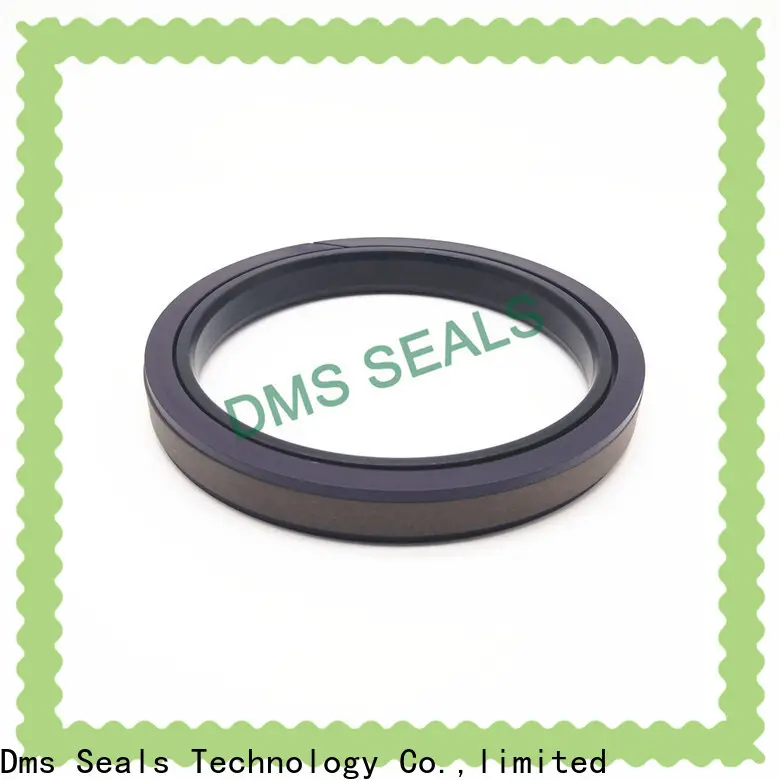

DMS Seal Manufacturer ptfe bonded seal manufacturer glyd ring

Company Advantages
1. Dissipation factor is small for bonded seal manufacturer .
2. The packing for bonded seal manufacturer is simple but beautiful.
3. bonded seal manufacturer is designed to be across the market.
4. The surface of the product is flat and smooth. It is homogeneous regarding smoothness distribution due to RTM process technology.
5. The product is characterized by hygroscopicity. It is able to absorb moisture from the surrounding atmosphere without compromising its durability.
6. The product is highly resistant to disinfectants. Its plastics and polymers materials allow for effective sterilization without compromising device performance.
7. The product has the advantage of sliding performance. Coated with marine-grade gel and made of fiberglass materials, it is guaranteed enough smoothness.
8. This kind of product can make people reduce operational errors and shorten working hours. For manufacturers, this is really a cost-controlled product.
9. This product signals the message: "We are mindful of commodity users in greater detail, beginning with the pack". And this could motivate the customer’s purchase.
10. This product will definitely let the public learn about a product, a company, or a brand. It will foster a high level of trust from customers.
11. This product has revolutionized the transportation of goods and ultimately the international export market as turnaround time, theft, damage to goods and costs all went down.
12. Anyone who sees this product automatically gets interested in what it contains. In this way, it conveniently markets the merchandise without one having to spend extra on marketing.

1. Installation Recommendation

2. Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17

Company Features
1. Dms Seals Technology Co.,limited is a leading expert in bonded seal manufacturer manufacture in China. Due to the fast business development, more and more new projects are introduced to Dms Seals Technology Co.,limited. Dms Seals Technology Co.,limited, one of the first class suppliers of , has an extra-strong design and manufacturing capability.
2. Through the efforts of its excellent R&D team, Dms Seals Technology Co.,limited is the young pioneer in mechanical shaft seal suppliers market. Dms Seals Technology Co.,limited has strong technical force and has a high-quality professional R&D team. The professional R&D team has built Dms Seals Technology Co.,limited' solid technical strength and competitiveness.
3. “Excellence, Integrity and Entrepreneurship” are the common beliefs we bring to our professional and personal behavior – they are the fundamental strengths of our business. We aim to deliver a positive experience and provide unparalleled levels of attention and support for our customers. We are establishing a customer-eccentric belief system. It is our mission to enhance customer satisfaction. We will achieve this task by improving product quality, offering professional customer service, and offering clients with targeted products. To embrace sustainability, we measure our emissions performance, ensuring comprehensive tracking of our emissions using internal sustainability software.
