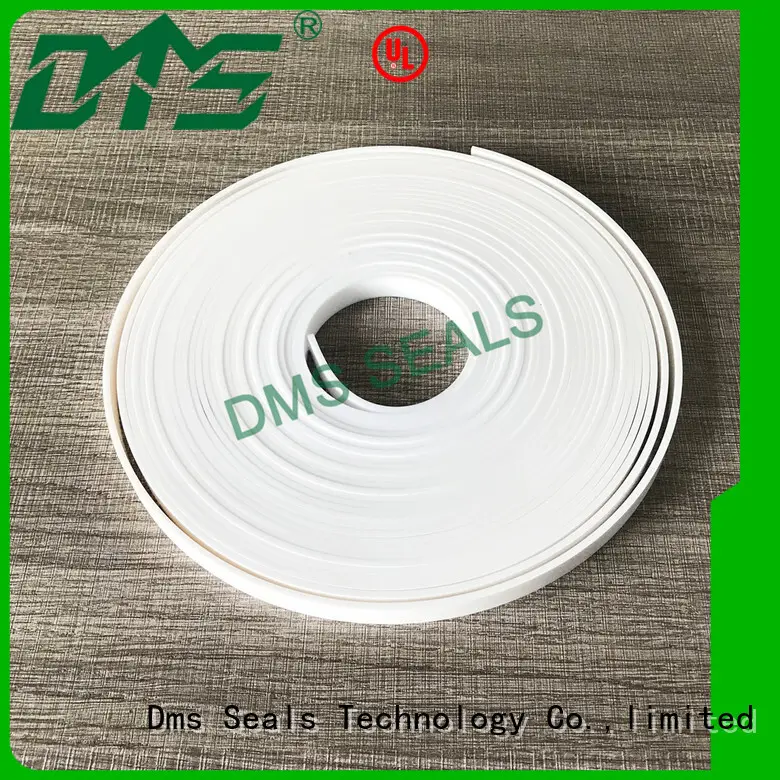

DMS Seal Manufacturer ptfe oil seal manufacturer with nbr or fkm o ring as the guide sleeve

Company Advantages
1. DMS Seal Manufacturer rubber o rings manufacturers is made by highly skilled and experienced professionals using the optimum quality raw materials.
2. DMS Seal Manufacturer oil seal manufacturer is manufactured by our workers with sophisticated skills in a short production period.
3. All raw materials used to manufactured DMS Seal Manufacturer oil seal manufacturer have to go through stringent quality checking procedure.
4. DMS Seal Manufacturer rubber o rings manufacturers is manufactured by our workers with a good understanding of the high quality raw materials.
5. The product features a stronger base. The metal material is used on the outside and glass is used to insulate the inside of the base to withstand impacts.
6. The product is anti-fading. Even exposed to the sunlight for several months in the hot summer, it can retain its luster and glossy.
7. The product has the advantages of fire resistance. It has the ability to withstand against fire without changing its shape and other properties.
8. The product has earned good reputation and trust from clients at home and abroad.
9. This product is currently very popular in the market and is being adopted by more and more people.
10. The product, with so many advantages, enjoys a wide market application.

1. Installation Recommendation

2. Application and properties

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.

3. Standard materials

White virgin PTFE

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
Custom as Required	—	-55℃ +225℃	15 m/s	hydraulic oil, emulsion, and water

Piston:  L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

Rod:    L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ]  C = 3.14  k=0.8

5. Length of whole roll

Thickness	1	1.5	2	2.5	3	4	5	6
Length of whole roll ( m )	55	35	27	22	18	13	10	8

Above data only for reference, it shall follow the actual products.

Standard groove width

Groove width L2

2.5

3.2

4

4.2

5.6

6

6.3

8.1

9.7

10

12

15

18

20

25

30

40

50

The products of various width could be provided.

Standard thickness of product

Thickness W

1

1.5

1.55

2

2.5

3

4

5

6

The products of various thickness could be provided.

Company Features
1. Established several years ago, Dms Seals Technology Co.,limited has been operating an efficient business in rubber o rings manufacturers design, manufacturing, and supply. Dms Seals Technology Co.,limited is an outstanding resource in terms of budget, schedule and quality. We have the experience and resources to meet the most demanding specifications for rubber seal manufacturers . Dms Seals Technology Co.,limited has been putting enormous efforts on the design and production of oil seal ring . We have made extraordinary achievements in the industry. As a reliable manufacturer and market leader in China, Dms Seals Technology Co.,limited provides reliable services for rubber seal design production. Dms Seals Technology Co.,limited has been established for many years, and has gradually grown into a leader in China's rubber seal ring manufacturers manufacturing industry.
2. Dms Seals Technology Co.,limited has set up professional R&D base to provide technical support. That Dms Seals Technology Co.,limited utilizes shaft oil seals technology guarantees a better quality of oil seal manufacturer. There are many experienced managing talents and professional technician with strong ability of bearing element developing in Dms Seals Technology Co.,limited. Dms Seals Technology Co.,limited's R&D capability has highlighted through oil seal manufacturer. Dms Seals Technology Co.,limited owns a team of experienced managerial personnel, professional R&D group and skilled technicians.
3. High quality is consistently set first in Dms Seals Technology Co.,limited. Call! Dms Seals Technology Co.,limited aims to create a famous brand with high efficiency, high quality and excellent service. Call! Dms Seals Technology Co.,limited is committed to becoming the most reliable rubber o rings manufacturers supplier. Call! Dms Seals Technology Co.,limited can guarantee high quality oil seal manufacturer and professional services. Call! DMS Seal Manufacturer Sincerely hope to establish high-quality long-term cooperation relationship with all customers. Call!

DMS Seal Manufacturer ptfe oil seal manufacturer with nbr or fkm o ring as the guide sleeve

oil seal manufacturer

Type:
