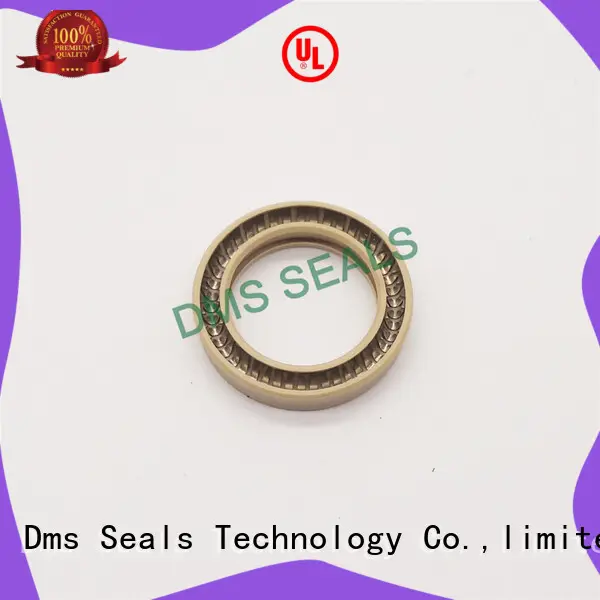

DMS Seal Manufacturer ptfe spring energized seals online for reciprocating piston rod or piston single acting seal

Company Advantages
1. DMS Seal Manufacturer spring energized seals is made from materials with optimal performance and reliability which are sourced from suppliers provide the highest levels of quality and security.
2. DMS Seal Manufacturer spring energized seals is developed with special consideration. Its solar energy utilization is fully made use of by adjusting its transforming capacity and compatibility with the power grid.
3. Adopting cutting-edge technologies, DMS Seal Manufacturer spring energized seals is manufactured to meet the Energy Labelling Scheme. It has been recognized by the Mandatory Energy Efficiency Labelling Scheme (MEELS) and Voluntary Energy Efficiency Labelling Scheme (VEELS).
4. This product has a long service life. Its current collectors are well protected to prevent any liquid corrosion or rust.
5. The product is impervious to impact and vibration. It has a robust housing to house the electric parts, so as to prevent the parts from the vibration during operation.
6. This product has excellent vibration resistance. It is not affected by the vibration, deflection or other movements of the rotating shaft.
7. Dms Seals Technology Co.,limited has a team of experienced and skilled experts.
8. Research & Development are the core competition of Dms Seals Technology Co.,limited.
9. DMS Seal Manufacturer is equipped with customer service team who are in charge of providing high-end service.
10. spring energized seals has passed ISO 9001 and spring energized seals .
11. Dms Seals Technology Co.,limited has gained all relative certificates for spring energized seals , such as spring energized seals .

1. Application and properties

Suitable for reciprocating piston rod or piston single acting seal, the working pressure has a wide range of adaptability, and the pressure capacity can be enhanced by increasing the tail length size or increasing the check ring.

Small friction coefficient, The contact pressure between the mating surface and the mating surface is low, and the friction between the work face and the mating surface is the smallest in all seal types. with or without lubrication can work, wear resistance, long service life.

The working medium of the sealing sleeve has wide adaptability, and the other chemicals are not reacted except soluble alkali metal, high temperature fluorine gas and three fluoride chloride.

The working temperature range is wide, and can be used for -200 ℃ to +250 ℃.

It can be used for very high speed, very low speed, micro-stroke and other special conditions.

Suitable for aviation, military and industrial sealing groove size, The standard installation groove is the same size as the standard O ring, and the size is small. It can be designed as non standard parts to meet the sealing requirements of any size groove. The groove is open or semi open.

It can be used in rotary sealing. It can adapt to large eccentricity and beating.

2. Standard materials

Sealing sleeve: PTFE

Spring: Stainless steel 304, 316

3. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range ℃	Speed	Medium
3 - 1600mm	0 - 20MPa	-200 ~ +250	5 m/s	High and low temperature oil and water and other fluids.

4. Installation Sizes

Back pressure surfaceR1=0.1 ~ 0.2, tank bottom R2=0.3 ~ 0.5, Import lengthC=(0.7 ~ 1.0)L.

Rod Diameter	Groove Width	Groove Diameter	Radial Clearance
d	L	D	e
2 ~ 10	2.5	d+3.0	0.05
10 ~ 22	3.2	d+4.0	0.065
22 ~ 52	4.7	d+6.0	0.075
48 ~ 150	7.5	d+10.0	0.09
150 ~ 400	11.0	d+15.0	0.10

5. Matters needing attention

Ⅰ, The installation groove must be open or semi open, and it is recommended to be open.

Ⅱ, If the seal is for the rotating shaft, it is recommended that the surface hardness of the shaft should be no less than HRC40.

Ⅲ，Considering the adaptability of the working medium, the adaptability of the jacket and spring should be taken into account.

Ⅳ, It is better to install an anti fouling ring or a antifouling guide ring in the notch direction in front of the seal.
