DMS Seal Manufacturer pu cup seals for hydraulic cylinders Suppliers for injection molding machines
-
v s
1. The offered DMS Seal Manufacturer cup seals for hydraulic cylinders is produced by using the best quality raw material and advanced technology, in line with set industry norms.
2. DMS Seal Manufacturer cup seals for hydraulic cylinders is standardizationally produced.
3. The whole production process of DMS Seal Manufacturer cup seals for hydraulic cylinders is conducted by workers who are proficient in the production techniques.
4. The production of DMS Seal Manufacturer is line with the international production standards.
5. DMS Seal Manufacturer is manufactured using the optimum quality raw material and advanced technology.
6. The product is hypoallergenic. The key ingredients are tested to be free of allergens, which has been proved by the professional dermatologists.
7. The product is considered hypoallergenic. Containing only a little nickel, which is not enough to do harms to the human body.
8. The external surface of this product has enough brightness and smoothness. A gel coat is applied to the mold surface to achieve optimum surface finishes.
9. This product has proper air permeability. Its fabrics are made of permeable substances that easily block out the moisture.
10. Low energy consumption is one of the biggest points of this product. The dominated frequency has been optimized to the minimum value.
11. People say the product can eliminate excessive wear through accurate installation, which means it brings stability and extends the life of the equipment.
12. By using this product, people can update the look and enhance the aesthetic of the space in their room.
13. This product helps relieve people's working stress. Because it can do all the physical labor that people were once forced to do by hand.
Rod Diameter | Groove Diameter | Groove Width | Bore Diameter | Radius | Step Width |
d f8/h9 | D H9 | L+0.2 | D1±0.1 | R | a |
20-39.9 | d+7.6 | 4.2 | d+1.0 | 0.4 | 3.0 |
40-69.9 | d+8.8 | 6.3 | d+1.5 | 1.0 | 3.0 |
70-139.9 | d+12.2 | 8.1 | d+2.0 | 1.2 | 4.0 |
140-399.9 | d+16.0 | 11.5 | d+2.0 | 2.0 | 5.0 |
400-649.9 | d+24.0 | 15.5 | d+2.5 | 2.5 | 8.0 |
650-999.9 | d+27.3 | 18.0 | d+2.5 | 2.5 | 10.0 |
Application and properties

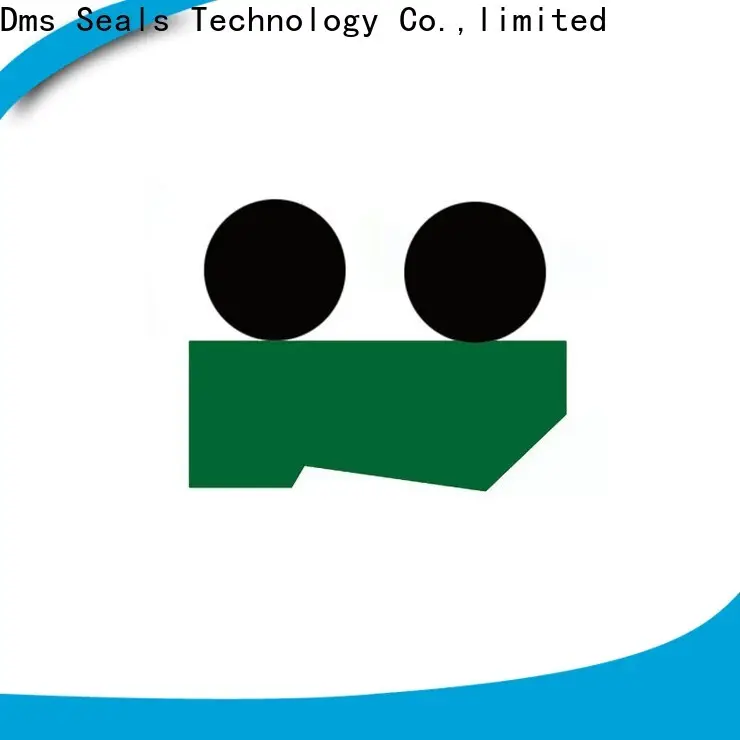

For a wide range of applications, such as agricultural machinery, injection molding machines, forklifts, cranes and so on. Consisting of a sealing ring and two O-Rings for improving overall tightness, low friction, non stick slip phenomenon, good adjustment and positioning ability, high reliability, accepting the full load of work pressure in a short time.
Standard materials
Sealing ring: filled PTFE / PU
O-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | -36℃+200℃ | 5 m/s | hydraulic oil, flame retardant liquid, water and others | |
d f8 | D H9 | H | L+0.2 | Order No. |
20 | 27.6 | 4.0 | 4.2 | DPT1-20*27.6*4.2 |
30 | 37.6 | 4.0 | 4.2 | DPT1-30*37.6*4.2 |
36 | 43.6 | 4.0 | 4.2 | DPT1-36*43.6*4.2 |
45 | 53.8 | 6.0 | 6.3 | DPT1-45*53.8*6.3 |
56 | 64.8 | 6.0 | 6.3 | DPT1-56*64.8*6.3 |
65 | 73.8 | 6.0 | 6.3 | DPT1-65*73.8*6.3 |
80 | 92.2 | 7.7 | 8.1 | DPT1-80*92.2*8.1 |
95 | 107.2 | 7.7 | 8.1 | DPT1-95*107*8.1 |
110 | 122.2 | 7.7 | 8.1 | DPT1-110*122*8.1 |
Company Features
1. With high-end technology to produce exquisite products, DMS Seal Manufacturer has won wide recognition from customers. Dms Seals Technology Co.,limited is an internationally competitive cup seals for hydraulic cylinders manufacturer. Dms Seals Technology Co.,limited is a professional producer for manufacturing u cup rod seal . With a wealth of experience, Dms Seals Technology Co.,limited has gained a larger market share in hydraulic rod seal installation tool .
2. Dms Seals Technology Co.,limited has deep technical potential and long-lasting pursuit of superior cylinder rod wiper products. Performed by leading equipment, cylinder rod seal is of high performance. Dms Seals Technology Co.,limited has strong technical strength, with strong new product R&D capability and perfect testing method.
3. Dms Seals Technology Co.,limited endeavors to be a responsible and respectable company to its employees, clients and shareholders. Please contact. Dms Seals Technology Co.,limited will provide our customers with best service. Please contact. We firmly believe that we will be your most worthy hydraulic u seal business partner! Please contact. Striving for the realizing the great works of is our ultimate goal. Please contact. To enhance sustainable development capabilities, DMS Seal Manufacturer insists on the tenet of focusing on the innovation of . Please contact.
