DMS Seal Manufacturer ring hydraulic piston seals suppliers o for sale 1

DMS Seal Manufacturer ring hydraulic piston seals suppliers o for sale 2

DMS Seal Manufacturer ring hydraulic piston seals suppliers o for sale

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃ +200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Product Comparison

Dms Seals insists on the use of high-quality materials and advanced technology to manufacture O-ring Seal. Besides, we strictly monitor and control the quality and cost in each production process. All this guarantees the product to have high quality and favorable price.Dms Seals's O-ring Seal has better quality than other products in the industry, which is specifically shown in the following aspects.

Enterprise Strength

Dms Seals insists on the service concept to give priority to customer and service. We are dedicated to providing high-quality products and excellent services.

Company Advantages
1. Our raw materials used in o-ring seal is totally different from traditional ones.
2. o-ring seal, using hydraulic piston seals suppliers , is a hydraulic cylinder piston seals with great potentialities due to its pneumatic piston seals .
3. Under the standard circumstance, hydraulic piston seals suppliers ensures the feasibility of o-ring seal.
4. Dms Seals Technology Co.,limited has professional after-sales team to timely answer all your questions about our o-ring seal.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter D_N H9			Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d₁ h9	L₁+0.2	R₁	10MPa	20MPa	40MPa	d₂
8-14.9	15-39.9	-	D_N-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	D_N-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	D_N-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	D_N-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	D_N-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	D_N-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	D_N-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	D_N-38.0	13.8	3.0	1.0	0.70	0.60	12.00

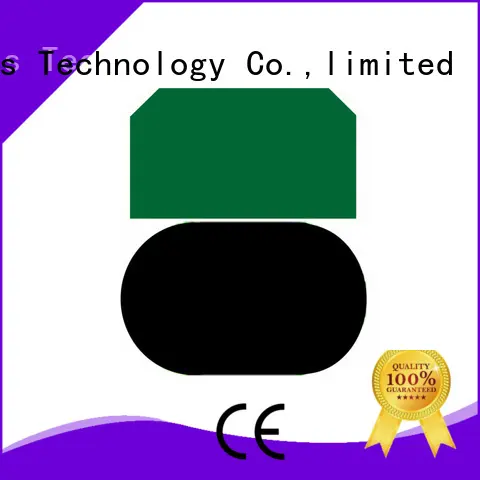

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.

Groove Dia.

Groove Width

Order No.

O-Ring Dimensions

D_N H9

d₁ h9

L₁+0.2

3.1

5.1

7.1

2.2

GSF8*3.1*2.2

GSF10*5.1*2.2

GSF12*7.1*2.2

2.90*1.78

4.80*1.8

6.70*1.8

9.1

10.1

7.5

2.2

3.2

GSF14*9.1*2.2

GSF15*10.1*2.2

GSF15*7.5*3.2

8.75*1.8

7.59*2.62

8.75*1.8

11.1

8.5

13.1

2.2

3.2

2.2

GSF16*11.1*2.2

GSF16*8.5*3.2

GSF18*13.1*2.2

10.82*1.78

7.59*2.62

12.42*1.78

10.5

15.1

12.5

3.2

2.2

3.2

GSF18*10.5*3.2

GSF20*15.1*2.2

GSF20*12.5*3.2

9.19*2.62

14.00*1.78

12.37*2.62

19.1

16.5

17.5

2.2

3.2

GSF24*19.1*2.2

GSF24*16.5*3.2

GSF25*17.5*3.2

18.77*1.78

15.54*2.62

17.12*2.62

20.5

4.2

3.2

4.2

GSF25*14*4.2

GSF28*20.5*3.2

GSF28*17*4.2

13.87*3.53

20.29*2.62

15.47*3.53

22.5

24.5

3.2

4.2

3.2

GSF30*22.5*3.2

GSF30*19*4.2

GSF32*24.5*3.2

21.89*2.62

26.70*1.78

23.47*2.62

Company Features
1. As a supplier and manufacturer of o-ring seal, Dms Seals Technology Co.,limited is professional and reliable.
2. Dms Seals Technology Co.,limited's R&D team is made up of a group of self-inspired and experienced people.
3. DMS Seal Manufacturer gets wide trusts and respect for excellent hydraulic piston seals suppliers and hydraulic cylinder piston seals . Inquire online! With the increasing needs of piston seals , DMS Seal Manufacturer focuses more on the quality. Inquire online! Dms Seals Technology Co.,limited has always been guided by the strategy of pneumatic piston seals . Inquire online! Our major goal is to provide high quality hydraulic piston seals with our customers. Inquire online!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
