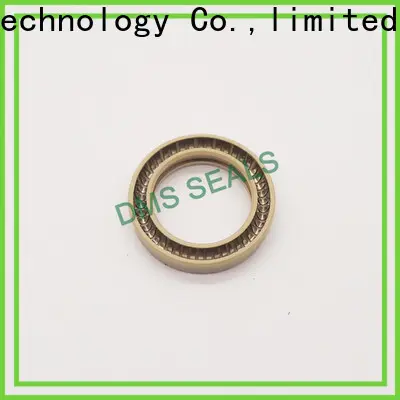

DMS Seal Manufacturer rod end seals Suppliers for reciprocating piston rod or piston single acting seal

Company Advantages
1. DMS Seal Manufacturer adopts modern production model.
2. rod end seals can be said to be unique in design.
3. Dms Seals Technology Co.,limited manufactures rod end seals with the highest quality of raw materials, including .
4. is core competitiveness of rod end seals in its design.
5. rod end seals is regarded as one of the most promising with its properties.
6. The principle of of rod end seals is proposed for Dms Seals Technology Co.,limited to select materials.
7. rod end seals are recognized for their peculiarities for .
8. In view of the properties such as , rod end seals are becoming increasingly widely applied in the fields.
9. rod end seals is of , thus it has abroad applying foreground.
10. This product is more suitable for popularization and application.
11. We have found that this product has a tendency to be more applicable.
12. rod end seals is widely appraised for its stable quality.
13. While purchasing Dms Seals Technology Co.,limited's products, we offer a number of free consultation programs and design services.

1. Application and properties

Suitable for reciprocating piston rod or piston single acting seal, the working pressure has a wide range of adaptability, and the pressure capacity can be enhanced by increasing the tail length size or increasing the check ring.

Small friction coefficient, The contact pressure between the mating surface and the mating surface is low, and the friction between the work face and the mating surface is the smallest in all seal types. with or without lubrication can work, wear resistance, long service life.

The working medium of the sealing sleeve has wide adaptability, and the other chemicals are not reacted except soluble alkali metal, high temperature fluorine gas and three fluoride chloride.

The working temperature range is wide, and can be used for -200 ℃ to +250 ℃.

It can be used for very high speed, very low speed, micro-stroke and other special conditions.

Suitable for aviation, military and industrial sealing groove size, The standard installation groove is the same size as the standard O ring, and the size is small. It can be designed as non standard parts to meet the sealing requirements of any size groove. The groove is open or semi open.

It can be used in rotary sealing. It can adapt to large eccentricity and beating.

2. Standard materials

Sealing sleeve: PTFE

Spring: Stainless steel 304, 316

3. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range ℃	Speed	Medium
3 - 1600mm	0 - 20MPa	-200 ~ +250	5 m/s	High and low temperature oil and water and other fluids.

4. Installation Sizes

Back pressure surfaceR1=0.1 ~ 0.2, tank bottom R2=0.3 ~ 0.5, Import lengthC=(0.7 ~ 1.0)L.

Rod Diameter	Groove Width	Groove Diameter	Radial Clearance
d	L	D	e
2 ~ 10	2.5	d+3.0	0.05
10 ~ 22	3.2	d+4.0	0.065
22 ~ 52	4.7	d+6.0	0.075
48 ~ 150	7.5	d+10.0	0.09
150 ~ 400	11.0	d+15.0	0.10

5. Matters needing attention

Ⅰ, The installation groove must be open or semi open, and it is recommended to be open.

Ⅱ, If the seal is for the rotating shaft, it is recommended that the surface hardness of the shaft should be no less than HRC40.

Ⅲ，Considering the adaptability of the working medium, the adaptability of the jacket and spring should be taken into account.

Ⅳ, It is better to install an anti fouling ring or a antifouling guide ring in the notch direction in front of the seal.

Company Features
1. Dms Seals Technology Co.,limited has quickly emerged in the rod end seals industry. Dms Seals Technology Co.,limited becomes well-known globally by its high quality springseal inc . With geography and technology advantages, the development of Dms Seals Technology Co.,limited is steadily advancing. Dms Seals Technology Co.,limited has been devoted to R&D and production of mechanical seal brands for many years.
2. Up until now, Dms Seals Technology Co.,limited has possessed an outstanding systematic ability to develop new pusher mechanical seal products. spring energized seals is manufactured by our proficient technicians. Dms Seals Technology Co.,limited focuses on improvement of technology and R&D. Dms Seals Technology Co.,limited is equipped with a professional technician to provide technical support. In order to achieve technology innovation, Dms Seals Technology Co.,limited set up its own R&D base.
3. Stressing the importance of customer service quality will contribute to the development of DMS Seal Manufacturer. Welcome to visit our factory! For the better development of DMS Seal Manufacturer, necessary enterprise culture will be more necessary. Welcome to visit our factory! Dms Seals Technology Co.,limited's professional after-sale services team will provide you perfect technical support. Welcome to visit our factory! Dms Seals Technology Co.,limited will continue to strive to introduce new products and strive to be in the leading position in the industry. Welcome to visit our factory!
