DMS Seal Manufacturer rod seal installation manufacturer for sale 1

DMS Seal Manufacturer rod seal installation manufacturer for sale 2

DMS Seal Manufacturer rod seal installation manufacturer for sale

Diameter Range:

3-1600mm

Pressure Range:

0-45MPa

Temperature Range:

-30℃+200℃

Speed:

1m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Product Details

With the pursuit of perfection, Dms Seals exerts ourselves for well-organized production and high-quality O-ring Seal.Dms Seals's O-ring Seal is commonly praised in the market due to good materials, fine workmanship, reliable quality, and favorable price.

Company Advantages
1. Developed from industrial raw material the offered rod seal installation features clean appearance.
2. DMS Seal Manufacturer is manufactured in accordance with set quality norms.
3. The raw materials of DMS Seal Manufacturer rod seal installation are purchased from reliable suppliers and delivered on time.
4. DMS Seal Manufacturer rod seal installation is manufactured in conformity with the principle of lean production.
5. The product has been rigorously inspected and tested and proved to be of long-lasting performance and good durability.
6. The product has been tested on various quality parameters and been approved to be excellent in many respects such as performance, durability, etc.
7. A good quality control system and management system ensure the quality of the product.
8. The product has been extensively used in the global market because of its remarkable advantages.
9. According to feedback, the product has achieved high customer satisfaction.
10. Due to these features, this product is used in various industrial applications.

Installation Recommendation

undefined

Application and properties

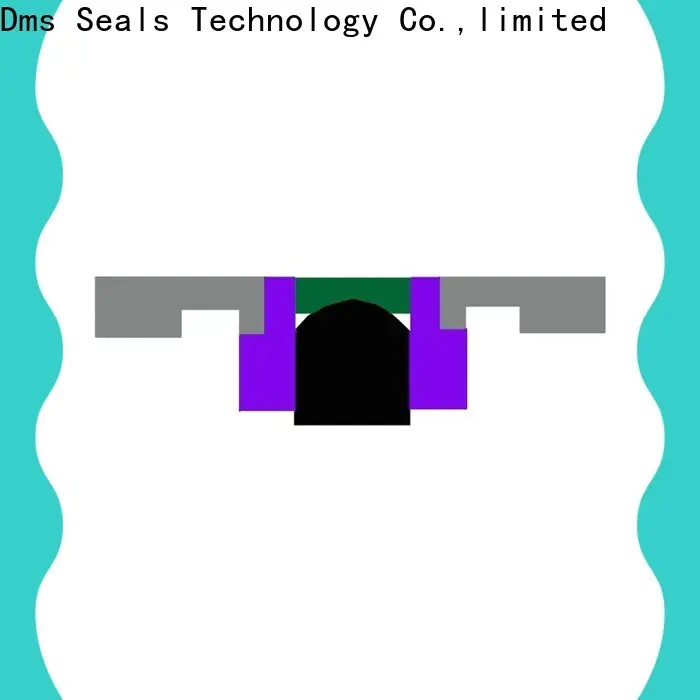

Apply to cylinder piston, consisting of a seal ring, an O-Ring, a pair of retaining rings and a pair of guide sleeves. The seal ring and cylinder bore conforming to be a symmetric section to achieve the sealing performance, with double acting sealing performance.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: filled PTFE / PA

Guide ring: filled PTFE / PA

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-45MPa	-30℃+200℃	1 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

D	d	b	d2	d3	a	c	f	e	Order No.
40 45 50	26 31 34	32 32 39	32 37 42	36 41 46	3.5 3 3	15.5 15.5 20.5	8.25 8.25 9.25	7 7 7	DDKK402632 DDKK453132 DDKK503439
56 60 63	40 44 47	39 39 39	48 52 55	52 56 59	3 3 3	20.5 20.5 20.5	9.25 9.25 9.25	7 7 7	DDKK564039 DDKK604439 DDKK634739
65 70 75	49 54 59	39 39 39	57 62 67	61 66 71	3 3 3	20.5 20.5 20.5	9.25 9.25 9.25	7 7 7	DDKK654939 DDKK705439 DDKK755939
80 85 90	62 67 72	43 43 43	72 77 82	76 81 86	3 3 3	22.5 22.5 22.5	10.25 10.25 10.25	7 7 7	DDKK806243 DDKK856743 DDKK907243
95 100 105	77 82 87	43 43 43	87 92 97	91 96 101	3 3 3	22.5 22.5 22.5	10.25 10.25 10.25	7 7 10	DDKK957743 DDKK1008243 DDKK1058743
110 115 120	92 97 102	43 43 43	102 107 112	106 111 116	3 3 3	22.5 22.5 22.5	10.25 10.25 10.25	10 10 10	DDKK1109243 DDKK1159743 DDKK12010243
125 130 140	103 108 118	53 53 53	115 120 130	121 126 136	4 4 4	26.5 26.5 26.5	13.25 13.25 13.25	10 10 10	DDKK12510353 DDKK13010853 DDKK14011853
150 160 165	128 138 143	53 53 57	140 150 155	146 156 161	4 4 6	26.5 26.5 26.5	13.25 13.25 15.25	10 10 10	DDKK15012853 DDKK16013853 DDKK16514357
170 180 190	148 158 165	57 57 64	160 170 180	166 176 186	6 6 4.5	26.5 26.5 31.5	15.25 15.25 16.25	10 10 10	DDKK17014857 DDKK18015857 DDKK19016564
195 200 210	170 175 185	64 64 71	185 190 200	191 196 206	4.5 4.5 8	31.5 31.5 31.5	16.25 16.25 19.75	10 10 12	DDKK19517064 DDKK20017564 DDKK21018571

Installation Dimensions

Company Features
1. With a heritage of excellence for years, Dms Seals Technology Co.,limited has established an unrivaled reputation for the production of high-quality . Dms Seals Technology Co.,limited is widely recognized in the industry for excellence in manufacturing , which leads to rapid growth. Established years ago, Dms Seals Technology Co.,limited is a manufacturing company of with strong expertise and deep industry knowledge.
2. Our factory has state-of-the-art manufacturing facilities that introduced from various developed countries. They play a significant role in supporting daily production demands, from product developing stage to the packaging stage. The company is endowed with an excellent product management team. They often come up with effective selling solutions by working together and brainstorming ideas. We have already invested in a series of advanced manufacturing facilities. With the aid of these highly efficient facilities, we are able to provide products for our customers by complying with the highest standards. The factory creates a system of industrial and commercial standards for the production and provides specifications for products, services, and systems. In recent years, our company's businesses have shown a steadily rising trend with yearly increasing profits, mostly due to the increased revenue in overseas markets.
3. DMS Seal Manufacturer can provide far more value for you than other brands. Get more info! DMS Seal Manufacturer has a great plan to become an influential supplier. Get more info! In order to become a leader in the industry, DMS Seal Manufacturer has been doing its best to serve customers. Get more info!

DMS Seal Manufacturer rod seal installation manufacturer for sale

rod seal installation

Type:

DMS Seal Manufacturer rod seal installation manufacturer for sale 6

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
