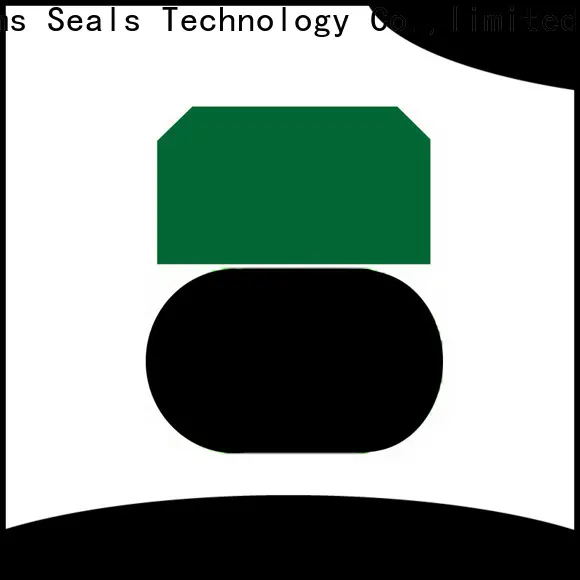

DMS Seal Manufacturer rod seals or piston seal manufacturer for sale

Company Advantages
1. The use of high-quality materials and the advanced production technology provides DMS Seal Manufacturer with a touch of class and aesthetics.
2. Cost-effective raw materials: the raw materials of DMS Seal Manufacturer are selected at the lowest prices, which have unique attributes that are suitable for the production of the product.
3. DMS Seal Manufacturer rod seals or piston seal is scientifically designed based on the production standards.
4. DMS Seal Manufacturer is created a unique on a scientific and reasonable basis.
5. It is put to the market with the best quality through inspection.
6. Owning to our new advanced technology, Our rod seals or piston seal is in higher performance.
7. It is 100% qualified, free from any deficiencies or defects.
8. It is made under normal manufacturing tolerances and quality control procedures.
9. The design and process ensure that the product is durable, new and beautiful. It is soft, very durable and naturally antibacterial.
10. In addition to protecting users' high-quality sleep, this product also adds an instant splash of color and pattern to the bed, changing the look of the room.
11. The greatest advantage of this product lies in its enduring look and appeal. Its beautiful texture brings warmth and character to any room.
12. The design and craftsmanship ensure this product is long lasting as well as original and beautiful. And it is soft, very durable, and naturally antimicrobial.
13. With this product in place, business owners will likely see a decrease in workplace accidents and workman’s compensation claims.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. Dms Seals Technology Co.,limited has been widely accepted by overseas customers as we begin to provide high quality in the international market. Dms Seals Technology Co.,limited is a leading domestic manufacturing enterprise of . For years, Dms Seals Technology Co.,limited has specialized in designing and manufacturing quality and reliable . We're advancing the future of our industry through innovation and continuous improvement. Over years of development, Dms Seals Technology Co.,limited is committed to becoming one of the leading companies in the industry, providing exceptional and services for our customers.
2. The standard nature of these processes permits us to fabricate . All our rod seals or piston seal have conducted strict tests. We have a top R&D team to keep improving quality and design for our forklift hydraulic cylinder seals . We have the capability of researching and developing state-of-the-art technologies of polyurethane hydraulic seals .
3. Dms Seals Technology Co.,limited is able to transform customers’ expectations into successful experiences. Please contact. Our ambition is to become the leading hydraulic packing kits manufacturer. Please contact. Dms Seals Technology Co.,limited has a unique corporate advantage with its seal pro pistons . Please contact. DMS Seal Manufacturer will develop horizontally to meet the needs of foreign trade market. Please contact. DMS Seal Manufacturer has been following the national standards to provide the best service and air cylinder piston seals for customers. Please contact.

DMS Seal Manufacturer rod seals or piston seal manufacturer for sale

rod seals or piston seal

Type:
