DMS Seal Manufacturer rubber piston seals with ptfe nbr and pom for pneumatic equipment 1

DMS Seal Manufacturer rubber piston seals with ptfe nbr and pom for pneumatic equipment 2

DMS Seal Manufacturer rubber piston seals with ptfe nbr and pom for pneumatic equipment

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Product Details

With the pursuit of perfection, Dms Seals exerts ourselves for well-organized production and high-quality O-ring Seal.Dms Seals's O-ring Seal is commonly praised in the market due to good materials, fine workmanship, reliable quality, and favorable price.

Product Comparison

Dms Seals has the ability to meet different needs. O-ring Seal is available in multiple types and specifications. The quality is reliable and the price is reasonable.Compared with other same kind of products in the market, Dms Seals's O-ring Seal is equipped with the following outstanding advantages.

Company Advantages
1. DMS Seal Manufacturer rubber piston seals is manufactured by our competent workforce utilizing the quality tested materials.
2. Our DMS Seal Manufacturer o-ring seal can be produced in various design styles and specifications.
3. DMS Seal Manufacturer o-ring seal adopts high precision equipment to meet customers' requirements.
4. This o-ring seal is especially practical for rubber piston seals.
5. Propertiesrubber piston seals can be seen in this o-ring seal.
6. rubber piston seals, with features like hydraulic cylinder piston seals , is kind of ideal o-ring seal.
7. Our quality products have a large reputation in the market.
8. With excellent technical team and high quality o-ring seal, Dms Seals Technology Co.,limited provides customers with high quality service.
9. The product is rather reliable and has a wide range of applications.
10. DMS Seal Manufacturer is more popular for its greatest o-ring seal and amiable and friendly piston seals .
11. The product is extensively used and promoted in the field.

Installation Recommendation

undefined

Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

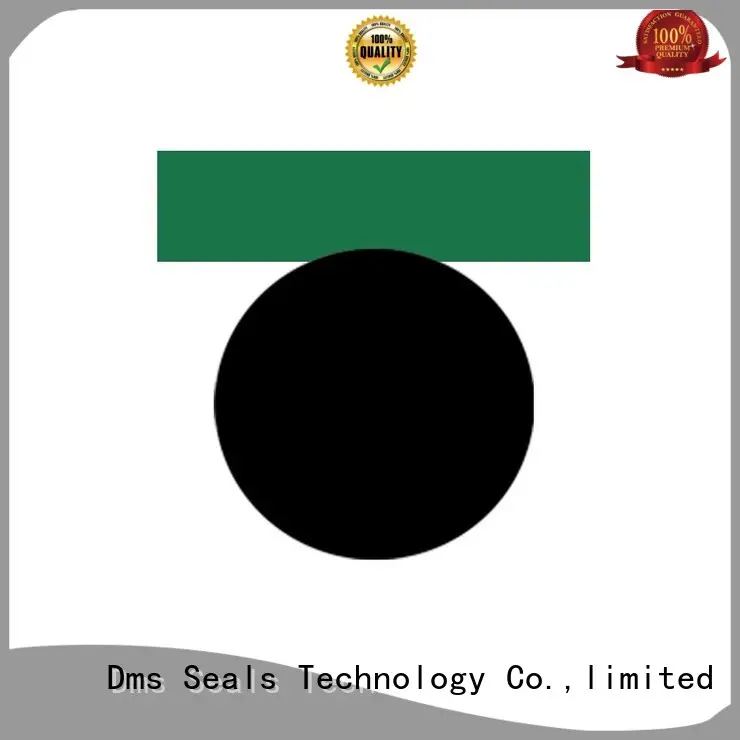

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

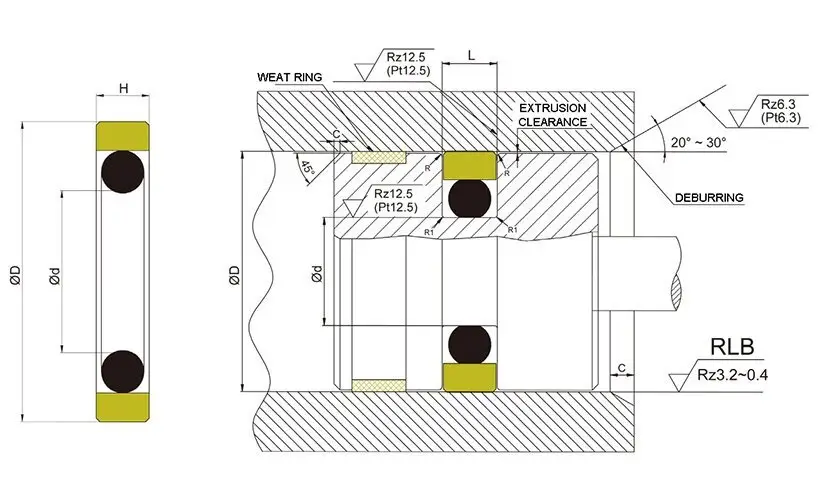

Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L +0.2	Order No.
D	d	H	L +0.2	Order No.
20 25 30	14 19 21.5	3 3 3.8	3.2 3.2 4	DPO20143.2 DPO25193.2 DPO3021.54
31.5 32 35	23 23.5 26.5	3.8 3.8 3.8	4 4 4	DPO31.5234 DPO3223.54 DPO3526.54
35.5 40 45	27 31.5 36.5	3.8 3.8 3.8	4 4 4	DPO35.5274 DPO4031.54 DPO4536.54
50 53 55	41.5 44.5 46.5	3.8 3.8 3.8	4 4 4	DPO5041.54 DPO5344.54 DPO5546.54
56 60 63	47.5 51.5 49	3.8 3.8 6.3	4 4 6.5	DPO5647.54 DPO6051.54 DPO63496.5
65 70 71	51 56 57	6.3 6.3 6.3	6.5 6.5 6.5	DPO65516.5 DPO70566.5 DPO71576.5
75 80 85	61 66 71	6.3 6.3 6.3	6.5 6.5 6.5	DPO75616.5 DPO80666.5 DPO85716.5
90 95 100	76 81 86	6.3 6.3 6.3	6.5 6.5 6.5	DPO90766.5 DPO95816.5 DPO100866.5
105 110 112	91 96 98	6.3 6.3 6.3	6.5 6.5 6.5	DPO105916.5 DPO110966.5 DPO112986.5
115 120 125	101 106 111	6.3 6.3 6.3	6.5 6.5 6.5	DPO1151016.5 DPO1201066.5 DPO1251116.5
130 135 140	116 121 126	6.3 6.3 6.3	6.5 6.5 6.5	DPO1301166.5 DPO1351216.5 DPO1401266.5
150 160 170	136 146 150	6.3 6.3 9.8	6.5 6.5 10.0	DPO1501366.5 DPO1601466.5 DPO17015010
180 190 200	160 170 180	9.8 9.8 9.8	10.0 10.0 10.0	DPO18016010 DPO19017010 DPO20018010

Installation Dimensions

Company Features
1. o-ring seal helps Dms Seals Technology Co.,limited win good reputation at home and abroad. Our piston seals has exported to many countries and received many positive feedbacks. The rich experience and good reputation bring Dms Seals Technology Co.,limited a great success for hydraulic piston seals . All our o-ring seal are cutting-edge in this industry.
2. The o-ring seal is a leader in this similar market. Dms Seals Technology Co.,limited is outfitted with a complete set of sterile equipment. In order to occupy an important position, DMS Seal Manufacturer has been making o-ring seal using the most advanced technology.
3. The DMS Seal Manufacturer brand's focus is on continually optimizing the services. Ask online! With ambition, DMS Seal Manufacturer decided to become the leading rubber piston seals manufacturer. Ask online! Dms Seals Technology Co.,limited actively shapes the current and future markets of o-ring seal. Ask online! Leading the hydraulic cylinder piston seals industry has always been the goal of DMS Seal Manufacturer. Ask online! DMS Seal Manufacturer always put our customers the first. Ask online!

DMS Seal Manufacturer rubber piston seals with ptfe nbr and pom for pneumatic equipment

o-ring seal

Type:

DMS Seal Manufacturer-DPO - PTFE Hydraulic Piston Seal with NBRFKM O-Ring-2

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
