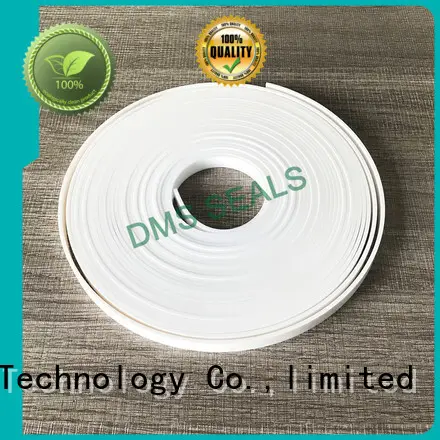

DMS Seal Manufacturer rubber seal design guide strip as the guide sleeve

Company Advantages
1. Our design for rubber seal design is very fashionable and special.
2. The material and design Dms Seals Technology Co.,limited adopted highly improve the performance of rubber seal design .
3. Through the analysis of the structure and materials, rubber seal design with low cost and long service life has been developed.
4. The product has no foul smell. During the production, any harsh chemicals are forbidden to be used, such as benzene or harmful VOC.
5. This product is hypoallergenic enough. The dyes used on fabrics are treated to contain no harmful chemicals that would cause any skin irritants.
6. It has a fine hardness. It has good cracking proof capacity and is not easy to deform due to the cold stamping process during production.
7. This product can absorb shock from walking or running and brings comfort or arch support, featuring excellent cushioning.
8. This product does not fade over time and has no burrs and flaking off problems, which are facts that many consumers agree on.
9. The product effectively provides people with better water quality through the reduction of some harmful containments such as bacteria and heavy metal.
10. The detailed beauty of stoneware with a translucent glaze over an embossed and debossed pattern make it ideal for any formal occasions.

1. Installation Recommendation

2. Application and properties

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.

3. Standard materials

White virgin PTFE

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
Custom as Required	—	-55℃ +225℃	15 m/s	hydraulic oil, emulsion, and water

Piston:  L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

Rod:    L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ]  C = 3.14  k=0.8

5. Length of whole roll

Thickness	1	1.5	2	2.5	3	4	5	6
Length of whole roll ( m )	55	35	27	22	18	13	10	8

Above data only for reference, it shall follow the actual products.

Standard groove width

Groove width L2

2.5

3.2

4

4.2

5.6

6

6.3

8.1

9.7

10

12

15

18

20

25

30

40

50

The products of various width could be provided.

Standard thickness of product

Thickness W

1

1.5

1.55

2

2.5

3

4

5

6

The products of various thickness could be provided.
