DMS Seal Manufacturer scraper seals with nbr or fkm o ring for injection molding machines
1. The design of scraper seals has many virtues such as hydraulic wiper seals and so on.
2. hydraulic wiper seals material provides scraper seals with long service life.
3. Many of scraper seals come from world-class designers.
4. The performance of this product is superior to other similar products on the market.
5. To assure its quality, the product is manufactured under the supervision of our experienced QA team.
6. The product is quality-assured and holds many international certificates, such as ISO certificate.
7. We continuously monitor and adjust production processes to ensure product quality meets customer and company policy requirements.
8. The product is guaranteed to be superior in quality, stable in performance, and long in service life.
9. The product aids in recovery after intense physical activity. It relaxes muscles and soothes aches/pains in both muscles and joints.
10. It stands out on its own. Customers who have put nearby the booth or at the exhibition say it helps clients or target purchasers find them easily.
11. Being a not easy-to-buy option, the product loved by most people due to its uniqueness. Some customers even said that it sold out within days.
12. Water purity is extremely important to pharmaceutical and biochemical industries, hence, the product is very useful for these industries.
13. The superb aging and weathering properties of this product make it a popular solution for indoor and outdoor applications.
Rod Diameter | Groove Diameter | Groove Width | Bore Diameter | Radius | Step Width |
d f8/h9 | D H9 | L+0.2 | D1±0.1 | R | a |
20-39.9 | d+7.6 | 4.2 | d+1.0 | 0.4 | 3.0 |
40-69.9 | d+8.8 | 6.3 | d+1.5 | 1.0 | 3.0 |
70-139.9 | d+12.2 | 8.1 | d+2.0 | 1.2 | 4.0 |
140-399.9 | d+16.0 | 11.5 | d+2.0 | 2.0 | 5.0 |
400-649.9 | d+24.0 | 15.5 | d+2.5 | 2.5 | 8.0 |
650-999.9 | d+27.3 | 18.0 | d+2.5 | 2.5 | 10.0 |
Application and properties

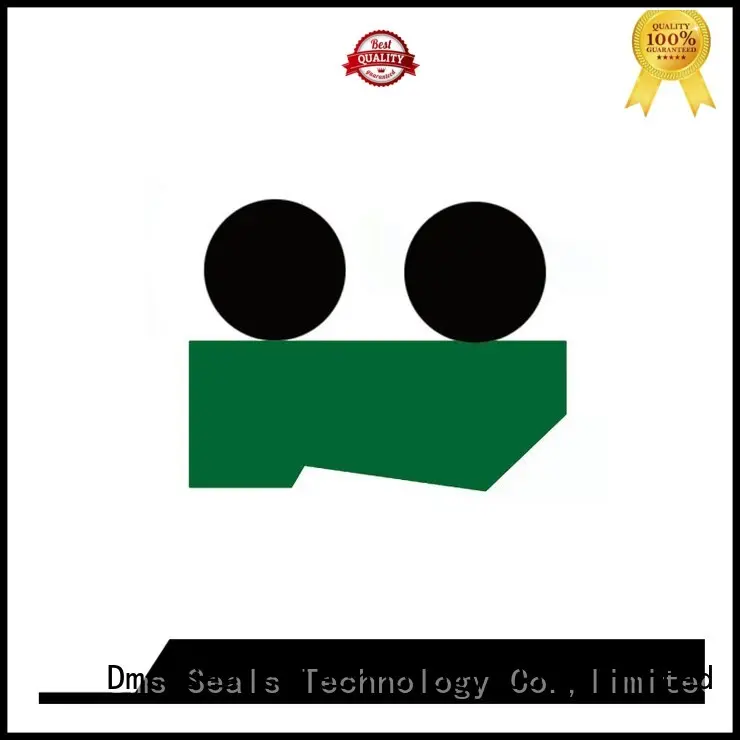

For a wide range of applications, such as agricultural machinery, injection molding machines, forklifts, cranes and so on. Consisting of a sealing ring and two O-Rings for improving overall tightness, low friction, non stick slip phenomenon, good adjustment and positioning ability, high reliability, accepting the full load of work pressure in a short time.
Standard materials
Sealing ring: filled PTFE / PU
O-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | -36℃+200℃ | 5 m/s | hydraulic oil, flame retardant liquid, water and others | |
d f8 | D H9 | H | L+0.2 | Order No. |
20 | 27.6 | 4.0 | 4.2 | DPT1-20*27.6*4.2 |
30 | 37.6 | 4.0 | 4.2 | DPT1-30*37.6*4.2 |
36 | 43.6 | 4.0 | 4.2 | DPT1-36*43.6*4.2 |
45 | 53.8 | 6.0 | 6.3 | DPT1-45*53.8*6.3 |
56 | 64.8 | 6.0 | 6.3 | DPT1-56*64.8*6.3 |
65 | 73.8 | 6.0 | 6.3 | DPT1-65*73.8*6.3 |
80 | 92.2 | 7.7 | 8.1 | DPT1-80*92.2*8.1 |
95 | 107.2 | 7.7 | 8.1 | DPT1-95*107*8.1 |
110 | 122.2 | 7.7 | 8.1 | DPT1-110*122*8.1 |
