Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃ +200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. piston seals we quoted are all made of the best pneumatic piston seals and of various kinds of styles and colors in order to meet different requirements. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management
2. Our range is sourced from reputed and trusted vendors of the industry. DMS Seal manufacturer provides good quality and competitive price hydraulic seals
3. Seal we produced has applications in a wide range of fields, DMS Seal Manufacturer Has Engaged In Developing, Manufacturing And Exporting Of hydraulic piston seals, hydraulic piston seals sizes.
4. Quality control of the seals is the basis for DMS Seals, DMS Seal Manufacturer Offers You A Diverse Range Of o-ring seal, hydraulic piston seals.
5. Our product array is extensively appreciated among our prestigious clients for their unique features such as optimum performance, longer service life and piston seals. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians

Installation Recommendation

undefined

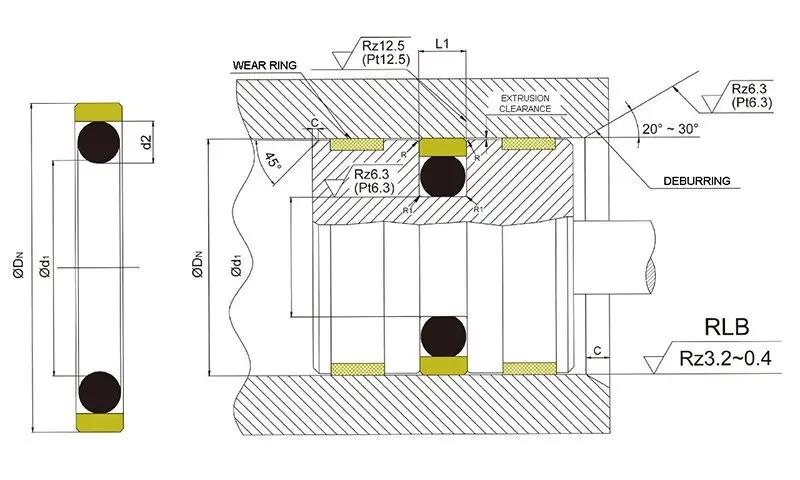

Installation Sizes

Bore Diameter DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

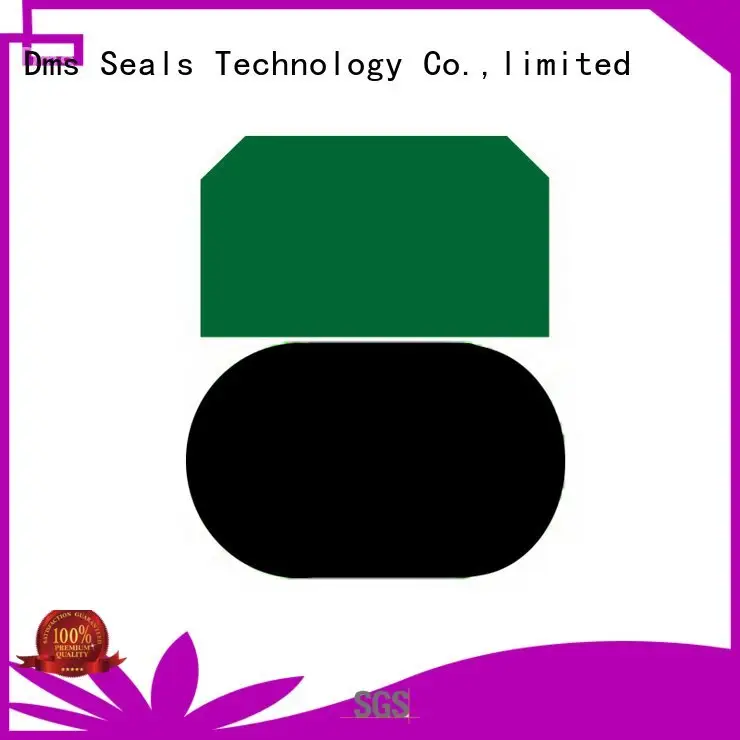

Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

Standard materials

Sealing ring: filled PTFE

O-ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2	Order No.	O-Ring Dimensions
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF83.12.2 GSF105.12.2 GSF127.12.2	2.901.78 4.801.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF149.12.2 GSF1510.12.2 GSF157.53.2	8.751.8 7.592.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF1611.12.2 GSF168.53.2 GSF1813.12.2	10.821.78 7.592.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF1810.53.2 GSF2015.12.2 GSF2012.53.2	9.192.62 14.001.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF2419.12.2 GSF2416.53.2 GSF2517.53.2	18.771.78 15.542.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25144.2 GSF2820.53.2 GSF28174.2	13.873.53 20.292.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF3022.53.2 GSF30194.2 GSF3224.53.2	21.892.62 26.701.78 23.47*2.62
32 35 35	21 27.5 24	4.2 3.2 4.2	GSF32214.2 GSF3527.53.2 GSF35244.2	20.223.53 26.642.62 23.40*3.53
36 36 38	28.5 25 30.5	3.2 4.2 3.2	GSF3628.53.2 GSF36254.2 GSF3830.53.2	28.242.62 23.393.53 29.82*2.62
38 40 40	27 32.5 29	4.2 3.2 4.2	GSF38274.2 GSF4032.53.2 GSF40294.2	25.863.53 31.422.62 28.17*3.53
45 45 48	37.5 34 40.5	3.2 4.2 3.2	GSF4537.53.2 GSF45344.2 GSF4840.53.2	36.52.62 32.923.53 36.09*3.53
48 50 50	37 39 34.5	4.2 4.2 6.3	GSF48374.2 GSF50394.2 GSF5034.56.3	36.093.53 37.703.53 32.69*5.33
52 52 55	41 36.5 44	4.2 6.3 4.2	GSF52414.2 GSF5236.56.3 GSF55444.2	40.873.53 355.33 44.04*3.53
55 56 56	39.5 45 40.5	6.3 4.2 6.3	GSF5539.56.3 GSF56454.2 GSF5640.56.3	385.33 44.043.53 39*5.33
60 60 63	49 44.5 52	4.2 6.3 4.2	GSF60494.2 GSF6044.56.3 GSF63524.2	47.223.53 42.55.33 50.39*3.53
63 64 64	47.5 53 48.5	6.3 4.2 6.3	GSF6347.56.3 GSF64534.2 GSF6448.56.3	465.33 51.53.53 46.99*5.33
65 65 70	54 49.5 59	4.2 6.3 4.2	GSF65544.2 GSF6549.56.3 GSF70594.2	53.573.53 485.33 56.74*3.53
70 75 75	54.5 64 59.5	6.3 4.2 6.3	GSF7054.56.3 GSF75644.2 GSF7559.56.3	53.345.33 63.093.53 56.52*5.33
80 80 85	69 64.5 74	4.2 6.3 4.2	GSF80694.2 GSF8064.56.3 GSF85744.2	66.273.53 62.875.33 72.62*3.53
85 90 90	69.5 79 74.5	6.3 4.2 6.3	GSF8569.56.3 GSF90794.2 GSF9074.56.3	69.225.33 78.973.53 72.39*5.33
95 95 100	84 79.5 89	4.2 6.3 4.2	GSF95844.2 GSF9579.56.3 GSF100894.2	82.143.53 78.745.33 88.49*3.53
100 105 105	84.5 94 89.5	6.3 4.2 6.3	GSF10084.56.3 GSF105944.2 GSF10589.56.3	81.925.33 91.673.53 88.27*5.33
