DMS Seal Manufacturer seals for air cylinders company for sale

Company Advantages
1. DMS Seal Manufacturer is manufactured & designed using innovative tools & equipment.
2. DMS Seal Manufacturer is manufactured from the best quality material.
3. The design of DMS Seal Manufacturer is attractive and captivating.
4. DMS Seal Manufacturer is made with advanced production equipment and fine production technology.
5. are the characteristics of seals for air cylinders .
6. On account of multiple advanced technology, seals for air cylinders now stands out in this industry.
7. Our experienced team pays much more attention to the crafts design of .
8. Dms Seals Technology Co.,limited is committed into providing the best customer service.
9. With a strong sense of responsibility, the DMS Seal Manufacturer's staff always provides the best service.
10. The customer service team of DMS Seal Manufacturer is very passionate, professional and experienced.

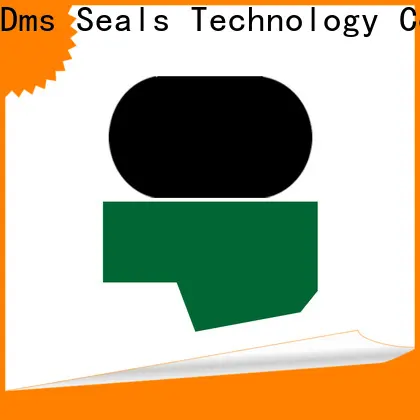

1. Installation Recommendation

2. Installation Sizes

Rod Diameter                         dN h9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	D1 H9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
3-7.9	8-18.9	-	dN+4.9	2.2	0.4	0.3	0.20	0.15	1.78
8-18.9	19-37.9	-	dN+7.3	3.2	0.6	0.4	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	dN+10.7	4.2	1.0	0.4	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	dN+15.1	6.3	1.3	0.5	0.30	0.20	5.33
200-255.9	256-649.9	38-199.9	dN+20.5	8.1	1.8	0.6	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	dN+24.0	8.1	1.8	0.6	0.35	0.25	7.00
650-999.9	≥1000.0	256-649.9	dN+27.3	9.5	2.5	0.7	0.50	0.30	8.40
≥1000.0	-	650-999.9	dN+38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Applicable to high and low speed reciprocating motion and high pressure system cylinder rod sealing. Good dimensional stability, not affected by temperature, low friction, strong corrosion resistance, could work in the situation with or without lubrication, easy installation. Meet the standards of GB/T 15242.1-94 and GB/T 15242.3-94.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

Rod Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
dN h9	D1 H9	L1+0.2
20 20 22	27.3 30.7 29.3	3.2 4.2 3.2	GSJ20*27.3*3.2 GSJ20*30.7*4.2 GSJ22*29.3*3.2	21.89*2.62 23.39*3.53 23.47*2.62
22 25 25	32.7 32.3 35.7	4.2 3.2 4.2	GSJ22*32.7*4.2 GSJ25*32.3*3.2 GSJ25*35.7*4.2	26.57*3.53 26.64*2.62 29.74*3.53
28 30 32	38.7 40.7 42.7	4.2 4.2 4.2	GSJ28*38.7*4.2 GSJ30*40.7*4.2 GSJ32*42.7*4.2	31.34*3.53 34.52*3.53 36.09*3.53
35 36 38	45.7 46.7 53.1	4.2 4.2 6.3	GSJ35*45.7*4.2 GSJ36*46.7*4.2 GSJ38*53.1*6.3	37.69*3.53 40.87*3.53 43.82*5.33
40 40 42	50.7 55.1 57.1	4.2 6.3 6.3	GSJ40*50.7*4.2 GSJ40*55.1*6.3 GSJ42*57.1*6.3	44.04*3.53 43.82*5.33 46.99*5.33
45 45 50	55.7 60.1 60.7	4.2 6.3 4.2	GSJ45*55.7*4.2 GSJ45*60.1*6.3 GSJ50*60.7*4.2	47.22*3.53 50.17*5.33 53.57*3.53
50 55 56	65.1 70.1 66.7	6.3 6.3 4.2	GSJ50*65.1*6.3 GSJ55*70.1*6.3 GSJ56*66.7*4.2	56.52*5.33 59.69*5.33 59.92*3.53
56 56 60	71.1 76.5 75.1	6.3 8.1 6.3	GSJ56*71.1*6.3 GSJ56*76.5*8.1 GSJ60*75.1*6.3	59.69*5.33 62.87*6.99 66.04*5.33

Company Features
1. Dms Seals Technology Co.,limited now takes the lead in providing high-end ranges of seals for air cylinders . Dms Seals Technology Co.,limited is a global manufacturer for rod seals . Dms Seals Technology Co.,limited is globally known for the production and R&D of hydraulic ram seals online .
2. Our R&D talents are equipped with rich experience. They spend most of their times and efforts on the research and development and keep up with the latest market trend. We have a professional marketing team. Our team has extensive experience in expanding our products in both developed and low-cost regions around the world. Over the years, we have gained a new revenue potential by making our business go global. We have expanded the overseas market in America, Australia, Germany, and so on. Our company has a strong sales team. They are highly responsible for making sales, growing our business and retaining existing customers. And they work to maintain relationships with our customers.
3. We are finding ways to reduce the company's impact on the environment and embed sustainability throughout our businesses. We achieve these from the efficiency of our buildings to our progress in managing energy, water, and production waste. We are working hard to drive progress towards a more sustainable production model. We'll try to avoid, reduce, and control environmental pollution throughout all production practices. Our goal is to provide consistent customer delight. We are putting efforts on providing innovative products at the highest level. We take social responsibility. By using an environmental approach to link our economic foundations, we not only make a positive contribution to climate protection but also create quantifiable added value for our company. Social responsibility is at the core of our corporate culture, and we embrace corporate citizenship through sustainable development. Call now!
