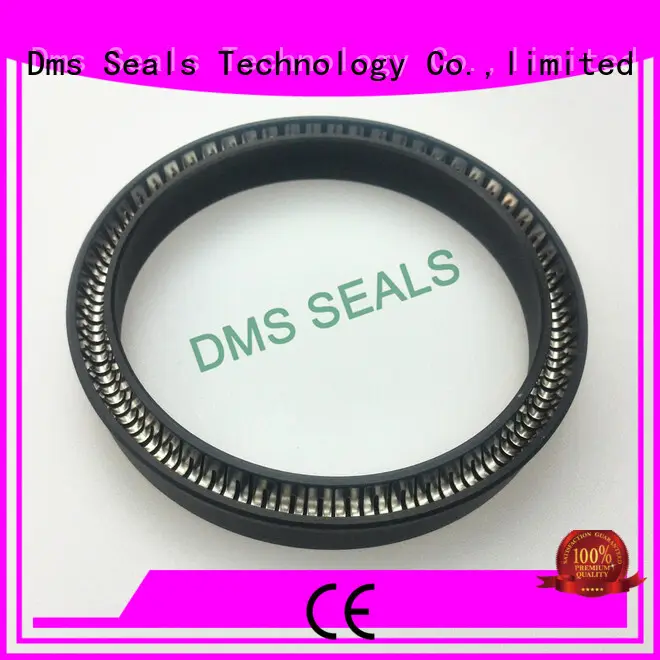

DMS Seal Manufacturer spring loaded seal for business for reciprocating piston rod or piston single acting seal

Company Advantages
1. All the raw material for spring loaded seal comes from qualified supplier.
2. The rigorous design phase of DMS Seal Manufacturer spring loaded seal makes it distinctive.
3. spring loaded seal has always been commented by a positive way for its design.
4. The raw material of DMS Seal Manufacturer meets the requirements of overseas technology.
5. The product is hypoallergenic. The wood materials are specially treated to be free of bacteria and fungi when subjected to high temperatures.
6. The product is resistant to corrosion. It has passed rigorous oxidation treatment with a protective layer to resist any reaction with the air.
7. The product is characterized by hygroscopicity. It is able to absorb moisture from the surrounding atmosphere without compromising its durability.
8. With its professional workmanship, strong R&D ability and advanced technology, Dms Seals Technology Co.,limited produces high quality spring loaded seal which wins much reputation.
9. Paying attention to the quality assurance of spring loaded seal will facilitate DMS Seal Manufacturer to develop better.
10. Dms Seals Technology Co.,limited has strong product innovation capabilities.
11. Strict quality assurance ensures the higher performance of spring loaded seal .
12. High efficient production of spring loaded seal contributes to the introduction of advanced machines.

1. Application and properties

Suitable for reciprocating piston rod or piston single acting seal, the working pressure has a wide range of adaptability, and the pressure capacity can be enhanced by increasing the tail length size or increasing the check ring.

Small friction coefficient, The contact pressure between the mating surface and the mating surface is low, and the friction between the work face and the mating surface is the smallest in all seal types. with or without lubrication can work, wear resistance, long service life.

The working medium of the sealing sleeve has wide adaptability, and the other chemicals are not reacted except soluble alkali metal, high temperature fluorine gas and three fluoride chloride.

The working temperature range is wide, and can be used for -200 ℃ to +250 ℃.

It can be used for very high speed, very low speed, micro-stroke and other special conditions.

Suitable for aviation, military and industrial sealing groove size, The standard installation groove is the same size as the standard O ring, and the size is small. It can be designed as non standard parts to meet the sealing requirements of any size groove. The groove is open or semi open.

It can be used in rotary sealing. It can adapt to large eccentricity and beating.

2. Standard materials

Sealing sleeve: PTFE

Spring: Stainless steel 304, 316

3. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range ℃	Speed	Medium
3 - 1600mm	0 - 20MPa	-200 ~ +250	5 m/s	High and low temperature oil and water and other fluids.

4. Installation Sizes

Back pressure surfaceR1=0.1 ~ 0.2, tank bottom R2=0.3 ~ 0.5, Import lengthC=(0.7 ~ 1.0)L.

Rod Diameter	Groove Width	Groove Diameter	Radial Clearance
d	L	D	e
2 ~ 10	2.5	d+3.0	0.05
10 ~ 22	3.2	d+4.0	0.065
22 ~ 52	4.7	d+6.0	0.075
48 ~ 150	7.5	d+10.0	0.09
150 ~ 400	11.0	d+15.0	0.10

5. Matters needing attention

Ⅰ, The installation groove must be open or semi open, and it is recommended to be open.

Ⅱ, If the seal is for the rotating shaft, it is recommended that the surface hardness of the shaft should be no less than HRC40.

Ⅲ，Considering the adaptability of the working medium, the adaptability of the jacket and spring should be taken into account.

Ⅳ, It is better to install an anti fouling ring or a antifouling guide ring in the notch direction in front of the seal.

Company Features
1. Dms Seals Technology Co.,limited is a leading spring loaded seal manufacturer and supplier with a solid global customer base. Dms Seals Technology Co.,limited has its own independent production base to manufacture oil seal manufacturer . Dms Seals Technology Co.,limited reached a fairly high level in the spring seals production area.
2. Dms Seals Technology Co.,limited has a production base, specializing in the production of spring energized seals . Our oil seal spring is of good quality and competitive price to attract more customers. Efforts are made by all DMS Seal Manufacturer employees to provide best spring energized seals for customers. Dms Seals Technology Co.,limited has received many positive feedback about our quality and you can be assured of it. Dms Seals Technology Co.,limited strictly test quality of spring loaded seal before delivery.
3. Dms Seals Technology Co.,limited will guarantee greater customer satisfaction throughout the purchasing procedure. Get more info! High quality is consistently set first in Dms Seals Technology Co.,limited. Get more info! Dms Seals Technology Co.,limited will continue to provide a high quality spring loaded seal and professional services. Get more info! Dms Seals Technology Co.,limited will provide unwavering quality spring loaded seal . Get more info!

DMS Seal Manufacturer spring loaded seal for business for reciprocating piston rod or piston single acting seal

spring loaded seal

Type:
