DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
DMS Seal Manufacturer Top bucket cylinder seal kit glyd ring for sale
1. DMS Seal Manufacturer precisely manufactured in complete tandem with the current market standards.
2. Exclusive use of high quality materials is anticipated in the manufacturing processes of bucket cylinder seal kit . These materials are pinpointed through direct experience and selected from among the best and most innovative on the market.
3. DMS Seal Manufacturer is developed using premium quality materials in compliance with international quality standards.
4. The application of bucket cylinder seal kit is more and more popular because it has features like .
5. bucket cylinder seal kit has the properties of , which is used in .
6. Characterized by its reasonable price, our bucket cylinder seal kit is also famous for its .
7. Eye-catching lines and elegant curves are just two of the most striking features that people will notice the first time they see this product.
8. Its good sealing property makes it ideal for many industries applications, such as pumps, autos, industrial manufacturing machines, etc.
9. The use of this product is conducive to improving the work efficiency and overall output rate of talents, which means that it improves efficiency while reducing labor costs.
Application and properties

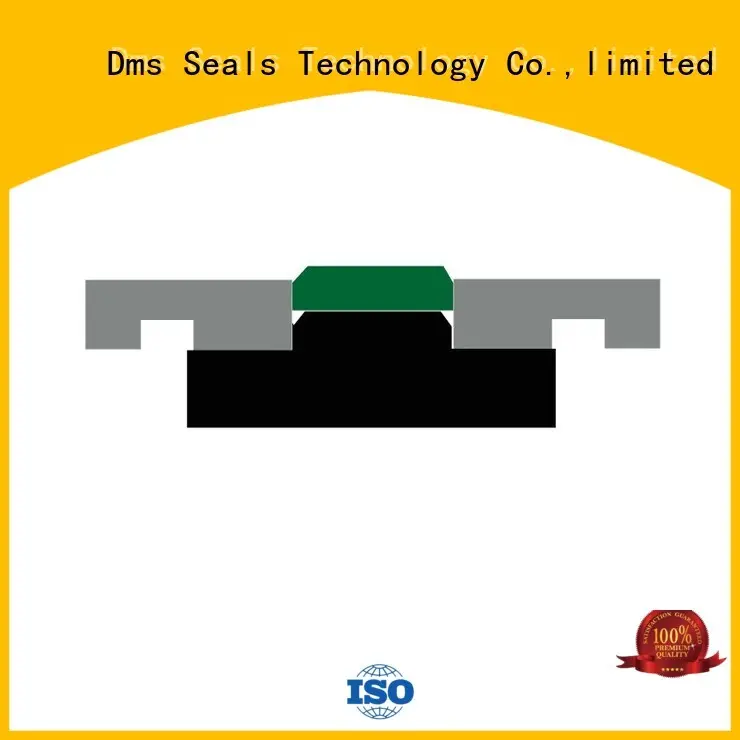

Apply to cylinder piston，Consisting of a seal ring, an O-Ring, a pair of retaining rings and a pair of guide sleeves. The seal ring and cylinder bore conforming to be a symmetric section to achieve the sealing performance, with double acting sealing performance.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Guide ring: filled PTFE / PA
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-45MPa | -30℃+100℃ | 1 m/s | hydraulic oil, water and emulsion |
D | d | b | d2 | d3 | a | c | f | e | Order No. |
40 | 26 | 30 | 32 | 36 | 3.5 | 15.5 | 7.25 | 7 | DKDF40*26*30 |
56 | 40 | 32 | 48 | 52 | 3 | 20.5 | 5.8 | 7 | DKDF56*40*32 |
65 | 49 | 32 | 57 | 61 | 3 | 20.5 | 5.8 | 7 | DKDF65*49*32 |
80 | 62 | 36 | 72 | 76 | 3 | 22.5 | 6.8 | 7 | DKDF80*62*36 |
95 | 77 | 36 | 87 | 91 | 3 | 22.5 | 6.8 | 7 | DKDF95*77*36 |
110 | 92 | 36 | 102 | 106 | 3 | 22.5 | 6.8 | 10 | DKDF110*92*36 |
125 | 103 | 43 | 115 | 121 | 4 | 26.5 | 8.3 | 10 | DKDF125*103*43 |
140 | 118 | 43 | 130 | 136 | 4 | 26.5 | 8.3 | 10 | DKDF140*118*43 |
155 | 133 | 43 | 145 | 151 | 4 | 26.5 | 8.3 | 10 | DKDF155*133*43 |
180 | 158 | 48 | 170 | 176 | 6 | 26.5 | 10.8 | 10 | DKDF180*158*48 |
200 | 175 | 48 | 190 | 196 | 4.5 | 31.5 | 8.3 | 10 | DKDF200*175*48 |
235 | 210 |
| 225 | 231 | 15 | 31.5 | 21.3 | 12 | DKDF235*210*74 |
265 | 240 | 74 | 255 | 261 | 15 | 31.5 | 21.3 | 12 | DKDF265*240*74 |
Company Features
1. By centering on the R&D and production of bucket cylinder seal kit , Dms Seals Technology Co.,limited has occupied a larger market share. Under the strict test of , DMS Seal Manufacturer has the capability of manufacturing the selected hydraulic o rings suppliers . DMS Seal Manufacturer is widely accepted by its customers from all over the world mainly for its hydraulic cylinder piston seals .
2. We have employed the best technicians. They adhere to proven methodology, provide superior client services, which helps us become a true business partner in every project. Currently, we have quickly expanded our business operation range to the overseas markets. Now, we provide services for customers in America, Europe, and Aisa. Dms Seals Technology Co.,limited has international top quality control capabilities and a good brand reputation. Dms Seals Technology Co.,limited has exceptional characteristics in scientific study and development.
3. While Dms Seals Technology Co.,limited is striving to become the world’s leading hydraulic cylinder packing replacement supplier, we are able to give the best. Get price! Under the management of core culture, DMS Seal Manufacturer staff become more passionate every day to offer the best service. Get price! Dms Seals Technology Co.,limited has been endeavoring to ensure the quality of the service. Get price! DMS Seal Manufacturer actively encourage and create an innovative cooperative atmosphere. Get price! Pursuit of excellence both in service and hydraulic seals distributors quality will be DMS Seal Manufacturer's unceasing goal. Get price!
DMS Seal Manufacturer Top bucket cylinder seal kit glyd ring for sale
bucket cylinder seal kit
Type:
Professional O Ring Suppliers & O Ring Manufacturers
