DMS Seal Manufacturer Top cup seals for hydraulic cylinders glyd ring for light and medium hydraulic systems 1

DMS Seal Manufacturer Top cup seals for hydraulic cylinders glyd ring for light and medium hydraulic systems 2

DMS Seal Manufacturer Top cup seals for hydraulic cylinders glyd ring for light and medium hydraulic systems

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Application Scope

Dms Seals's Oil Seal Manufacturer is widely used in the Manufacturing Industrial Parts Seals industry.With a focus on customers, Dms Seals analyzes problems from the perspective of customers and provides comprehensive, professional and excellent solutions.

Company Advantages
1. DMS Seal Manufacturer is produced with the well-selected raw materials to ensure each piece in good condition.
2. DMS Seal Manufacturer cup seals for hydraulic cylinders is manufactured based on the industry-leading technology.
3. The distinctive design of DMS Seal Manufacturer comes from our professional design team.
4. The product is able to withstand high temperature. Its unique chemical structure gives it general inertness when subjected to high temperature.
5. The product is durable enough to last for years to come. The wood materials used can retain its color for many years and withstand temperature changes and moisture.
6. The product features good deformation resistance. When a sufficient load from a machine is applied to it, it will not happen to change shapes.
7. Dms Seals Technology Co.,limited constantly improve the production process and improve the control of product quality.
8. It is promised to reach a wider market than the previous one.
9. Dms Seals Technology Co.,limited selects optimal plan for our customers during pre-sale.

Installation Recommendation

undefined

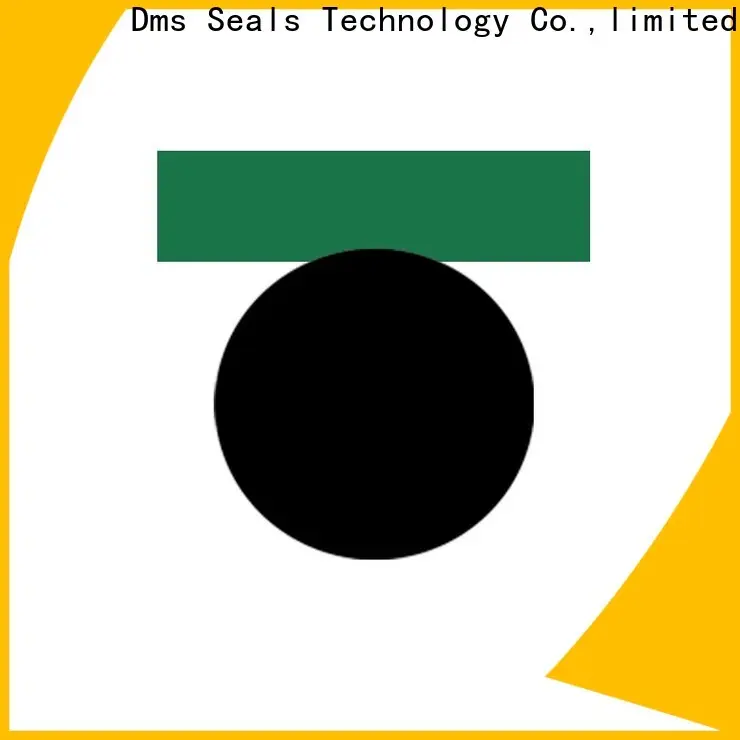

Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L +0.2	Order No.
D	d	H	L +0.2	Order No.
20 25 30	14 19 21.5	3 3 3.8	3.2 3.2 4	DPO20143.2 DPO25193.2 DPO3021.54
31.5 32 35	23 23.5 26.5	3.8 3.8 3.8	4 4 4	DPO31.5234 DPO3223.54 DPO3526.54
35.5 40 45	27 31.5 36.5	3.8 3.8 3.8	4 4 4	DPO35.5274 DPO4031.54 DPO4536.54
50 53 55	41.5 44.5 46.5	3.8 3.8 3.8	4 4 4	DPO5041.54 DPO5344.54 DPO5546.54
56 60 63	47.5 51.5 49	3.8 3.8 6.3	4 4 6.5	DPO5647.54 DPO6051.54 DPO63496.5
65 70 71	51 56 57	6.3 6.3 6.3	6.5 6.5 6.5	DPO65516.5 DPO70566.5 DPO71576.5
75 80 85	61 66 71	6.3 6.3 6.3	6.5 6.5 6.5	DPO75616.5 DPO80666.5 DPO85716.5
90 95 100	76 81 86	6.3 6.3 6.3	6.5 6.5 6.5	DPO90766.5 DPO95816.5 DPO100866.5
105 110 112	91 96 98	6.3 6.3 6.3	6.5 6.5 6.5	DPO105916.5 DPO110966.5 DPO112986.5
115 120 125	101 106 111	6.3 6.3 6.3	6.5 6.5 6.5	DPO1151016.5 DPO1201066.5 DPO1251116.5
130 135 140	116 121 126	6.3 6.3 6.3	6.5 6.5 6.5	DPO1301166.5 DPO1351216.5 DPO1401266.5
150 160 170	136 146 150	6.3 6.3 9.8	6.5 6.5 10.0	DPO1501366.5 DPO1601466.5 DPO17015010
180 190 200	160 170 180	9.8 9.8 9.8	10.0 10.0 10.0	DPO18016010 DPO19017010 DPO20018010

Installation Dimensions

Company Features
1. Among the numerous manufacturers of , Dms Seals Technology Co.,limited is a recommended one. We integrate design, manufacturing and after-sales services to provide the best for customers. Dms Seals Technology Co.,limited has been one of the most competitive manufacturers since establishment. We design, manufacture, and test cup seals for hydraulic cylinders for a wide variety of applications. Dms Seals Technology Co.,limited is a leading manufacturer of in China. We pride ourselves in gaining a reputation through our extensive experience.
2. Dms Seals Technology Co.,limited has always adhered to the strict quality standards of our hydraulic rod seal installer production. Lawfull granted with a production certificate, the company is allowed to manufacture and sell products to the public by the China Administration for Industry and Commerce. This certificate is directly related to public safety, human health, and life and property security, which means customers can be assured that what we produce and sell are safe and secure. In Dms Seals Technology Co.,limited, the production equipment is advanced along with the testing methods are complete.
3. Our mission is always to create buy hydraulic seals for customers. Call now! Dms Seals Technology Co.,limited has established a perfect sales and service network throughout the world. Call now! By implementing the strict system, DMS Seal Manufacturer does our utmost to meet the needs of customers as our work goal. Call now! Dms Seals Technology Co.,limited carry forward the strategic goal of . Call now! To be a world-class supplier of piston u seal manufacturer is the consistent strategic goal of DMS Seal Manufacturer. Call now!

DMS Seal Manufacturer Top cup seals for hydraulic cylinders glyd ring for light and medium hydraulic systems

cup seals for hydraulic cylinders

Type:

DMS Seal Manufacturer Top cup seals for hydraulic cylinders glyd ring for light and medium hydraulic systems 6

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
