DMS Seal Manufacturer Top metric wiper seal Suppliers for agricultural machinery 1

DMS Seal Manufacturer Top metric wiper seal Suppliers for agricultural machinery 2

DMS Seal Manufacturer Top metric wiper seal Suppliers for agricultural machinery

Diameter Range:

3-1600mm

Temperature Range:

-30℃+200℃

Speed:

5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. DMS Seal Manufacturer is designed by innovative professionals using finest quality materials. DMS Seals provides professional design and production of high-grade o-ring seals
2. The quality of metric wiper seal can be guaranteed through . Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals
3. metric wiper seal is of characteristics of . DMS Seal manufacturer provides good quality and competitive price hydraulic seals

Installation Recommendation

undefined

Installation Sizes

Rod Diameter d f8/h9		Groove Diameter	Groove Width	Step Diameter	Radius	Step Width
Standard Application	Suitable Application	D H9	L1+0.2	D1±0.1	R	a
140.0-229.9	100.0-450.0	d+22.2	6.3	d+10.7	1.2	4.2
230.0-299.9	220.0-450.0	d+24.2	6.3	d+10.7	1.2	4.2
300.0-629.9	250.0-650.0	d+33.0	8.1	d+15.1	1.2	6.3
630.0-999.9	550.0-999.9	d+36.5	9.5	d+15.1	2.0	6.3

Application and properties

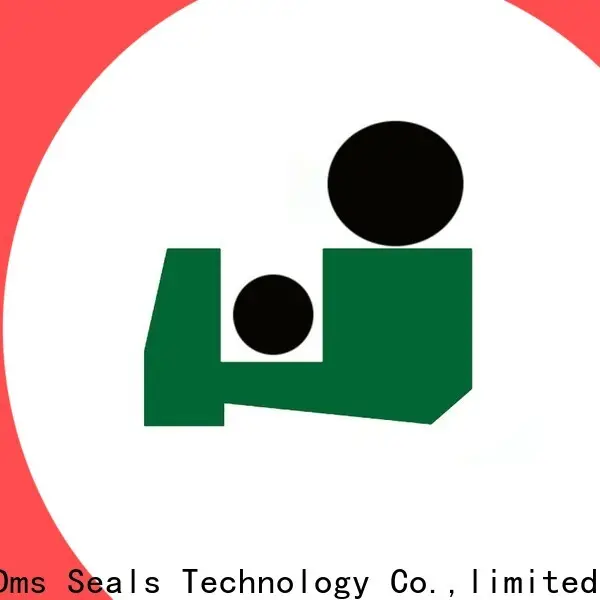

Applicable to agricultural hydraulic press, injection molding machine, metallurgical equipment, etc. Consisting of a sealing ring and two O-Rings as preload element, good dust scraping effect, low friction, no stick slip phenomenon, good ability of adjustment and positioning, especially for large diameter piston rods.

Standard materials

Sealing ring: filled PTFE / PU

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm		-30℃+200℃	5 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

d f8	D H9	H	L1+0.2	L1	Order No.
100 110 120	122.2 132.2 142.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-100122.26.3 DPT2-110132.26.3 DPT2-120142.26.3
130 140 150	152.2 162.2 172.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-130152.26.3 DPT2-140162.26.3 DPT2-150172.26.3
160 170 180	182.2 192.2 202.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-160182.26.3 DPT2-170192.26.3 DPT2-180202.26.3
190 200 210	212.2 222.2 232.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-190212.26.3 DPT2-200222.26.3 DPT2-210232.26.3
220 230 240	242.2 252.2 262.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-220242.26.3 DPT2-230252.26.3 DPT2-240262.26.3
250 260 270	272.2 282.2 292.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-250272.26.3 DPT2-260282.26.3 DPT2-270292.26.3
275 280 290	297.2 302.2 312.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-275297.26.3 DPT2-280302.26.3 DPT2-290312.26.3
295 300 320	317.2 333 353	13.5 18.4 18.4	6.3 8.1 8.1	4.2 6.3 6.3	DPT2-295317.26.3 DPT2-3003338.1 DPT2-3203538.1
340 350 360	373 383 393	18.4 18.4 18.4	8.1 8.1 8.1	6.3 6.3 6.3	DPT2-3403738.1 DPT2-3503838.1 DPT2-3603938.1

Installation Dimensions
