DMS Seal Manufacturer Top piston rod seals hydraulic with nbr or fkm o ring to high and low speed

Company Advantages
1. The touch screen monitor of DMS Seal Manufacturer piston rod seals hydraulic adopts touch-based technology. It is specially developed by our dedicated R&D team to handle thousands of uses.
2. The operating system of DMS Seal Manufacturer is exclusively developed by our R&D teams. They work hard to meet the different requirements of business owners while keeping up with trends of the POS system.
3. DMS Seal Manufacturer piston rod seals hydraulic is manufactured by adopting the following methods: injection molding, compression molding, and extrusion which require highly accurate single or multi-cavity molds.
4. Each production stage of DMS Seal Manufacturer is strictly conducted by advanced machines including CNC lathes, milling machines, grinding machine, cutting machines, and bending machines.
5. All the components of DMS Seal Manufacturer are constantly tested by our engineers and technicians. These tests include accelerated life testing of materials, stress measurement and fatigue testing of fans, and performance qualifications of pumps and motors.
6. It is resistant to spills and dirt. Its surface has been finely treated, which makes the dirt and moisture hard to stick around.
7. The product is safe to use. All of its edges have been cut professionally to guarantee no finger-cut or other injury issues will occur.
8. This product is non-toxic. Chemical risk assessments in its manufacturing are improved and all potentially harmful substances are phased out.
9. It has thermal comfort. Its materials contain fibers that feature hygroscopic properties and are capable of absorbing moisture, which contributes to the thermal comfort of this product.
10. This product features wear comfort. A fundamental understanding of human comfort and a knowledge of how to design textiles and garments to maximize comfort for the wearer are utilized in designing this product.
11. Our products have got global popularity and excellent reputation.
12. This product has been widely recommended not only for its reliable features but for huge economic benefits.
13. More and more customers have shown their great interest in the application of this product.
14. The product is utilized by a large number of people for various applications.

1. Installation Recommendation

2. Application and properties

Applicable to a wide range of pressure work and sliding high speed occasions. Standard combined seal. Low friction, strong wear resistance.

3. Standard materials

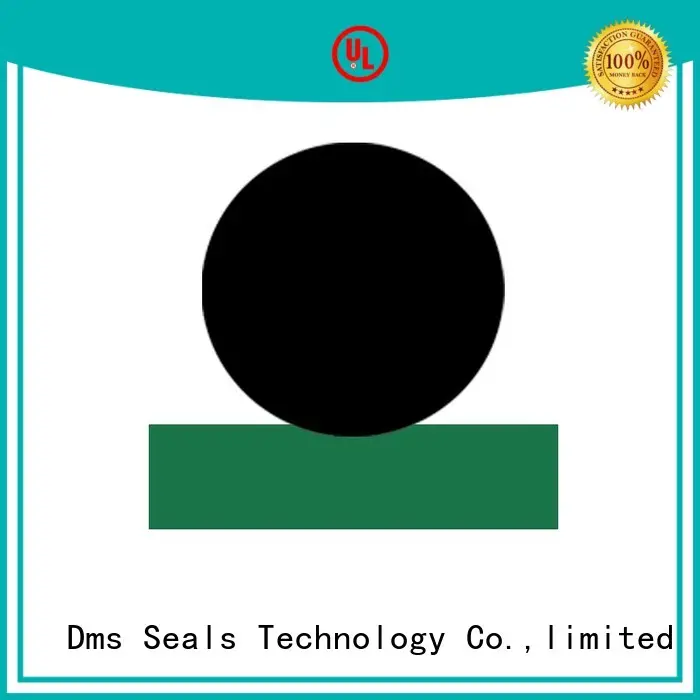

Sealing ring: filled PTFE

O-Ring: NBR / FKM





4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 35MPa	-30℃ + 200℃	1.5m/s	general hydraulic oil, water glycol hydraulic oil, oil / water emulsion type hydraulic oil.

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
12 14 16	18 20 22	3.0 3.0 3.0	3.2 3.2 3.2	SPNO12*18*3.2 SPNO14*20*3.2 SPNO16*22*3.2
18 20 22	24 26 31	3.0 3.0 3.8	3.2 3.2 4	SPNO18*24*3.2 SPNO20*26*3.2 SPNO22*31*4
25 28 30	34 37 39	3.8 3.8 3.8	4 4 4	SPNO25*34*4 SPNO28*37*4 SPNO30*39*4
32 36 40	41 45 49	3.8 3.8 3.8	4 4 4	SPNO32*41*4 SPNO36*45*4 SPNO40*49*4
45 50 56	54 65 71	3.8 6.3 6.3	4 6.5 6.5	SPNO45*54*4 SPNO50*65*6.5 SPNO56*71*6.5
60 63 70	75 78 85	6.3 6.3 6.3	6.5 6.5 6.5	SPNO60*75*6.5 SPNO63*78*6.5 SPNO70*85*6.5
75 80 85	90 95 100	6.3 6.3 6.3	6.5 6.5 6.5	SPNO75*90*6.5 SPNO80*95*6.5 SPNO85*100*6.5
90 95 100	105 110 115	6.3 6.3 6.3	6.5 6.5 6.5	SPNO90*105*6.5 SPNO95*110*6.5 SPNO100*115*6.5
105 110 115	120 125 130	6.3 6.3 6.3	6.5 6.5 6.5	SPNO105*120*6.5 SPNO110*125*6.5 SPNO115*130*6.5
120 125 130	135 140 145	6.3 6.3 6.3	6.5 6.5 6.5	SPNO120*135*6.5 SPNO125*140*6.5 SPNO130*145*6.5
135 140 145	150 155 160	6.3 6.3 6.3	6.5 6.5 6.5	SPNO135*150*6.5 SPNO140*155*6.5 SPNO145*160*6.5
150 160 170	170 180 190	9.8 9.8 9.8	10 10 10	SPNO150*170*10 SPNO160*180*10 SPNO170*190*10

Company Features
1. Dms Seals Technology Co.,limited is a professional manufacturer specialized in piston rod seals hydraulic . We are recognized as a responsible and credible company. Dms Seals Technology Co.,limited counts as one of the leaders in developing and manufacturing . We are a professional manufacturer with years of industry experience. Being an experienced and professional manufacturer and supplier of , Dms Seals Technology Co.,limited has been highly recommended by many customers. Dms Seals Technology Co.,limited is a manufacturing company of based in China. We boast profound industry experience and expertise.
2. We have a factory. Covering a large area and being equipped with advanced production machines, it enables us to provide a steady and adequate supply to customers. We have imported a series of production facilities. These unique manufacturing facilities allow us to address a broad range of product objectives and meet rigid quality assurance standards. Every production lines are reasonably arranged in the factory, aiming to give full play of productivity. These production lines are under the supervision of the ISO 9001 management system, guaranteeing all products are produced in line with standards. We are blessed with an outstanding R&D team. All of the members of this team have years of experience in product innovation and development. Their strong competence in this field enables us to offer distinguished products for clients. Our team is a trained product and competency expert. They coordinate our vast resources to ensure that our clients' projects are completed on time from research and development to final delivery.
3. We have an environmental-friendly production concept on the mind. We are looking for cleaner materials and create sustainable alternatives to the current packaging materials. All of our production processes are stepping forward a more environmentally acceptable way. We aim to design great products with sustainability in mind and collaborate across our business to develop strategies to improve the sustainability performance of our brands and products. We have refined a customer-centric belief system, focusing on delivering a positive experience and providing unparalleled levels of attention and support so customers can focus on growing their business. We would like to constantly create new values with 'encouragement' as well as provide products and technology according to the viewpoint of customers and partners. Contact us!

DMS Seal Manufacturer Top piston rod seals hydraulic with nbr or fkm o ring to high and low speed

piston rod seals hydraulic

Type:
