DMS Seal Manufacturer Top shaft seals online for construction machinery
- Based on customers' needs, Dms Seals provides information inquiry and other related services by making full use of our advantageous resources. This enables us to solve customers' problems in time.
1. DMS Seal Manufacturer is of professional design. It is by our designer who has mastered the bedding structure of nuts and bolts and is full of confidence that creating bedding is a compliment.
2. DMS Seal Manufacturer has passed many tests. These tests include anti-fatigue tests, dimensional stability tests, chemical resistance tests, and mechanical tests.
3. The quality standard of DMS Seal Manufacturer is high. It is processed by advanced light processing equipment and tested under severe quality tests.
4. The product features good wind resistance. Its base has more friction with the ground contact part, which can defend against collapse.
5. The product features great hardness. It can withstand a certain amount of impacts and shocks without generating cracks on the surface.
6. The product is anti-static. During the production stage, its lampshade has gone through the surface treatment to be free of static electricity.
7. The product stands out for its short response time. Adopting a high-performance processor, it can respond quickly without any delay.
8. The product is free of toxic substances. At the stage of extraction, the raw materials are totally tested to be harmless.
9. With rapid delivery, Dms Seals Technology Co.,limited creates a win-win situation for itself and customers.
10. Quality is what Dms Seals Technology Co.,limited pays the most importance to.
11. With a strong sense of responsibility, the DMS Seal Manufacturer's staff always provides the best service.
12. Dms Seals Technology Co.,limited only supplies high quality shaft seals online with the most competitive price.
Rod Diameter | Groove Diameter | Seal Width | Groove Width | Guide Clearance S max | |
d e8 | D H9 | H | L | 0-10MPa | 15-36MPa |
50-79 | d+10.0 | 4.5 | 5.0 | 0.40-0.30 | 0.30-0.25 |
80-109 | d+13.8 | 7.0 | 7.5 | 0.45-0.35 | 0.35-0.30 |
110-299 | d+20.0 | 9.5 | 10.0 | 0.55-0.45 | 0.45-0.35 |
300-600 | d+24.0 | 12.5 | 13.0 | 0.60-0.55 | 0.55-0.45 |
Application and properties

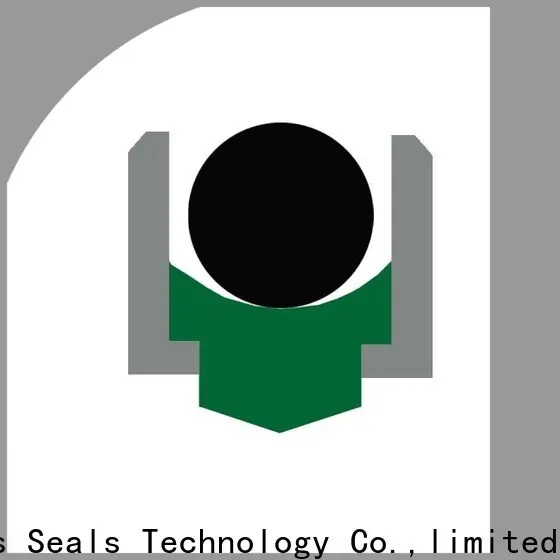

Applicable to construction machinery, construction machinery and automotive equipment and other industrial fields. Consisting of a sealing ring, a O-Ring and two retaining rings, the sealing surface profile is specially designed to accommodate high pressure and low speed, the design of the back of the seal ring increases the contact surface and prevents rotation with the rod or shaft. Low friction, non viscous phenomenon, simple groove, good abrasion resistance and dimensional stability.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Back-up ring: POM / PA
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-36MPa | -36℃+100℃ | 0.5 m/s | hydraulic oil, flame retardant liquid, water and others |
d e8 | D H9 | H | L | e | Order No. |
50 | 60 | 4.5 | 5 | 7 | OI50*60*4.5 |
65 | 75 | 4.5 | 5 | 7 | OI65*75*4.5 |
80 | 93.8 | 7.0 | 7.5 | 7 | OI80*93.8*7 |
95 | 108.8 | 7.0 | 7.5 | 7 | OI95*108.8*7 |
115 | 135 | 9.5 | 10 | 10 | OI115*135*9.5 |
130 | 150 | 9.5 | 10 | 10 | OI130*150*9.5 |
160 | 180 | 9.5 | 10 | 10 | OI160*180*9.5 |
190 | 210 | 9.5 | 10 | 10 | OI190*210*9.5 |
225 | 245 | 9.5 | 10 | 10 | OI225*245*9.5 |
Company Features
1. DMS Seal Manufacturer is a trustworthy enterprise for customers to offer high quality shaft seals online . DMS Seal Manufacturer has been globally famous in the overseas market. Dms Seals Technology Co.,limited precedes in the oil and grease seal industry. DMS Seal Manufacturer has won many praises like award. DMS Seal Manufacturer has strong capabilities to produce reliable shaft seal suppliers .
2. The factory has introduced many international cutting-edge manufacturing or assisting facilities. These facilities are able to detect most kinds of product defections, which gives us the capability to manufacture high-quality and standardized products. We have built a first-class factory with high manufacturing accuracy and have been trusted by many customers. It operates to international standards and offers the highest quality and efficiency. We have adopted an advanced and high-efficient production management system. This system has helped us ensure the quality of the raw materials and the reduction of production costs. We have expanded our business scope covering most of North America, South America, the Middle East, Europe, Southeast Asia, and other markets based on our superb manufacturing technology. We have a fully equipped factory. A large amount of capital is continuously invested in production lines and machines to ensure the reliability of all links in our supply chain.
3. Whenever we are needed, Dms Seals Technology Co.,limited will provide timely response to help solve problems form our customers. Contact! Dms Seals Technology Co.,limited will conform to the development trend of the times, seize every opportunity to achieve better growth in high speed seals industry. Contact! With the management philosophy of metric lip seals , DMS Seal Manufacturer provides professional shopping experience. Contact! The service principle of Dms Seals Technology Co.,limited has always been . Contact!
