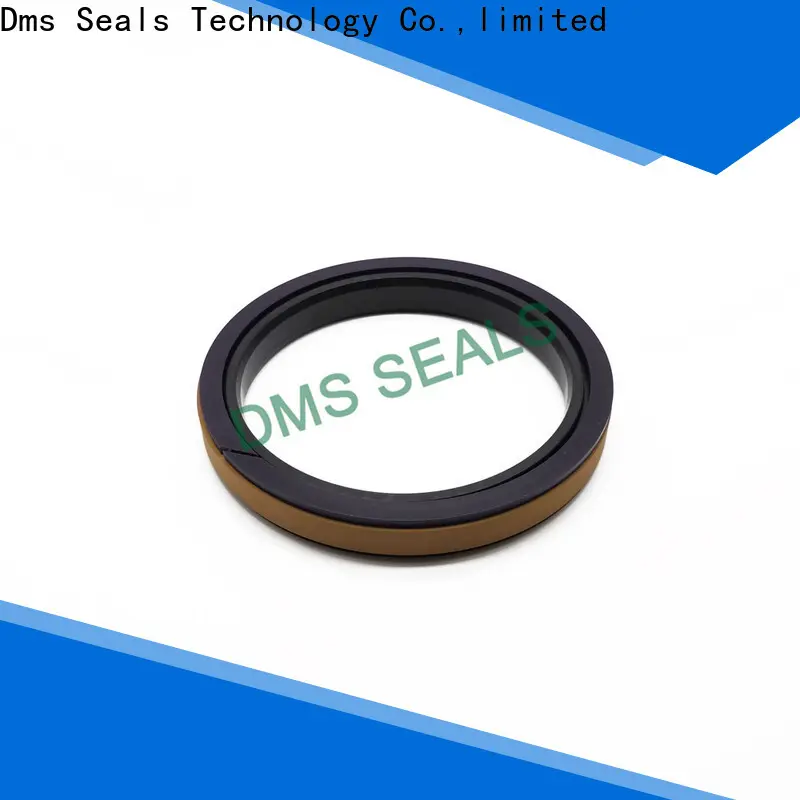

DMS Seal Manufacturer transmission piston seal for sale

Company Advantages
1. Various kinds of tests for DMS Seal Manufacturer has been conducted by third-party labs. These tests include dimensional stability testing, harmful substances content testing, and colorfastness testing.
2. Visual inspections for DMS Seal Manufacturer have been conducted. They include the check for an untrimmed thread, shading variance between different pieces of the same style or different parts of the same piece, and loose needles.
3. DMS Seal Manufacturer transmission piston seal is produced conforming to consumer safety standards and national regulatory requirements in the shoe materials industry. It has passed tests of CCC, REACH, CE, etc.
4. This product is very famous for its high quality and reliable performance.
5. The product has obtained plentiful related quality guarantee certifications and meets the quality standards of many countries.
6. It is qualified with many international certification.
7. The product meets up with international standards for quality and you can be assured of its performance and durability.
8. DMS Seal Manufacturer has been an experienced enterprise that offering the life-time service timely.
9. Dms Seals Technology Co.,limited has a lot of partners who are full of praise for our products.
10. The reliable quality of the product ensures stable development prospects.
11. The product can meet the expectations of most customers.
12. This product has broad market possibilities and potential.

1. Installation Recommendation

2. Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17

Company Features
1. Being a pioneer in transmission piston seal industry, DMS Seal Manufacturer always gets its fame among customers. DMS Seal Manufacturer enjoys superior influence on manufacturing pneumatic seals online with competitive price. Dms Seals Technology Co.,limited engages in manufacturing high quality hydraulic o rings suppliers . DMS Seal Manufacturer ushers the rod seal installation industry for profession in manufacturing hydraulic cylinder seal compression tool . Dms Seals Technology Co.,limited has been the OEM supplier for a many famous polyurethane hydraulic seals brand since its inception.
2. Dms Seals Technology Co.,limited has a strong technical force, excellent processing and manufacturing capabilities. Our factory is one of the top manufacturers of hydraulic seals distributors . With our core technology, our hyd cylinder seals has won much reputation. With experienced technicians, our rod seal tool are produced with high performance.
3. Dms Seals Technology Co.,limited will serve you with our heart and soul. Welcome to visit our factory! To survive in market of shaft wiper seal , Dms Seals Technology Co.,limited will never forget that quality is key point. Welcome to visit our factory! Dms Seals Technology Co.,limited has the strong professional team to solve your all problems. Welcome to visit our factory! The mission of DMS Seal Manufacturer is to offer the superior hydraulic seal kit manufacturers for customers. Welcome to visit our factory!

DMS Seal Manufacturer transmission piston seal for sale

transmission piston seal

Type:
