DMS Seal Manufacturer u seal band Suppliers for forklifts
- Dms Seals gives priority to customers and strives to provide them with satisfactory services.
1. The quality of DMS Seal Manufacturer u seal band is accredited. It is checked in our testing laboratory in terms of numerous chemical and optical characteristics.
2. Through quality inspection by third-party companies, each stage of production is monitored, so users can be sure that DMS Seal Manufacturer is the most responsible bedding in the market.
3. DMS Seal Manufacturer has ensured quality. It has been carefully examined from the aspects of CRI, lumens, power, voltage, etc. in production.
4. This product is free from defects such as stains fabric defects, open seams, misaligned button, and buttonholes, defective zippers, etc.
5. This product has superior quality and stable performance. It has high practical functionality and is durable in mobile phone use.
6. The product is known for its high anti-cracking capability. Its timber moisture content is controlled under 10% and its joints are glued good enough.
7. This product is good for promotional items and newly released products. It is useful for both large and small items and can be put outdoors or indoors.
8. Dms Seals Technology Co.,limited will definitely satisfy our customers in outer packing for u seal band .
9. Dms Seals Technology Co.,limited use standard export pallets to pack our u seal band .
10. Dms Seals Technology Co.,limited applies excellent customer service policy and standard procedures.
11. Dms Seals Technology Co.,limited has the right customer service skills.
Rod Diameter | Groove Diameter | Groove Width | Bore Diameter | Radius | Step Width |
d f8/h9 | D H9 | L+0.2 | D1±0.1 | R | a |
20-39.9 | d+7.6 | 4.2 | d+1.0 | 0.4 | 3.0 |
40-69.9 | d+8.8 | 6.3 | d+1.5 | 1.0 | 3.0 |
70-139.9 | d+12.2 | 8.1 | d+2.0 | 1.2 | 4.0 |
140-399.9 | d+16.0 | 11.5 | d+2.0 | 2.0 | 5.0 |
400-649.9 | d+24.0 | 15.5 | d+2.5 | 2.5 | 8.0 |
650-999.9 | d+27.3 | 18.0 | d+2.5 | 2.5 | 10.0 |
Application and properties

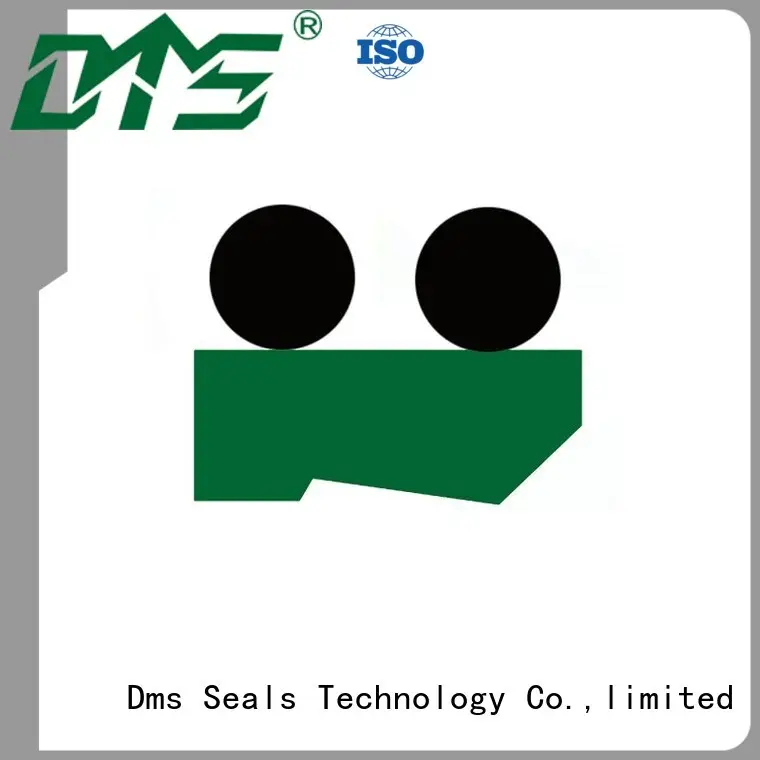

For a wide range of applications, such as agricultural machinery, injection molding machines, forklifts, cranes and so on. Consisting of a sealing ring and two O-Rings for improving overall tightness, low friction, non stick slip phenomenon, good adjustment and positioning ability, high reliability, accepting the full load of work pressure in a short time.
Standard materials
Sealing ring: filled PTFE / PU
O-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | -36℃+200℃ | 5 m/s | hydraulic oil, flame retardant liquid, water and others | |
d f8 | D H9 | H | L+0.2 | Order No. |
20 | 27.6 | 4.0 | 4.2 | DPT1-20*27.6*4.2 |
30 | 37.6 | 4.0 | 4.2 | DPT1-30*37.6*4.2 |
36 | 43.6 | 4.0 | 4.2 | DPT1-36*43.6*4.2 |
45 | 53.8 | 6.0 | 6.3 | DPT1-45*53.8*6.3 |
56 | 64.8 | 6.0 | 6.3 | DPT1-56*64.8*6.3 |
65 | 73.8 | 6.0 | 6.3 | DPT1-65*73.8*6.3 |
80 | 92.2 | 7.7 | 8.1 | DPT1-80*92.2*8.1 |
95 | 107.2 | 7.7 | 8.1 | DPT1-95*107*8.1 |
110 | 122.2 | 7.7 | 8.1 | DPT1-110*122*8.1 |
Company Features
1. Being a production base of u seal band in China, Dms Seals Technology Co.,limited has run properly over the years. As the leading supplier of seal guard wiper , DMS Seal Manufacturer is honored to be responsible for the main business in this industry. Since the establishment of Dms Seals Technology Co.,limited, it has developed rapidly.
2. Dms Seals Technology Co.,limited has advanced production line and professional R&D team. Dms Seals Technology Co.,limited masters advanced manufacturing technology. Recommended by amount of clients, car window scraper seal is of high quality. Dms Seals Technology Co.,limited has strong technical force and complete testing methods.
3. Dms Seals Technology Co.,limited will improve the production and processing technology of cylinder rod wiper products. Ask online! Advancing with times to catch up with trend will keep DMS Seal Manufacturer always ahead in this industry. Ask online! Our vision is to become the dominant and well-known cylinder rod seal supplier domestically and abroad. Ask online! Taking the vision of and adhering to the concept of are two important points in DMS Seal Manufacturer. Ask online! The build of a corporate core value system of wiper seals drives DMS Seal Manufacturer to grow. Ask online!
