DMS Seal Manufacturer u seal manufacturers wholesale for piston and hydraulic cylinder

Company Advantages
1. The quality criterions of DMS Seal Manufacturer meet the national and international level. They include GB standards for textile products, requirements stipulated by American ATTCC and ASTM, and the UK's BS standards.
2. The design of DMS Seal Manufacturer u seal manufacturers is based on a scientific basis. Factors, including limb alignment, the stress put on the joints, walking posture, and weight distribution of the pelma, have all been carefully considered during design.
3. DMS Seal Manufacturer has been tested complying with quality parameters. They are colorfastness, flammability, seam strength, size-change, and seam-twisting.
4. During the mass manufacturing process of DMS Seal Manufacturer , quality control is of the utmost importance. The sewing quality, fabric strength, size accuracy, and stitching details will be inspected strictly.
5. DMS Seal Manufacturer has been tested for quality. All its main components, including the gears, pistons, engines and other moving parts, are tested to meet our established standards.
6. The product has stable colorfastness. It will not fade even under the conditions of the fray, sunlight exposure, and washing.
7. The product is distinguished by good luster on the surface. The surface polishing treatment has removed any defections and improved its finish.
8. It is renowned for security. It is built with safety mechanisms, including overpressure protection, which aims to prevent any accidents.
9. It is definitely a cost-effective investment for business owners. Using this product will bring profits to them by cutting expenditure on labor and increasing productivity.
10. I used to concern that the heat generating by the mechanical equipment will damage the seal parts, but it proved that it is totally not affected by the heat. - Said one of our customers.
11. When customized, the colorful graphics and innovative shapes will make this product a part of a creative marketing strategy.
12. Products play an important role in reducing or eliminating the amount of human tasks that need to be completed, which helps reduce labor costs.

1. Installation Recommendation

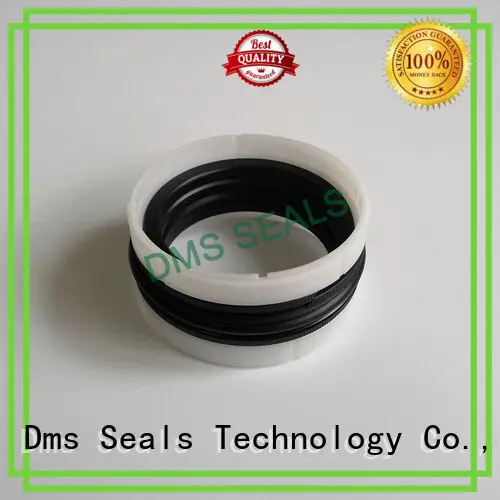

DBM/TPM is a double acting sealing and guiding element, Consisting of an elastomer, two back-up rings and two guide rings. Dynamic and static properties of the elastomer play a good sealing role, The back-up ring prevents the elastomer from being squeezed into the sealing gap, the function of the guide ring is to guide the piston in the cylinder and absorb the radial force. The sealing is mainly used for piston and hydraulic cylinder, such as bulldozers, excavators, loaders, hydraulic gates and agricultural machinery.

Guide ring: filled PTFE / PA

Back-up ring: TPU polymer

Elastomer: NBR

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃ +120℃	0.5 m/s	petroleum base hydraulic oil，nonflammable hydraulic oil, environmental protection hydraulic oil

5. Installation Dimensions

Cylinder Dia.	Groove Size					Order No.
DN H9	d1	L1 +0.2	d2 h9	d3 h11	L2 +0.1
20 22 25	11 13 15	13.5 13.5 12	17 19 21	19 21 23	2.1 2.1 4	TPM20*11*13.5*2.1 TPM22*13*13.5*2.1 TPM25*15*12*4
25 25 25	15 15 16	12.5 16.4 13.5	22 21.45 22	24 23.5 24	4 6.35 2.1	TPM25*15*12.5*4 TPM25*15*16.4*6.35 TPM25*16*13.5*2.1
28 30 30	19 17 21	13.5 15.4 13.5	25 26.5 27	27 28.5 29	2.1 6.35 2.1	TPM28*19*13.5*2.1 TPM30*17*15.4*6.35 TPM30*21*13.5*2.1
32 32 35	22 22 25	15.5 16.4 15.5	28 28.5 31	31 30.5 34	2.6 6.35 2.6	TPM32*22*15.5*2.6 TPM32*22*16.4*6.35 TPM35*25*15.5*2.6
35 40 40	25 24 26	16.4 18.4 15.5	31.4 35.4 36	33.5 38.5 39	6.35 6.35 2.6	TPM35*25*16.4*6.35 TPM40*24*18.4*6.35 TPM40*26*15.5*2.6
40 40 40	30 30 30	12.5 12.5 16.4	36 37 35.4	38 39 38.5	4 4 6.35	TPM40*30*12.5*4 TPM40*30*12.5*4 TPM40*30*16.4*6.35
42 45 45	28 29 31	15.5 18.4 15.5	38 40.4 41	41 43.5 44	2.6 6.35 2.6	TPM42*28*15.5*2.6 TPM45*29*18.4*6.35 TPM45*31*15.5*2.6
45 50 50	35 34 34	16.4 18.4 20.5	40.4 45.4 46	43.5 48.5 49	6.35 6.35 3.1	TPM45*35*16.4*6.35 TPM50*34*18.4*6.35 TPM50*34*20.5*3.1
55 55 56	39 39 40	18.4 20.5 20.5	50.36 51 52	53.5 54 55	6.35 3.1 3.1	TPM55*39*18.4*6.35 TPM55*39*20.5*3.1 TPM56*40*20.5*3.1
60 60 63	44 44 47	18.4 20.5 18.4	55.4 56 58.4	58.5 59 61.5	6.35 3.1 6.35	TPM60*44*18.4*6.35 TPM60*44*20.5*3.1 TPM63*47*18.4*6.35
63 63 65	47 47 49	19.4 20.5 20.5	58.4 59 61	61.5 62 64	6.35 3.1 3.1	TPM63*47*19.4*6.35 TPM63*47*20.5*3.1 TPM65*49*20.5*3.1
65 70 70	50 50 54	18.4 22.4 20.5	60.4 64.2 66	63.5 68.3 69	6.35 6.35 3.1	TPM65*50*18.4*6.35 TPM70*50*22.4*6.35 TPM70*54*20.5*3.1
