DMS Seal Manufacturer vacuum gasket material for liquefied gas

Company Advantages
1. The careful design of DMS Seal Manufacturer gasket manufacturers is provided by our experienced designers for the convenience of users. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level
2. Aiming to make people's lives easier and more comfortable, this product can just be utilized and enjoyed in everyday life. The high pressure seals have strong wear resistance to hard conditions
3. The materials used have determined the durability and performance of this product. DMS Seals provides professional design and production of high-grade o-ring seals

1. Application and properties

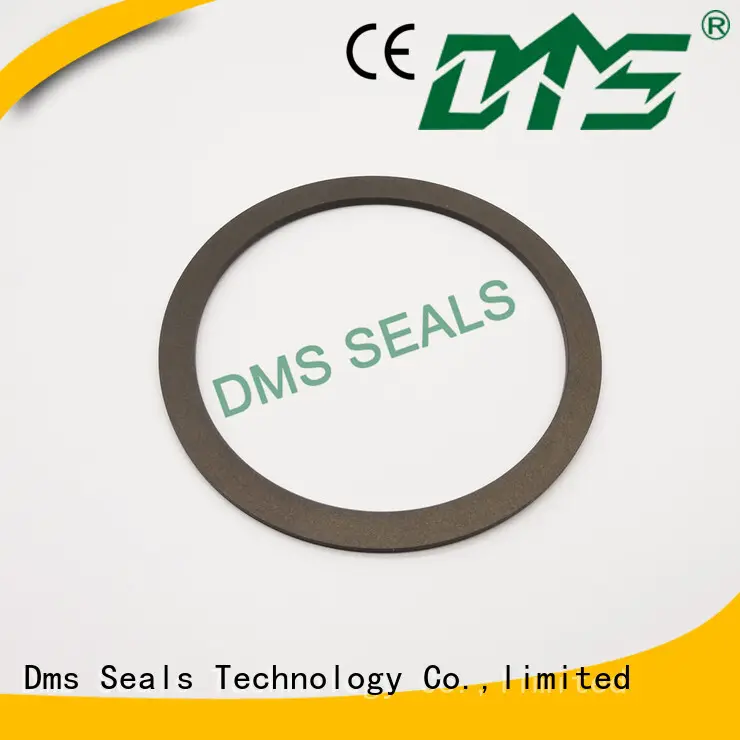

BRT are used to prevent the seal from being squeezed, and improve the pressure resistance of the seal. The standard cut shape is beveled. If there is no problem with the installation, a non-cut ring can also be used.

2. Standard materials

Bronze filled PTFE

3. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +260℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

4. Installation Dimensions

d	D	T	Order No.
40 45 45	50 55 60	3 3 3	BRT40*50*3 BRT45*55*3 BRT45*60*3
50 50 50	60 63 65	3 3 3	BRT50*60*3 BRT50*63*3 BRT50*65*3
55 55 55	65 68 70	3 3 3	BRT55*65*3 BRT55*68*3 BRT55*70*3
60 60 60	70 73 75	3 3 3	BRT60*70*3 BRT60*73*3 BRT60*75*3
60 65 65	80 75 78	3 3 3	BRT60*80*3 BRT65*75*3 BRT65*78*3
65 65 70	80 85 80	3 3 3	BRT65*80*3 BRT65*85*3 BRT70*80*3
70 70 70	83 85 90	3 3 3	BRT70*83*3 BRT70*85*3 BRT70*90*3
75 75 75	85 88 90	3 3 3	BRT75*85*3 BRT75*88*3 BRT75*90*3
75 80 80	95 90 93	3 3 3	BRT75*95*3 BRT80*90*3 BRT80*93*3
80 80 85	95 100 100	3 3 3	BRT80*95*3 BRT80*100*3 BRT85*100*3
85 90 90	105 105 110	3 3 3	BRT85*105*3 BRT90*105*3 BRT90*110*3
95 95 100	110 115 115	3 3 3	BRT95*110*3 BRT95*115*3 BRT100*115*3
100 105 105	120 120 125	3 3 3	BRT100*120*3 BRT105*120*3 BRT105*125*3
110 110 115	125 130 130	3 3 3	BRT110*125*3 BRT110*130*3 BRT115*130*3
115 120 120	135 135 140	3 3 3	BRT115*135*3 BRT120*135*3 BRT120*140*3
125 125 130	140 145 145	3 3 3	BRT125*140*3 BRT125*145*3 BRT130*145*3
130 140 150	150 160 170	3 3 3	BRT130*150*3 BRT140*160*3 BRT150*170*3
160 170 180	180 190 200	3 3 3	BRT160*180*3 BRT170*190*3 BRT180*200*3

Company Features
1. Used to be a domestically focused enterprise, we are now expanding our overseas markets in different countries due to increasing market demands. They include Japan, UK, US, Korea, and Australia.
2. To embrace green production, we have adopted different plans. We will encourage reuse, recycle, and recovery of resources during production, which helps us decrease the amount of waste that ends up in the landfill.
