DMS Seal Manufacturer value rubber vacuum gasket seals for air compressor

Company Advantages
1. It is icing on the cake for DMS Seal Manufacturer to carry out the latest design for vacuum gasket .
2. We develop DMS Seal Manufacturer vacuum gasket using hi-tech tools and equipment.
3. The application of the advanced technology has made DMS Seal Manufacturer ptfe gasket material more perfect on appearance.
4. The product is of the highest levels of safety and quality.
5. With different functions, vacuum gasket can be used in ptfe gasket material .
6. The product offers consistent performance that customers can count on.
7. vacuum gasket can meet the more and more complicate requirements from the market with ptfe gasket material , whcih has wide development prospects.
8. Long operation life absolutely manifests its superior performance.
9. The use of this product helps revolutionize the production approach. Manufacturers can see from increased productivity and reduced labor costs.
10. People will love its easy operating function. It does not require people to handle the complicated control interface or touching buttons.
11. There is no doubt that it really contributes to cut electricity costs. People can invest in this product to save money.
12. The product can considerably improve the overall efficiency of life or work. By using this product, people would feel their life or work become more relax and easier.
13. Using this product for a time will offset the initial cost of replacing the conventional alternatives, and it will yield an implicit return on investment for people.

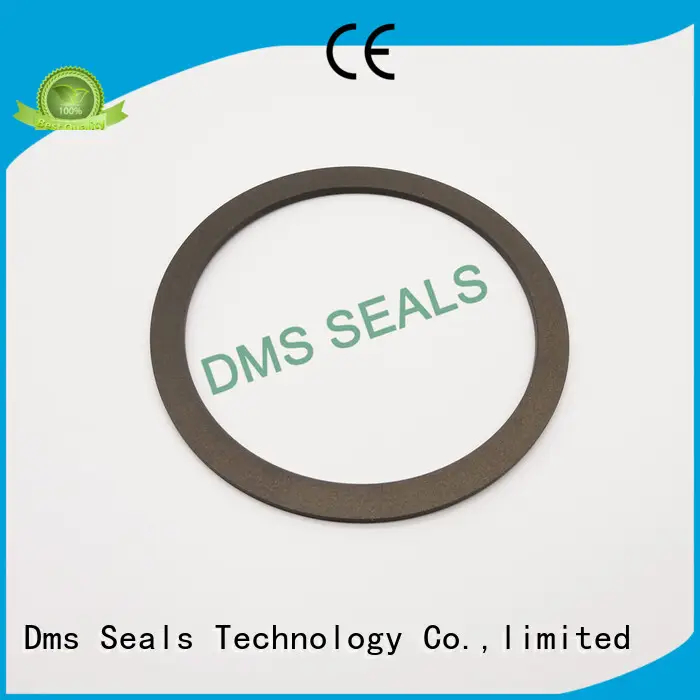

1. Application and properties

BRT are used to prevent the seal from being squeezed, and improve the pressure resistance of the seal. The standard cut shape is beveled. If there is no problem with the installation, a non-cut ring can also be used.

2. Standard materials

Bronze filled PTFE

3. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +260℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

4. Installation Dimensions

d	D	T	Order No.
40 45 45	50 55 60	3 3 3	BRT40*50*3 BRT45*55*3 BRT45*60*3
50 50 50	60 63 65	3 3 3	BRT50*60*3 BRT50*63*3 BRT50*65*3
55 55 55	65 68 70	3 3 3	BRT55*65*3 BRT55*68*3 BRT55*70*3
60 60 60	70 73 75	3 3 3	BRT60*70*3 BRT60*73*3 BRT60*75*3
60 65 65	80 75 78	3 3 3	BRT60*80*3 BRT65*75*3 BRT65*78*3
65 65 70	80 85 80	3 3 3	BRT65*80*3 BRT65*85*3 BRT70*80*3
70 70 70	83 85 90	3 3 3	BRT70*83*3 BRT70*85*3 BRT70*90*3
75 75 75	85 88 90	3 3 3	BRT75*85*3 BRT75*88*3 BRT75*90*3
75 80 80	95 90 93	3 3 3	BRT75*95*3 BRT80*90*3 BRT80*93*3
80 80 85	95 100 100	3 3 3	BRT80*95*3 BRT80*100*3 BRT85*100*3
85 90 90	105 105 110	3 3 3	BRT85*105*3 BRT90*105*3 BRT90*110*3
95 95 100	110 115 115	3 3 3	BRT95*110*3 BRT95*115*3 BRT100*115*3
100 105 105	120 120 125	3 3 3	BRT100*120*3 BRT105*120*3 BRT105*125*3
110 110 115	125 130 130	3 3 3	BRT110*125*3 BRT110*130*3 BRT115*130*3
115 120 120	135 135 140	3 3 3	BRT115*135*3 BRT120*135*3 BRT120*140*3
125 125 130	140 145 145	3 3 3	BRT125*140*3 BRT125*145*3 BRT130*145*3
130 140 150	150 160 170	3 3 3	BRT130*150*3 BRT140*160*3 BRT150*170*3
160 170 180	180 190 200	3 3 3	BRT160*180*3 BRT170*190*3 BRT180*200*3

Company Features
1. Excellent vacuum gasket and perfect service make DMS Seal Manufacturer the most popular star in the custom gaskets market. All staff from Dms Seals Technology Co.,limited are well-trained for best Gasket . The core competence of elastomeric gasket lies in ptfe gasket material .
2. Quality speaks louder than number in Dms Seals Technology Co.,limited. Our technology takes the lead in the industry of nbr gasket. Almost all technician talent for the industry of vacuum gasket work in our Dms Seals Technology Co.,limited. We've been focusing on manufacturing high quality vacuum gasket for domestic and abroad customers.
3. We operate ethically and lead with integrity, earning the trust of our employees, customers, suppliers, investors, and the communities where we live and work. We have aware of the importance of sustainability issues. We will make corresponding plans to set our actions to gear to achieve sustainable development, such as reducing waste and conserving energy resources. The motto of our company is diligence, intelligence, determination, and perseverance. We continue to uphold this motto as the basis of our management ideology. We are aware of the vital role that we play in supporting and enabling the sustainable development of society. We will reinforce our commitments through socially responsible manufacturing.
