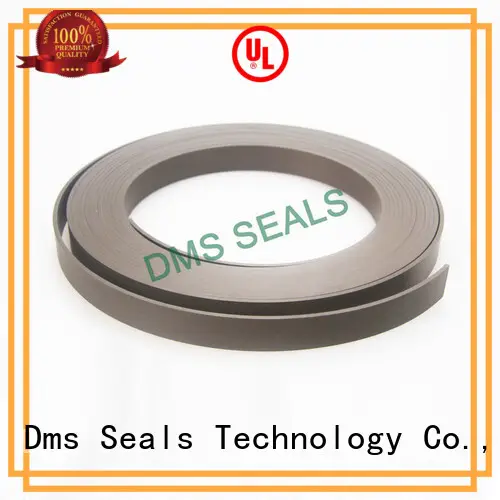

DMS Seal Manufacturer virgin oil seal ring guide strip for sale

Company Advantages
1. Bringing the latest idea into designing the bearing element makes it more attractive.
2. bearing element we produced is characterized by its its high quality and durability.
3. bearing element is featured by its oil seal ring .
4. bearing element is developed with high-performance oil seal ring materials.
5. The independent design of bearing element provides guarantees for our own brand promotion at the source.
6. Our skilled professionals supervise the quality control throughout the production, greatly guaranteeing the quality of the product.
7. The product has passed many international certificates, its quality can be assured.
8. The product has passed the quality and performance tests conducted by the third party assigned by the clients.
9. A quality circle has been organized to detect and solve any quality issues during the production, effectively guaranteeing the quality of the product.
10. The product is rigorously examined under the supervision of skilled quality experts.
11. Whether the motivations are economic, environmental, or personal, the benefits of this product will have something to offer for everyone.
12. Whether the motivations are economic, environmental, or personal, the benefits of this product will have something to offer for everyone.
13. Whether the motivations are economic, environmental, or personal, the benefits of this product will have something to offer for everyone.

1. Installation Recommendation

2. Application and properties

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.



3. Standard materials

Filled PTFE



4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
Custom as Required	—	-55℃ +225℃	15 m/s	hydraulic oil, emulsion, and water

Piston:  L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

Rod:    L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ]  C = 3.14  k=0.8



5. Length of whole roll

Thickness	1	1.5	2	2.5	3	4	5	6
Length of whole roll ( m )	55	35	27	22	18	13	10	8

Above data only for reference, it shall follow the actual products.

Standard groove width

Groove width L2

2.5

3.2

4

4.2

5.6

6

6.3

8.1

9.7

10

12

15

18

20

25

30

40

50

The products of various width could be provided.

Standard thickness of product

Thickness W

1

1.5

1.55

2

2.5

3

4

5

6

The products of various thickness could be provided.

Company Features
1. Dms Seals Technology Co.,limited has become one of the preferred manufacturers of bearing element . We have been working to diversify our product range. Dms Seals Technology Co.,limited has been providing quality oil seal ring since its inception. We have become a reliable manufacturer in the industry. Dms Seals Technology Co.,limited has long been providing customers with high-quality products, services, and information. Our main product is shaft oil seals .
2. We expect no complaints of oil seal manufacturer from our customers. The design of bearing element makes it more comfortable for human body. bearing element is made by most popular materials which make it easily to be installed with a reasonable price. Our work team are experts who have been experienced in bearing element field for years.
3. Enterprise culture is the driving force for sustaining DMS Seal Manufacturer's development. Contact us! Since the establishment of DMS Seal Manufacturer, we have continued to produce original and competitive bearing element . Contact us! The devotion of DMS Seal Manufacturer is to provide the best bearing element with the competitive price. Contact us!

DMS Seal Manufacturer virgin oil seal ring guide strip for sale

bearing element

Type:professional、 Type1:dfa
