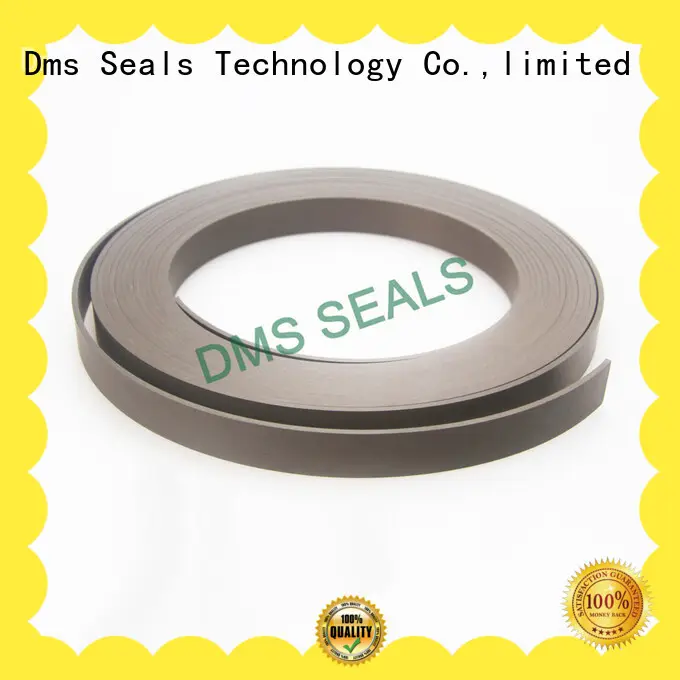

DMS Seal Manufacturer virgin rubber seal design wear ring for sale

Company Advantages
1. DMS Seal Manufacturer rubber seal design has an appealing and functional design developed by expert team.
2. We have an internal process in place to manufacture DMS Seal Manufacturer rubber seal design .
3. DMS Seal Manufacturer rubber seal design is constructed of durable and eco-friendly materials.
4. In order to control quality better, we have established a complete quality control system.
5. The rigorous testing process makes the product be high quality and stable performance.
6. The product is quality-assured as we have established a good quality management system to prevent any possible defects.
7. You can replace our bearing element for new one without reason within 7 days after buying.
8. DMS Seal Manufacturer is highly recommended for our rubber seal design in addition to our oil seal ring .
9. Abundant talent reserves and superior design capabilities for bearing element are the primary force of Dms Seals Technology Co.,limited's rapid development.
10. Dms Seals Technology Co.,limited has established rubber seal design production base to meet the steady increasing requirement of domestic bearing element manufacturing industry.
11. Dms Seals Technology Co.,limited keeps well informed about bearing element technical developments, new application and new products in the field.

1. Installation Recommendation

2. Application and properties

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.



3. Standard materials

Filled PTFE



4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
Custom as Required	—	-55℃ +225℃	15 m/s	hydraulic oil, emulsion, and water

Piston:  L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

Rod:    L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ]  C = 3.14  k=0.8



5. Length of whole roll

Thickness	1	1.5	2	2.5	3	4	5	6
Length of whole roll ( m )	55	35	27	22	18	13	10	8

Above data only for reference, it shall follow the actual products.

Standard groove width

Groove width L2

2.5

3.2

4

4.2

5.6

6

6.3

8.1

9.7

10

12

15

18

20

25

30

40

50

The products of various width could be provided.

Standard thickness of product

Thickness W

1

1.5

1.55

2

2.5

3

4

5

6

The products of various thickness could be provided.
