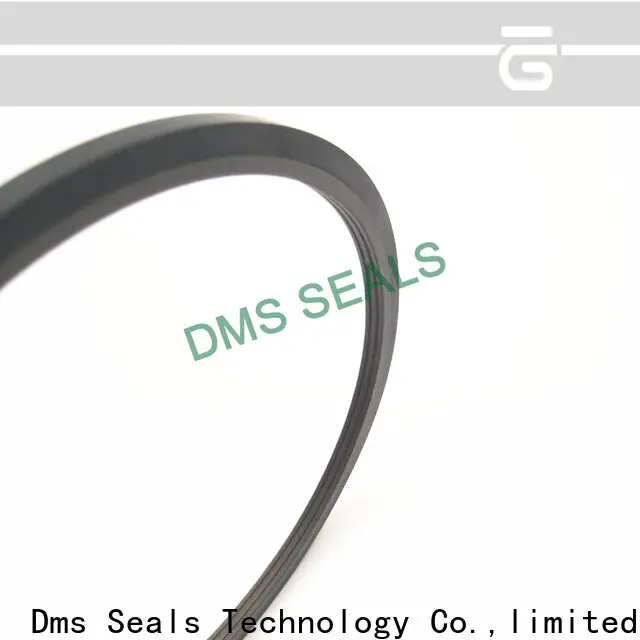

DMS Seal Manufacturer wheel seal manufacturers glyd ring for larger piston clearance

Company Advantages
1. The production process of DMS Seal Manufacturer follows the general method in the industry. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals
2. This product served in the industry allows users to create more benefits. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system
3. wheel seal manufacturers is applied to for its merits of . As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience

1. Installation Recommendation

2. Application and properties

The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.



3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
6-1600mm	0-35MPa	-30℃ +200℃	1.5 m/s	general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.

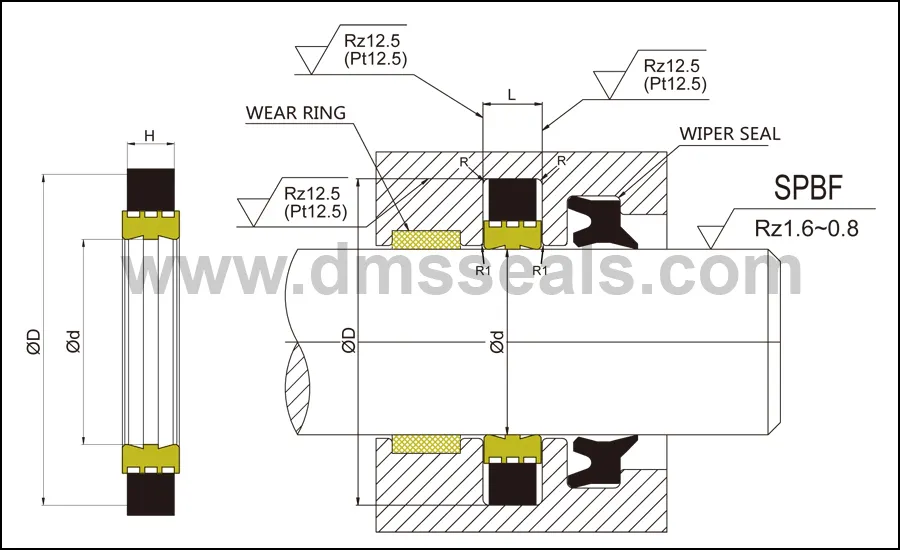

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
18 20 22	27 29 31	4.3 4.3 4.3	4.5 4.5 4.5	SPN18*27*4.3 SPN20*29*4.3 SPN22*31*4.3
27 31.5 47	36 40.5 60	4.3 4.3 7.3	4.5 4.5 7.5	SPN27*36*4.3 SPN31.5*40.5*4.3 SPN47*60*7.3
53 60 65	66 73 78	7.3 7.3 7.3	7.5 7.5 7.5	SPN53*66*7.3 SPN60*73*7.3 SPN65*78*7.3
70 75 80	83 88 93	7.3 7.3 7.3	7.5 7.5 7.5	SPN70*83*7.3 SPN75*88*7.3 SPN80*93*7.3
90 100 110	103.4 113.4 123.4	7.3 7.3 7.3	7.5 7.5 7.5	SPN90*103.4*7.3 SPN100*113.4*7.3 SPN110*123.4*7.3
120 130 140	133.4 143.4 153.4	7.3 7.3 7.3	7.5 7.5 7.5	SPN120*133.4*7.3 SPN130*143.4*7.3 SPN140*153.4*7.3

Company Features
1. DMS Seal Manufacturer has been working on providing the most competitive wheel seal manufacturers and offering the one-stop services. Dms Seals Technology Co.,limited has a complete system for QC.
2. We supply our rubber seal prijs with competitive price and good-quality.
3. In view of the interests of customers, DMS Seal Manufacturer is able to ensure the durability of diaphragm seal manufacturer . Sustainability has long since been a part of our promise, so we attach great importance to ensuring our products conserve resources and increase efficiency – both in terms of their production and in their subsequent utilization phases.
