Application Scope
The Oil Seal Manufacturer of Dms Seals is applicable to the following areas.In addition to providing high-quality products, Dms Seals also provides effective solutions based on the actual conditions and the needs of different customers.
Company Advantages1. Examples of what is examined when testing of DMS Seal Manufacturer include: sections that can entrap fingers and other body parts; sharp edges and corners; shear and squeeze points; stability, structural strength, and durability.
2. Quality workmanship in DMS Seal Manufacturer will be checked carefully. The seaming, stitching, pressing, and washing workmanship will be all carried out by professional workers with the aid of advanced manufacturing machines.
3. The design of DMS Seal Manufacturer complies with the universal law in furniture modeling design field. The design integrates both variations and unity, such as the contrast between light and dark and the unification of style and lines.
4. The quality of this product has been highly evaluated by authoritative testing organizations based on a strict performance test and quality test.
5. Our professional quality control team and authoritative third party have carefully and rigorously reviewed the product quality.
6. In the production process, advanced testing equipment is used to test the products to ensure the high performance and consistency of the products.
7. Under the supervision of professional quality inspectors, the products are inspected at every stage of production to ensure the superior quality of the products.
8. The product is able to last quite a bit long time and brings charm to people's appearance, which will be a bigger return on investment for people.
9. The product is essential for healthy drinking water. It can effectively remove most of the contaminant present in the original water source.
10. This product is able to reduce neither the amount nor the weight of stuff that people bring with. It is a great helper.
11. This product does not fade over time and has no burrs and flaking off problems, which are facts that many consumers agree on.
12. This is truly great shoes. So comfortable and supportive. I feel secure in it. - One of our customers said.
Installation Recommendation
![undefined undefined]()
Application and properties

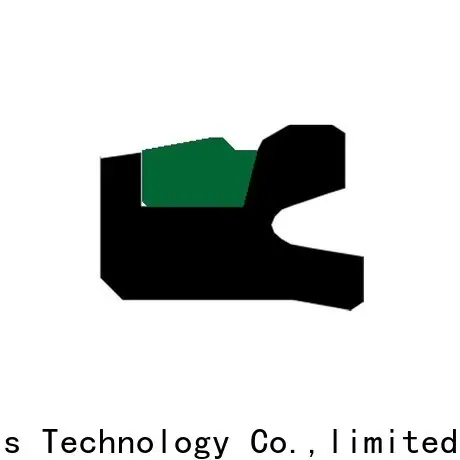

Apply to the hydraulic cylinder of piston sealing, generally used in conjunction with the guide sleeve. The seal ring and piston conforming to be a symmetric section to achieve the sealing performance. The Non-standard Y-ring has the function of sealing and provides the elastic force to the sealing ring and compensates for the abrasion. Very high pressure stability under pressure and harsh conditions, high wear resistance, low friction, no crawling phenomenon.
Sealing ring: filled PTFE
Y-Ring: NBR / PU
Working Conditions
Working Conditions |
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-45MPa | -30℃+100℃ | 1m/s | hydraulic oil, flame retardant liquid, water and others |
Installation Dimensions
D H8 | d h9 | H | L+0.2 | e | Order No. |
40
43
44 | 32
35
36 | 7
7
7 | 7.5
7.5
7.5 | 6
6
6 | DDA40*32*7.5
DDA43*35*7.5
DDA44*36*7.5 |
45
48
50 | 37
40
42 | 7
7
7 | 7.5
7.5
7.5 | 6
6
6 | DDA45*37*7.5
DDA48*40*7.5
DDA50*42*7.5 |
55
60
63 | 45
45
53 | 7
12
8 | 7.5
13
8.5 | 6
6
6 | DDA55*45*7.5
DDA60*45*13
DDA63*53*8.5 |
63
65
65 | 48
50
50 | 12
12
12 | 13
8.5
13 | 6
6
6 | DDA63*48*13
DDA65*50*8.5
DDA65*50*13 |
70
75
78 | 55
60
63 | 12
12
12 | 13
13
13 | 6
6
6 | DDA70*55*13
DDA75*60*13
DDA78*63*13 |
80
85
87 | 65
70
72 | 12
12
12 | 13
13
13 | 6
6
6 | DDA80*65*13
DDA85*70*13
DDA87*72*13 |
90
95
100 | 75
80
85 | 12
12
12 | 13
13
13 | 7
7
7 | DDA90*75*13
DDA95*80*13
DDA100*85*13 |
105
110
115 | 90
95
100 | 12
12
12 | 13
13
13 | 7
7
7 | DDA105*90*13
DDA110*95*13
DDA115*100*13 |
120
125
130 | 105
110
115 | 12
12
12 | 13
13
13 | 7
7
7 | DDA120*105*13
DDA125*110*13
DDA130*115*13 |
140
145
150 | 120
125
130 | 12
12
12 | 13
13
13 | 7
10
10 | DDA140*120*13
DDA145*125*13
DDA150*130*13 |
160
160
170 | 140
140
150 | 12
16
16 | 13
17
17 | 10
10
10 | DDA160*140*13
DDA160*140*17
DDA170*150*17 |
180
185
190 | 160
165
170 | 16
16
16 | 17
17
17 | 10
10
10 | DDA180*160*17
DDA185*165*17
DDA190*170*17 |
200
210
220 | 180
190
200 | 16
16
16 | 17
17
17 | 10
10
10 | DDA200*180*17
DDA210*190*17
DDA220*200*17 |
Company Features1. Dms Seals Technology Co.,limited has long been dedicated to the industry of 4 inch hydraulic cylinder seal kit . Dms Seals Technology Co.,limited is a
o-ring seal supplier that is pioneering in China and famous in the world. At the leading position, DMS Seal Manufacturer has been always focusing on the quality of service and rubber piston seal . Dms Seals Technology Co.,limited is a leading supplier of high-performance hydraulic u seal products in China. DMS Seal Manufacturer is a brand of professional [核心关键词 manufacturer in China.
2. We have an excellent R&D team. It consists of technical experts such as product developers and computer scientists. They can design great products. The product design team is a real asset to our company. The designers are imaginative and experienced. They are always able to create thoughtful and practical products. We are backed by a professional management team. Each member of our high-caliber management team possesses leadership capabilities to guide our business operation in a smooth manner.
3. We are actively advancing activities that contribute to sustainability to meet society's expectations based on an accurate perception of the impact of our operations on society and our social responsibilities. We always adhere to the business philosophy of 'high-quality products and good service'. With far-sighted vision, we are committed to introducing useful manufacturing technologies and equipment, and cultivate a group of professional customer service teams. Our operational philosophy is 'Customers top, innovation first'. We have been striving to build up a good and peaceful business relationship with our partners and try our best to meet our their demands. Contact us! To ensure that we all act with the utmost standards, we have created an environmental policy for everyone to adhere to. The environmental policy is under the direct control of the managing director of the company. Contact us!
DMS Seal Manufacturer Wholesale 4 inch hydraulic cylinder seal kit Suppliers for pneumatic equipment
4 inch hydraulic cylinder seal kit
Type:
![DMS Seal Manufacturer Wholesale 4 inch hydraulic cylinder seal kit Suppliers for pneumatic equipment 6]()
