DMS Seal Manufacturer Wholesale cylinder rod seal Supply for pneumatic equipment
- Dms Seals is committed to providing excellent services for consumers, including pre-sales inquiry, in-sales consulting and return and exchange service after sales.
1. The new type of cylinder rod seal designed by our engineers is very ingenious and practical.
2. Whatever in color or in size, our cylinder rod seal surpasses similar products in market.
3. For safe transportation of cylinder rod seal , we use air bubble inside, standard export carton outside, and wooden package.
4. The design concept of cylinder rod seal have a broad development prospect.
5. At the same time, this cylinder rod seal has the characteristics of .
6. The product is absolutely a distinctive outdoor advertising method. Its giant shape and eye-attracting images help build up the boisterous and uproarious scene. 卖点、特色句]
7. The product is chemically stable. It is not subject to aging under high temperature nor corroding in the organic solvent.
8. The product features perfect stitching. It has passed the stitch density check: visually count the number of stitches per inch of fabric on it.
9. The product features great efficiency. Its compressor effectively 'sucks in' the refrigerant from the evaporator and compresses it in a cylinder to make hot, high-pressure gases.
10. Comprehensive service about the cylinder rod seal has helped DMS Seal Manufacturer win more customers.
11. Strict tests at every stage are carried out to ensure the quality of cylinder rod seal .
12. Dms Seals Technology Co.,limited has strong financial strength and strong scientific research capabilities.
13. Over the years, Dms Seals Technology Co.,limited has formed a strong R&D strength and a sound sales and service system.
14. Dms Seals Technology Co.,limited has a professional design service system.
Groove Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross Section | X-Ring Seal Cross Section | |||
Standard Application | Light Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 30MPa | d2 | W |
15 - 39.9 | 40 - 79.9 | DN - 11.0 | 4.2 | 1.0 | 0.25 | 0.15 | 0.10 | 3.53 | 1.78 |
40 - 79.9 | 80 - 132.9 | DN - 15.5 | 6.3 | 1.3 | 0.3 | 020 | 0.15 | 5.33 | 1.78 |
80 - 132.9 | 133 - 252.9 | DN - 21.0 | 8.1 | 1.8 | 0.3 | 0.20 | 0.15 | 7.00 | 2.62 |
133 - 252.9 | -- | DN - 24.5 | 8.1 | 1.8 | 0.3 | 0.20 | 0.15 | 7.00 | 2.62 |
253 - 462.9 | -- | DN - 28.0 | 9.5 | 2.5 | 0.45 | 0.30 | 0.25 | 8.40 | 3.53 |
463 - 700 | -- | DN - 35.0 | 11.5 | 3.0 | 0.55 | 0.40 | 0.35 | 10.00 | 5.33 |
Application and properties
Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Recommended for double-acting pistons as piston-type energy storage, supporting cylinder and positional cylinder. Double safety with low friction and high elasticity, good dynamic and static sealing performance, larger extrusion clearances can be allowed, at the same time with the function of holding pressure, less leakage in the hydraulic cylinder. Simple groove, small installation space, excellent sliding performance, no crawling phenomenon.

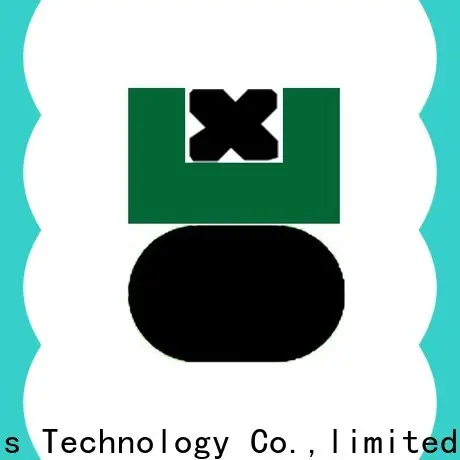

Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-40MPa | -30℃+200℃ | 2 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimension |
d h9 | D1 H9 | L1+0.2 | ||
70 | 59 | 4.2 | DAQ70*59*4.2 | 56.74*3.53 |
80 | 64.5 | 6.3 | DAQ80*64.5*6.3 | 62.87*5.33 |
85 | 64 | 8.1 | DAQ85*64*8.1 | 63*7.0 |
95 | 79.5 | 6.3 | DAQ95*79.5*6.3 | 78.74*5.33 |
100 | 79 | 8.1 | DAQ100*79*8.1 | 78*7.0 |
110 | 94.5 | 6.3 | DAQ110*94.5*6.3 | 91.44*5.33 |
115 | 94 | 8.1 | DAQ115*94*8.1 | 93*7.0 |
125 | 109.5 | 6.3 | DAQ125*109.5*6.3 | 107.32*5.33 |
130 | 109 | 8.1 | DAQ130*109*8.1 | 108*7.0 |
150 | 129 | 8.1 | DAQ150*129*8.1 | 126.37*7.0 |
180 | 159 | 8.1 | DAQ180*159*8.1 | 158.12*7.0 |
210 | 189 | 8.1 | DAQ210*189*8.1 | 183.52*7.0 |
240 | 219 | 8.1 | DAQ240*219*8.1 | 215.27*7.0 |
Company Features
1. Dms Seals Technology Co.,limited is one of China's more efficient cylinder rod seal makers. For many consumers who pursue air piston seal , DMS Seal Manufacturer has gained an cults from them. The main business of DMS Seal Manufacturer covers the manufacturing and sales service of hydraulic sealing solutions . Dms Seals Technology Co.,limited has outstanding talents and technology advantages. DMS Seal Manufacturer by Dms Seals Technology Co.,limited is a well-known brand in China and has considerable influence in China.
2. We have a qualified project management team. They are able to provide a combination of development and manufacturing solutions to our clients and manage the delivery of high-quality products to customers. We have set up a project management team. They have a wealth of industrial experience and expertise in managing, especially in the manufacturing industry. They can guarantee a smooth order process. All DMS Seal Manufacturer branded products enjoy a high reputation and get good recognization. They are sold across the country and exported to many countries.
3. We always provide better service for every customer with . Call now! Dms Seals Technology Co.,limited will provide quality professional services. Call now! In our factories, our sustainability process drives decreased energy consumption by installing new technologies and more efficient facilities while optimizing business and manufacturing processes. Call now! Our mission is to provide the best product solutions by exceeding customer's expectations on product and service. We are committed to getting great interactions to better knowing our customers and partnering with them to offer technical solutions. The company strives to operate in accordance with sound ethical business principles with partners and clients. We resolutely refuse any vicious business competition. Call now!
DMS Seal Manufacturer Wholesale cylinder rod seal Supply for pneumatic equipment
cylinder rod seal
Type:
