DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
DMS Seal Manufacturer Wholesale forklift hydraulic cylinder seals company for sale
- Dms Seals adopts advanced production and management technology to carry out organic production. We also maintain close partnerships with other well-known domestic companies. We are committed to providing customers with quality products and professional services.
1. The raw materials of DMS Seal Manufacturer go through demanding qualitative selection criteria in terms of nature constancy and the absence of contaminants.
2. Because of the high levels of heat produced by DMS Seal Manufacturer , the aluminum PCB board that contains a thin layer of dielectric that allows quicker heat dissipation is attached to printed boards.
3. DMS Seal Manufacturer forklift hydraulic cylinder seals is professionally designed. It is carried out by our designers who know about jewelry ring and setting basics and understand the essentials of jewelry design.
4. DMS Seal Manufacturer has passed through a series of tests. These tests include the salt spray, surface wear, electroplating, polish as well as surface spraying.
5. DMS Seal Manufacturer understands that trust and quality matter.
6. This product has passed a series of international certifications.
7. The product is highly acclaimed among customers for high durability and high cost performance.
8. DMS Seal Manufacturer has high commercial value due to its practicability.
9. is considered essential to Dms Seals Technology Co.,limited's competitive advantage as a forklift hydraulic cylinder seals manufacturer.
10. Dms Seals Technology Co.,limited has established forklift hydraulic cylinder seals business organizations in many regions, basically forming a strategic layout.
11. Dms Seals Technology Co.,limited has the best products with professional sales and technical team.
12. innovated by Dms Seals Technology Co.,limited is highly marketable in world markets.

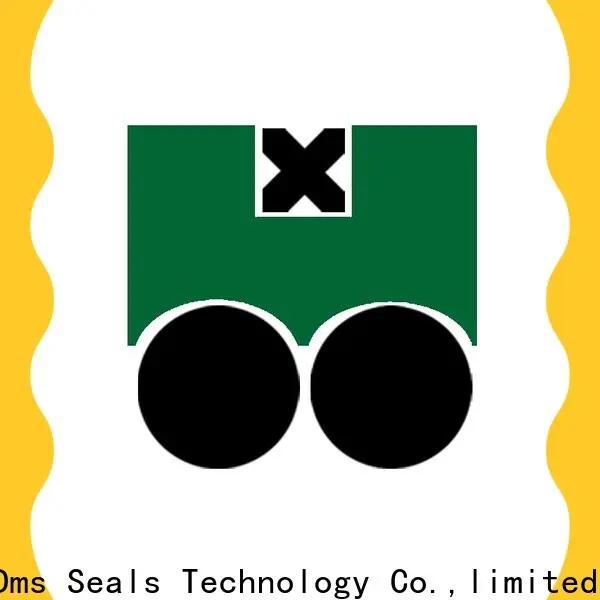

Groove Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross Section | X-Ring Seal Cross Section | |||
Standard Application | Heavy Duty Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 30MPa | d2 | W |
40 - 79.9 | 25 - 140 | DN - 10.0 | 6.3 | 0.6 | 0.3 | 0.2 | 0.15 | 2.62 | 1.78 |
80 - 132.9 | 50 - 250 | DN - 13.0 | 8.3 | 1.0 | 0.4 | 0.3 | 0.15 | 3.53 | 2.62 |
133 - 252.9 | 100 - 480 | DN - 18.0 | 12.3 | 1.3 | 0.4 | 0.3 | 0.20 | 5.33 | 3.53 |
463 - 700 | 425 - 700 | DN - 31.0 | 16.3 | 1.8 | 0.5 | 0.4 | 0.30 | 7.00 | 5.33 |
Application and properties
Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Available for piston accumulator, clamping cylinder and positioning cylinder, especially recommended for heavy duty and large diameter applications. Double safety with low friction and high elasticity, Low gas permeability, excellent sliding performance in high pressure applications, no crawling phenomenon, simple groove structure, easy installation.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -30℃+200℃ | 3 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimension |
d h9 | D1 H9 | L1+0.2 | ||
40 | 30 | 6.3 | DAQ2-40*30*6.3 | 29.82*2.62 |
48 | 38 | 6.3 | DAQ2-48*38*6.3 | 37.77*2.62 |
55 | 45 | 6.3 | DAQ2-55*45*6.3 | 44.12*2.62 |
65 | 55 | 6.3 | DAQ2-65*55*6.3 | 53.64*2.62 |
80 | 67 | 8.3 | DAQ2-80*67*8.3 | 66.27*3.53 |
95 | 82 | 8.3 | DAQ2-95*82*8.3 | 78.97*3.53 |
110 | 97 | 8.3 | DAQ2-110*97*8.3 | 94.84*3.53 |
125 | 112 | 8.3 | DAQ2-125*112*8.3 | 110.72*3.53 |
140 | 122 | 12.3 | DAQ2-140*122*12.3 | 120.02*5.33 |
Company Features
1. Dms Seals Technology Co.,limited is one of the key enterprises producing in China. Specializing in developing and manufacturing of forklift hydraulic cylinder seals , Dms Seals Technology Co.,limited seizes opportunities, meets challenges, and finally stands out in the market. Over years of development, Dms Seals Technology Co.,limited has become a global company that provides high quality . Dms Seals Technology Co.,limited has been considered as an experienced and is a licensed manufacturer and supplier of hydraulic cylinder piston rings in China. Dms Seals Technology Co.,limited offers customers with professional production and product design.
2. Dms Seals Technology Co.,limited has an well-recognized hydraulic o rings suppliers specialist team. Dms Seals Technology Co.,limited is strictly in accordance with the standard production. In order to win the leading position in the external seal market, DMS Seal Manufacturer invested a lot of money to strengthen its technical strength to produce high quality products. DMS Seal Manufacturer has a high level of double acting seal production technology.
3. We aim to improve customer satisfaction rate. Under this goal, we will pull together the talented customer team and technicians to offer better services. Customers are the key factor in our success. We try our best to gain deep knowledge of the market trends of the products and closely cooperate with other companies to create distinctive and targeted products. As a product manufacturer, we always look for materials that could be given a second life, continuously upgrade our packaging methods, and reducing resources wastes to improve sustainability. We follow the tenet of 'Keep Improving and Pursue Excellence'. We absorb in international advanced technology through constant learning and communication with peers, aiming to improve ourself. Sustainable practices are embedded into our value chain. We are committed to managing our economic, environmental and social impacts throughout our value chain.
