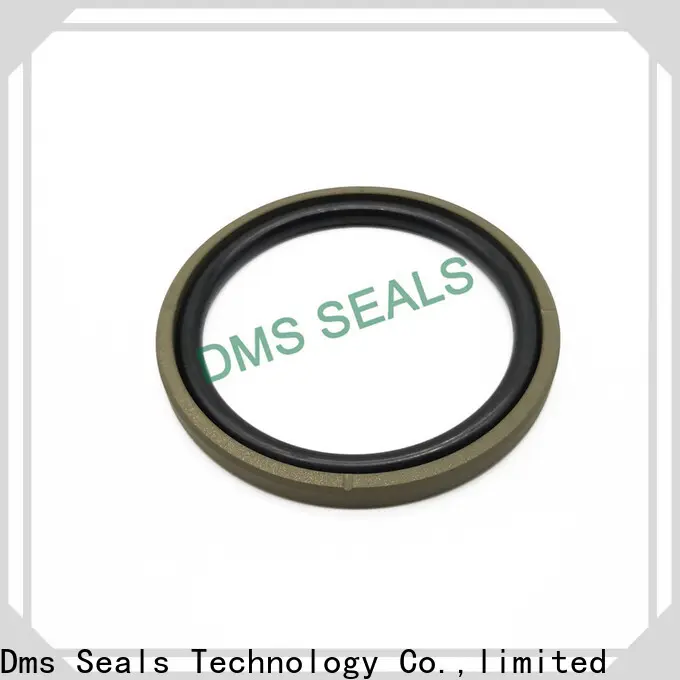

DMS Seal Manufacturer Wholesale hydraulic cylinder piston rings with nbr or fkm o ring for sale

Company Advantages
1. DMS Seal Manufacturer hydraulic cylinder piston rings is produced under standard 5S operating environment.
2. hydraulic cylinder piston rings follows the design idea of 'speciality and meticulousness'.
3. Any color and any size are available for hydraulic cylinder piston rings .
4. DMS Seal Manufacturer has been paid 100% attention from the internal structure to the appearance.
5. Our factory guarantees the production of this product to the highest standards.
6. All DMS Seal Manufacturer products have undergone rigorous quality checks before reaching to customers.
7. hydraulic cylinder piston rings has quickly developed with the good products performance.
8. The core component of hydraulic cylinder piston rings is excellent, primarily shows in .
9. Users will enjoy a more comfortable night's rest, even with night sweats, as this product dries very fast no matter how much sweat the user has.
10. Using this environmentally friendly product reflects environmental responsibility and enhances the brand's loyalty to a growing community of environmentally conscious consumers.
11. This product requires very few workers, which helps to reduce labor costs. This will ultimately help manufacturers gain a competitive advantage.
12. It balances the body temperature to reduce overheating that can cause sweating, giving a better and more comfortable night's sleep.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. Dms Seals Technology Co.,limited is a distinguished hydraulic cylinder piston rings manufacturer. Dms Seals Technology Co.,limited, focusing on the production and R&D of shaft wiper seal , is famous at home and abroad. Dms Seals Technology Co.,limited has its advantaged predominance since its establishment.
2. DMS Seal Manufacturer introduced key technologies to produce rod seal tool . DMS Seal Manufacturer hosts some of the world's leading researchers in hyd seal field. Dms Seals Technology Co.,limited has different technical staff and management technicians.
3. With rich experience and mature technical products, Dms Seals Technology Co.,limited enjoys a high reputation in the domestic and foreign markets. We are always committed to becoming the top one brand in industry in China. We work towards achieving cost savings at various stages such as purchasing raw materials, shortening lead time, and reducing manufacturing expenses through waste reduction. Welcome to visit our factory!
