DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
DMS Seal Manufacturer wholesale hydraulic seals for business for pressure work and sliding high speed occasions
1. wholesale hydraulic seals is well designed to meet the market demand. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians
2. The success of DMS Seal Manufacturer can not be achieved without the efforts of all the staff. DMS Seals provides professional design and production of high-grade o-ring seals
3. Several tests have been carried out at each stage of production to ensure consistent product quality. DMS o-ring seal has advanced machines and equipment for its production
1. Installation Recommendation
2. Installation Sizes
Rod Diameter | Outer Diameter | Groove Width | Install Chamfer | Radius | Radial Clearance S max. | ||
d f8 | D H8 | L+0.2 | L1 | R1 | 10MPa | 20MPa | 40MPa |
50-69.9 | d+15.0 | 7.5 | 5.0 | 0.4 | 0.5 | 0.4 | 0.3 |
70-149.9 | d+20.0 | 10.1 | 6.0 | 0.4 | 0.7 | 0.5 | 0.4 |
200-244.9 | d+25.0 | 12.5 | 8.5 | 0.4 | 0.8 | 0.6 | 0.5 |
245-519.9 | d+30.0 | 15.0 | 10.0 | 0.8 | 0.9 | 0.7 | 0.6 |
520-769.9 | d+35.0 | 17.5 | 13.0 | 1.2 | 1.0 | 0.8 | 0.7 |
770-1500 | d+40.0 | 20.0 | 15.0 | 1.2 | 1.0 | 0.8 | 0.7 |

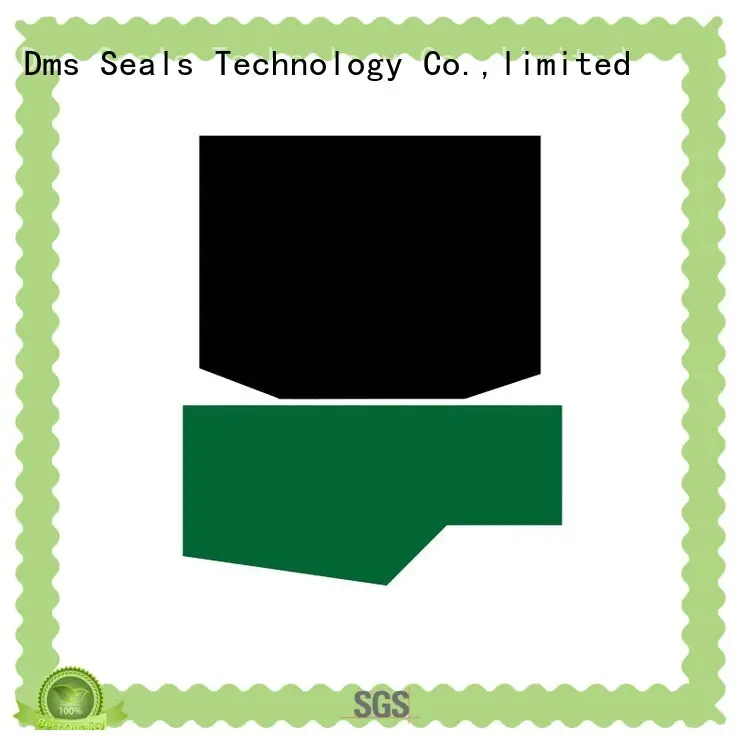

3. Application and properties
Applied for larger diameter piston rods and heavy-duty hydraulic rod sealing system in hard working conditions. High pressure resistance, excellent resistance to gap extrusion, wear-resisting.
4. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
5. Working Conditions
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3 - 1600mm | 0 - 60MPa | -30℃ +100℃ | 5 m/s | hydraulic oil, flame retardant liquid, water, gas |
6. Installation Dimensions
Outer Dia. | Groove Width | Order No. | |
d f8 | D H8 | L+0.2 | |
50 60 70 | 65 75 85 | 7.5 7.5 7.5 | GSJ-W50*65*7.5 GSJ-W60*75*7.5 GSJ-W70*85*7.5 |
75 80 100 | 95 100 120 | 10 10 10 | GSJ-W75*95*10 GSJ-W80*100*10 GSJ-W100*120*10 |
110 115 120 | 130 135 140 | 10 10 10 | GSJ-W110*130*10 GSJ-W115*135*10 GSJ-W120*140*10 |
130 140 145 | 150 160 165 | 10 10 10 | GSJ-W130*150*10 GSJ-W140*160*10 GSJ-W145*165*10 |
150 160 170 | 170 180 190 | 10 10 10 | GSJ-W150*170*10 GSJ-W160*180*10 GSJ-W170*190*10 |
175 180 200 | 195 200 220 | 10 10 10 | GSJ-W175*195*10 GSJ-W180*200*10 GSJ-W200*220*10 |
230 240 250 | 255 265 275 | 12.5 12.5 12.5 | GSJ-W230*255*12.5 GSJ-W240*265*12.5 GSJ-W250*275*12.5 |
260 265 270 | 285 290 295 | 12.5 12.5 12.5 | GSJ-W260*285*12.5 GSJ-W265*290*12.5 GSJ-W270*295*12.5 |
280 290 300 | 305 315 325 | 12.5 12.5 12.5 | GSJ-W280*305*12.5 GSJ-W290*315*12.5 GSJ-W300*325*12.5 |
Company Features
1. Dms Seals Technology Co.,limited has a wealth of manufacturing experience wholesale hydraulic seals .
2. Dms Seals Technology Co.,limited has full range production line.
3. The goal of Dms Seals Technology Co.,limited is to make our products and services a great success. Contact us!
