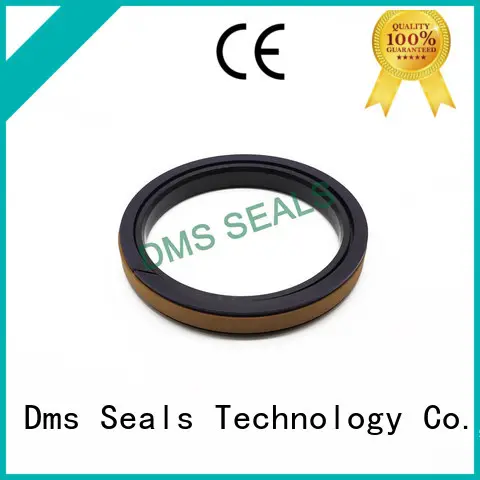

DMS Seal Manufacturer Wholesale molded seals for business for pneumatic equipment

Company Advantages
1. Quality test for DMS Seal Manufacturer will be carried through. Important tests for its solar modules such as exposing the cells to heat and cold conditions to check its performance.
2. DMS Seal Manufacturer is processed by different advanced machines such as CNC cutting machine, lathe, drilling machine, etc. All these machines are in charge of professional technicians.
3. During the development of DMS Seal Manufacturer , several factors will be seriously considered. Insulation materials, dielectric medium, permittivity, voltage grade, and even the air humidity will be thought of by the R&D team.
4. DMS Seal Manufacturer has been tested. It is tested and certified by the Electrical and Mechanical Services Department, meeting the requirements of the Mandatory Energy Efficiency Labelling Scheme (MEELS) and Voluntary Energy Efficiency Labelling Scheme (VEELS).
5. The flexibility of this kind of product is very fine and it is very light with the characters of deformation resistance and long service life.
6. This product is safe to use. With all components being strictly manufactured, it prevents leakage current which would cause harm to users.
7. The product is notable for its strong wear resistance. Its structure, built with heavy-metals, mainly alloy and steel, can withstand daily industrial heavy use.
8. This product is extremely durable in use, and it is able to last for a long time without losing its luster.
9. The product is designed to efficiently produce high quality purified water that can be used for drinking water operations or any operation calling for pure clean water.
10. Unlike the expensive and unrenewable energy supply, this product is powered by the truly renewable resource which can be utilized in all areas and is available every day.
11. The product can survive in highly-challenging industrial environments, often in places where battery access is difficult or impossible.

1. Installation Recommendation

2. Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17

Company Features
1. Dms Seals Technology Co.,limited owns a large production base and professional R&D team for molded seals . DMS Seal Manufacturer successfully implemented advanced technology to lay a solid foundation for the long-term development of the company. Through our assiduous pay, DMS Seal Manufacturer now is growing into a main piston washer supplier and producer in the market.
2. Dms Seals Technology Co.,limited has a team of expert hydraulic press seals designers and manufacturing engineers. DMS Seal Manufacturer has skilled staff to produce exquisite custom oil seals . Dms Seals Technology Co.,limited utilizes an abundance of technologies to generate premium quality solutions. Dms Seals Technology Co.,limited has a large number of high-level technicians, senior skilled workers and excellent management personnel. Dms Seals Technology Co.,limited is a professional company centered on technology enhancement.
3. Customer satisfaction has always been our main philosophy. As we continue to break through our business to achieve higher goals, we look forward to working with you. Get info! The value of our company can be expressed through our corporate philosophy. This philosophy is ' Focus on one thing, and do it well, really well.' Get info! Our staff always adhere to the principle of customer first. Get info! In the future, we will develop our own brands and innovate value-added products and services to enhance global competitiveness. Get info!
