DMS Seal Manufacturer Wholesale rod end seals Suppliers to high and low speed

Company Advantages
1. The offered DMS Seal Manufacturer is produced using modern technology in conformance with the set industry standards.
2. is designed and developed in tandem with industry norms and standards.
3. DMS Seal Manufacturer is accurately manufactured using state-of-the-art production technology.
4. DMS Seal Manufacturer is made from high grade material and is endowed with the latest features.
5. DMS Seal Manufacturer is developed with cutting-edge technology in compliance with set industry norms.
6. This product features high consistency, stable performance, and accurate precision. For example, it reacts quickly and flexibly to the electronic signals.
7. This product is hard yet it is typically smooth and pleasantly cool to touch. Its finish is made of high-quality ceramic glaze which is finely fired.
8. The product is waterproof. The polyester material has almost zero water absorption and the water cannot come into contact with the inner canopy.
9. This product has proper air permeability. Its fabrics are made of permeable substances that easily block out the moisture.
10. Due to its very good characteristics, the market application range of products has gradually expanded.
11. The product has earned good reputation and trust from clients at home and abroad.
12. This product has been widely used in various fields.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter	Outer Diameter	Groove Width	Install Chamfer	Radius	Radial Clearance                S max.
d f8	D H8	L+0.2	L1	R1	10MPa	20MPa	40MPa
50-69.9	d+15.0	7.5	5.0	0.4	0.5	0.4	0.3
70-149.9	d+20.0	10.1	6.0	0.4	0.7	0.5	0.4
200-244.9	d+25.0	12.5	8.5	0.4	0.8	0.6	0.5
245-519.9	d+30.0	15.0	10.0	0.8	0.9	0.7	0.6
520-769.9	d+35.0	17.5	13.0	1.2	1.0	0.8	0.7
770-1500	d+40.0	20.0	15.0	1.2	1.0	0.8	0.7

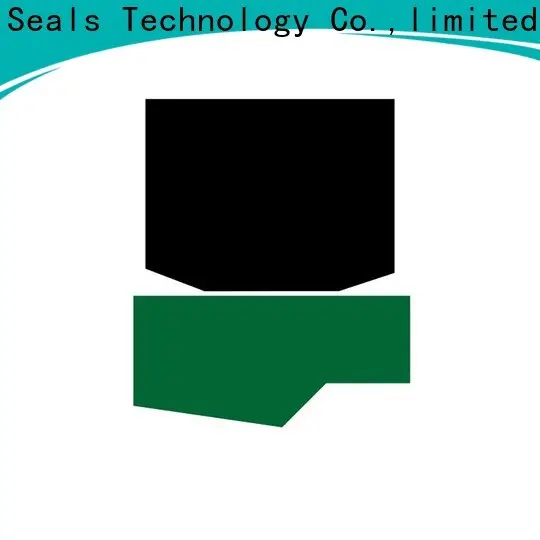

3. Application and properties

Applied for larger diameter piston rods and heavy-duty hydraulic rod sealing system in hard working conditions. High pressure resistance, excellent resistance to gap extrusion, wear-resisting.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	5 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d f8	D H8	L+0.2
50 60 70	65 75 85	7.5 7.5 7.5	GSJ-W50*65*7.5 GSJ-W60*75*7.5 GSJ-W70*85*7.5
75 80 100	95 100 120	10 10 10	GSJ-W75*95*10 GSJ-W80*100*10 GSJ-W100*120*10
110 115 120	130 135 140	10 10 10	GSJ-W110*130*10 GSJ-W115*135*10 GSJ-W120*140*10
130 140 145	150 160 165	10 10 10	GSJ-W130*150*10 GSJ-W140*160*10 GSJ-W145*165*10
150 160 170	170 180 190	10 10 10	GSJ-W150*170*10 GSJ-W160*180*10 GSJ-W170*190*10
175 180 200	195 200 220	10 10 10	GSJ-W175*195*10 GSJ-W180*200*10 GSJ-W200*220*10
230 240 250	255 265 275	12.5 12.5 12.5	GSJ-W230*255*12.5 GSJ-W240*265*12.5 GSJ-W250*275*12.5
260 265 270	285 290 295	12.5 12.5 12.5	GSJ-W260*285*12.5 GSJ-W265*290*12.5 GSJ-W270*295*12.5
280 290 300	305 315 325	12.5 12.5 12.5	GSJ-W280*305*12.5 GSJ-W290*315*12.5 GSJ-W300*325*12.5

Company Features
1. Dms Seals Technology Co.,limited boasts its strong R&D capability and has gained many patents for rod end seals . With years of experience in push rod seal industry, Dms Seals Technology Co.,limited has been stable suppliers of many famous company. Focused on the seals for air cylinders industry for many years, hydraulic cylinder seals and wipers has grown to be a vanguard enterprise. By cause of the strategy of rod seals or piston seal , DMS Seal Manufacturer has gained more balanced and diversified development. Dms Seals Technology Co.,limited has great capital capability to invest in R&D department.
2. We house many state-of-the-art facilities, including manufacturing machines and quality testing equipment. They are all introduced from developed countries and are effective in helping us achieve continuous quality control. We have an experienced research and development team. They embrace a wealth of expertise and industry know-how, which enables them to provide technical services and to help clients quickly and efficiently to complete product development. Our factory holds a wide range of advanced production facilities. These facilities are mainly introduced from the United States, Japan, and Germany and robust enough to ensure the smooth progress of our production plan.
3. Dms Seals Technology Co.,limited must constantly strive to innovate and provide the most professional case hydraulic seal kits . Get quote! Dms Seals Technology Co.,limited would like to offer customers with top quality and good service. Get quote! The unity of and can help DMS Seal Manufacturer to fulfill our dreams. Get quote! It proves to be necessary to use cultural power to activate productivity of DMS Seal Manufacturer. Get quote! Dms Seals Technology Co.,limited focuses on creating a world-class brand with unique value creativity. Get quote!
