DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
DMS Seals 1.5 rubber gasket wholesale for preventing the seal from being squeezed
1. DMS Seals 1.5 rubber gasket effortlessly strikes the perfect balance between practicality and beauty. Seal we produced has applications in a wide range of fields
2. This product has already occupied a relative market share for its huge economic effectiveness. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience
3. The product is able to endure the extreme pressure of heat. The wood materials used last very well in the extreme heat conditions and do not outgas dangerous chemicals. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
1. Application and properties

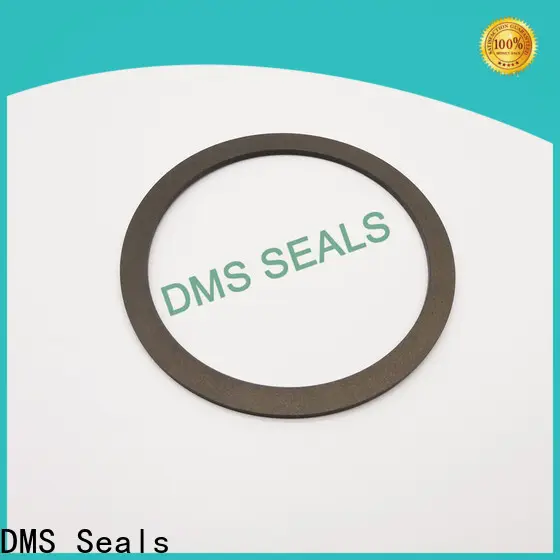

BRT are used to prevent the seal from being squeezed, and improve the pressure resistance of the seal. The standard cut shape is beveled. If there is no problem with the installation, a non-cut ring can also be used.
2. Standard materials
Bronze filled PTFE
3. Working Conditions
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3 - 1600mm | 0 - 60MPa | -45℃ +260℃ | 15 m/s | hydraulic oil, flame retardant liquid, water, gas |
4. Installation Dimensions
d | D | T | Order No. |
40 45 45 | 50 55 60 | 3 3 3 | BRT40*50*3 BRT45*55*3 BRT45*60*3 |
50 50 50 | 60 63 65 | 3 3 3 | BRT50*60*3 BRT50*63*3 BRT50*65*3 |
55 55 55 | 65 68 70 | 3 3 3 | BRT55*65*3 BRT55*68*3 BRT55*70*3 |
60 60 60 | 70 73 75 | 3 3 3 | BRT60*70*3 BRT60*73*3 BRT60*75*3 |
60 65 65 | 80 75 78 | 3 3 3 | BRT60*80*3 BRT65*75*3 BRT65*78*3 |
65 65 70 | 80 85 80 | 3 3 3 | BRT65*80*3 BRT65*85*3 BRT70*80*3 |
70 70 70 | 83 85 90 | 3 3 3 | BRT70*83*3 BRT70*85*3 BRT70*90*3 |
75 75 75 | 85 88 90 | 3 3 3 | BRT75*85*3 BRT75*88*3 BRT75*90*3 |
75 80 80 | 95 90 93 | 3 3 3 | BRT75*95*3 BRT80*90*3 BRT80*93*3 |
80 80 85 | 95 100 100 | 3 3 3 | BRT80*95*3 BRT80*100*3 BRT85*100*3 |
85 90 90 | 105 105 110 | 3 3 3 | BRT85*105*3 BRT90*105*3 BRT90*110*3 |
95 95 100 | 110 115 115 | 3 3 3 | BRT95*110*3 BRT95*115*3 BRT100*115*3 |
100 105 105 | 120 120 125 | 3 3 3 | BRT100*120*3 BRT105*120*3 BRT105*125*3 |
110 110 115 | 125 130 130 | 3 3 3 | BRT110*125*3 BRT110*130*3 BRT115*130*3 |
115 120 120 | 135 135 140 | 3 3 3 | BRT115*135*3 BRT120*135*3 BRT120*140*3 |
125 125 130 | 140 145 145 | 3 3 3 | BRT125*140*3 BRT125*145*3 BRT130*145*3 |
130 140 150 | 150 160 170 | 3 3 3 | BRT130*150*3 BRT140*160*3 BRT150*170*3 |
160 170 180 | 180 190 200 | 3 3 3 | BRT160*180*3 BRT170*190*3 BRT180*200*3 |
Company Features
1. We are at the core competitiveness of 1.5 rubber gasket production line technology.
2. The culture of buy gasket material plays a positive role in DMS Seals's development. Contact!
