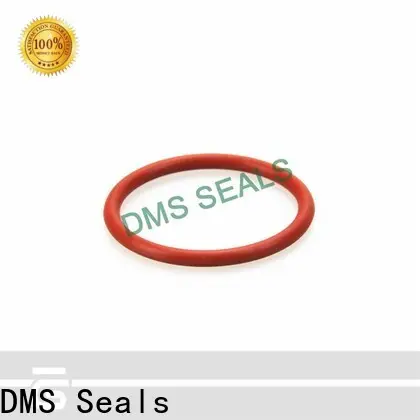

DMS Seals 1 inch rubber o ring supply for static sealing

Company Advantages
1. Being widely recognized by more customers, it turns out to be effective that DMS Seals needs to also pay attention to the design of 1 inch rubber o ring .
2. DMS Seals ensures the accuracy of specifications and the unity of structure.
3. 1 inch rubber o ring is developing toward functional, practical, and decorative types.
4. DMS Seals has compliant design and manufacturing processes through product lifecycle.
5. This product stands out for its durability. With a specially coated surface, it is not prone to oxidation with seasonal changes in humidity.
6. There are no impurities or natural wax on the product. The scouring process used in the production process helps to eliminate wax and non-fibrous impurities, such as residue from seed fragments.
7. Users will enjoy a better night off realizing that this product will not cause skin problems and leaves an amazing touch to the skin.
8. This product has good color retention. The dye molecules are tightly bound to the fibers so that they do not fall off the fibers.
9. Apart from our high quality 1 inch rubber o ring , we are highly recognized for our transparent deals and on time delivery of products.
10. The high reputation from customers confirms the high quality of 1 inch rubber o ring .
11. Selection 1 inch rubber o ring materials who are and guarantee them supplying are of vital important to Dms Seals Technology Co.,limited.

1. Installation Recommendation

2. Application and properties

Double acting seals, the sealing effect is achieved by the deformation of the section of the O-Rings, and the deformation is determined by the depth of the installation groove. Under pressure, the O-ring has a large surface tension like liquid, used for static sealing more. It is only recommended for better conditions in dynamic applications. System lubrication, pressure, temperature, sealing clearance, speed, medium and surface quality of metal parts determine the service life of O-Rings. It is not recommended if the lubrication is not sufficient during rotary motion.

3. Standard materials

Silicone

4. Performance parameter

	Static Seal	Dynamic Seal
Working Pressure	No support ring, up to 20MPa; With the support ring, up to 40MPa; With special support ring, up to 200MPa.	No support ring, up to 5MPa; With the support ring, higher pressure.
Movement Speed	Maximum reciprocating speed up to 0.5m / s; maximum rotation speed up to 2.0m/s.
Temperature	NBR: -30℃ - 100℃;  FKM: -20℃ - 220℃.

5. Wire Diameter Tolerance

Wire diameter of O-Ring (mm)	Tolerance (±mm)
0-1.8	0.08
1.80-2.65	0.09
2.65-3.55	0.10
3.55-5.30	0.13
5.30-7.00	0.15
7.00-8.00	0.18
8.00-10.00	0.21
10.00-12.00	0.25



6. Inner diameter tolerance

Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm
0.70-2.50 2.50-4.50 4.50-6.30	0.13 0.14 0.15	43.70-45.00 46.00-46.20 46.20-47.50	0.42 0.43 0.44	95.00-97.50 97.50-100.00 100.00-103.00	0.83 0.84 0.87
6.30-8.50 8.50-10.00 10.00-11.20	0.16 0.17 0.18	47.50-48.70 48.70-50.00 50.00-51.50	0.45 0.46 0.47	103.00-106.00 106.00-109.00 109.00-112.00	0.89 0.91 0.93
11.20-14.00 14.00-16.00 16.00-18.00	0.19 0.20 0.21	51.50-53.00 53.00-54.50 54.50-56.00	0.48 0.50 0.51	112.00-115.00 115.00-118.00 118.00-122.00	0.95 0.97 1.00
18.00-20.00 20.00-21.20 21.20-23.60	0.22 0.23 0.24	56.00-58.00 58.00-60.00 60.00-61.50	0.52 0.54 0.55	122.00-125.00 125.00-128.00 128.00-132.00	1.03 1.05 1.08
23.60-25.00 25.00-26.50 26.50-28.00	0.25 0.26 0.28	61.50-63.00 63.00-65.00 65.00-67.00	0.56 0.58 0.59	132.00-136.00 136.00-140.00 140.00-145-00	1.10 1.13 1.17
28.00-30.00 30.00-31.50 31.50-33.50	0.29 0.31 0.32	67.00-69.00 69.00-71.00 71.00-73.00	0.61 0.63 0.64	145.00-150.00 150.00-155.00 155.00-160.00	1.20 1.24 1.27
33.50-34.50 34.50-35.50 35.50-36.50	0.33 0.34 0.35	73.00-75.00 75.00-77.50 77.50-80.00	0.66 0.67 0.69	160.00-165.00 165.00-170.00 170.00-175.00	1.31 1.34 1.38
36.50-37.50 37.50-38.70 38.70-40.00	0.36 0.37 0.38	80.00-82.50 82.50-85.00 85.00-87.50	0.71 0.73 0.75	175.00-180.00 180.00-185.00 185.00-190.00	1.41 1.44 1.48
40.00-41.20 41.20-42.50 42.50-43.70	0.39 0.40 0.41	87.50-90.00 90.00-92.50 92.50-95.00	0.77 0.79 0.81	190.00-195.00 195.00-200.00 200.00-206.00	1.51 1.55 1.59
206.00-212.00 212.00-218.00 224.00-230.00	1.63 1.71 1.75	325.00-335.00 335.00-345.00 345.00-355.00	2.43 2.49 2.56	500.00-515.00 515.00-530.00 530.00-545.00	3.54 3.63 3.72
230.00-236.00 236.00-243.00 243.00-250.00	1.79 1.83 1.88	355.00-365.00 365.00-375.00 375.00-387.00	2.62 2.68 2.76	545.00-560.00 560.00-580.00 580.00-600.00	3.81 3.93 4.05
250.00-258.00 258.00-265.00 265.00-272.00	1.93 1.98 2.02	387.00-400.00 400.00-412.00 412.00-425.00	2.84 2.91 2.99	600.00-615.00 615.00-630.00 630.00-650.00	4.13 4.22 4.34
272.00-280.00 280.00-290.00 290.00-300.00	2.08 2.14 2.21	425.00-437.00 437.00-450.00 450.00-462.00	3.07 3.15 3.22	650.00-670.00	4.46
300.00-307.00 307.00-315.00 315.00-325.00	2.25 2.30 2.37	462.00-475.00 475.00-485.00 485.00-500.00	3.30 3.37 3.45

Company Features
1. Dms Seals Technology Co.,limited, with a presence in the domestic market, is a well-established company specializing in manufacturing . Dms Seals Technology Co.,limited primarily focuses on the production of . We have been considered as a strong competitor in this industry because of years of experience. Dms Seals Technology Co.,limited has decades of experience in manufacturing . We have been focusing on the development, design, and manufacture. Dms Seals Technology Co.,limited, an outstanding one-stop company that specializes in the developing and manufacturing of , grows rapidly in recent years. Drawing years of experience, Dms Seals Technology Co.,limited has been recognized as one of the most leading manufacturers of .
2. Our production plant is next to a place where raw materials availability is maximum. This advantage allows us to manufacture our products at relatively reasonable prices. Thanks to years of good practices, we have gained official recognition. For example, we have been awarded the title of "China Quality Award" for many times. Our company has teams of experts. The members hold expertise in their field of specialization and assist the company to produce products as per the instructions of our customers. Over the years, we have established strategic cooperation with many well-known enterprises in the United States, Canada, and some Asia countries. We have been ceaselessly improving product quality to serve more clients. The factory has carried out a strict production inspection system, especially pre-production. The implementation of this system allows us to anticipate possible problems that could affect the quality of the products and avoid uncertainties on the whole process of production.
3. is the motto of DMS Seals Group. Inquire! Dms Seals Technology Co.,limited promises prompt delivery. Inquire! The solid implementation of scientific principles of ensure Dms Seals Technology Co.,limited lead the world in the development trend of 1 inch rubber o ring . Inquire!
