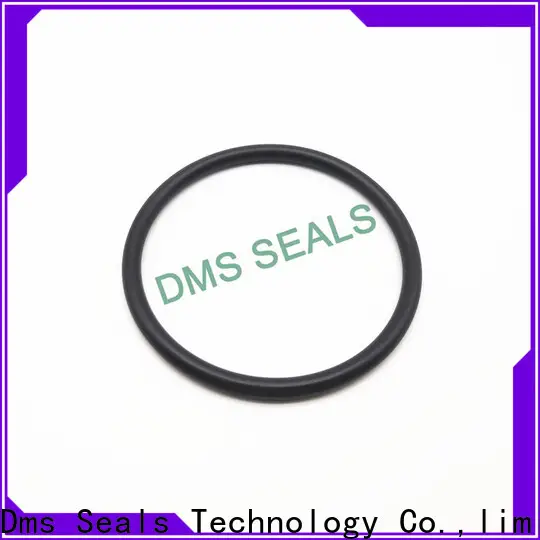

DMS Seals 5.5 inch o ring for business for sale
-
v s
1. DMS Seals is produced by using the best raw material and sophisticated technology in complete compliance with the set industry standards.
2. We have used the latest technology in the production of DMS Seals 5.5 inch o ring to make it fine in workmanship.
3. The materials of DMS Seals are good quality and its design is appealing.
4. DMS Seals is made as per the international quality standards.
5. The product has stable performance, good usability, and reliable quality, which has been approved by the authoritative third party.
6. The products have passed strict quality examination and inspection before they leave the factory.
7. Before delivery, the product must go through strict inspection to ensure high quality in performance, availability and other aspects.
8. Dms Seals Technology Co.,limited has a good market reputation in 5.5 inch o ring field.
9. DMS Seals has been highly recommended not only the good quality of 5.5 inch o ring but also the professional service.
10. Fast delivery methods enable Dms Seals Technology Co.,limited to gain a reputation in the domestic and international markets.
1. Installation Recommendation
2. Application and properties
Double acting seals, the sealing effect is achieved by the deformation of the section of the O-Rings, and the deformation is determined by the depth of the installation groove. Under pressure, the O-ring has a large surface tension like liquid, used for static sealing more. It is only recommended for better conditions in dynamic applications. System lubrication, pressure, temperature, sealing clearance, speed, medium and surface quality of metal parts determine the service life of O-Rings. It is not recommended if the lubrication is not sufficient during rotary motion.
3. Standard materials
NBR / FKM
4. Performance parameter
Static Seal | Dynamic Seal | |
Working Pressure | No support ring, up to 20MPa; With the support ring, up to 40MPa; With special support ring, up to 200MPa. | No support ring, up to 5MPa; With the support ring, higher pressure. |
Movement Speed | Maximum reciprocating speed up to 0.5m / s; maximum rotation speed up to 2.0m/s. | |
Temperature | NBR: -30℃ - 100℃; FKM: -20℃ - 220℃. | |
5. Wire Diameter Tolerance
Wire diameter of O-Ring (mm) | Tolerance (±mm) |
0-1.8 | 0.08 |
1.80-2.65 | 0.09 |
2.65-3.55 | 0.10 |
3.55-5.30 | 0.13 |
5.30-7.00 | 0.15 |
7.00-8.00 | 0.18 |
8.00-10.00 | 0.21 |
10.00-12.00 | 0.25 |
6. Inner diameter tolerance
Inner Diameter d1 mm | Tolerance ±mm | Inner Diameter d1 mm | Tolerance ±mm | Inner Diameter d1 mm | Tolerance ±mm |
0.70-2.50 2.50-4.50 4.50-6.30 | 0.13 0.14 0.15 | 43.70-45.00 46.00-46.20 46.20-47.50 | 0.42 0.43 0.44 | 95.00-97.50 97.50-100.00 100.00-103.00 | 0.83 0.84 0.87 |
6.30-8.50 8.50-10.00 10.00-11.20 | 0.16 0.17 0.18 | 47.50-48.70 48.70-50.00 50.00-51.50 | 0.45 0.46 0.47 | 103.00-106.00 106.00-109.00 109.00-112.00 | 0.89 0.91 0.93 |
11.20-14.00 14.00-16.00 16.00-18.00 | 0.19 0.20 0.21 | 51.50-53.00 53.00-54.50 54.50-56.00 | 0.48 0.50 0.51 | 112.00-115.00 115.00-118.00 118.00-122.00 | 0.95 0.97 1.00 |
18.00-20.00 20.00-21.20 21.20-23.60 | 0.22 0.23 0.24 | 56.00-58.00 58.00-60.00 60.00-61.50 | 0.52 0.54 0.55 | 122.00-125.00 125.00-128.00 128.00-132.00 | 1.03 1.05 1.08 |
23.60-25.00 25.00-26.50 26.50-28.00 | 0.25 0.26 0.28 | 61.50-63.00 63.00-65.00 65.00-67.00 | 0.56 0.58 0.59 | 132.00-136.00 136.00-140.00 140.00-145-00 | 1.10 1.13 1.17 |
28.00-30.00 30.00-31.50 31.50-33.50 | 0.29 0.31 0.32 | 67.00-69.00 69.00-71.00 71.00-73.00 | 0.61 0.63 0.64 | 145.00-150.00 150.00-155.00 155.00-160.00 | 1.20 1.24 1.27 |
33.50-34.50 34.50-35.50 35.50-36.50 | 0.33 0.34 0.35 | 73.00-75.00 75.00-77.50 77.50-80.00 | 0.66 0.67 0.69 | 160.00-165.00 165.00-170.00 170.00-175.00 | 1.31 1.34 1.38 |
36.50-37.50 37.50-38.70 38.70-40.00 | 0.36 0.37 0.38 | 80.00-82.50 82.50-85.00 85.00-87.50 | 0.71 0.73 0.75 | 175.00-180.00 180.00-185.00 185.00-190.00 | 1.41 1.44 1.48 |
40.00-41.20 41.20-42.50 42.50-43.70 | 0.39 0.40 0.41 | 87.50-90.00 90.00-92.50 92.50-95.00 | 0.77 0.79 0.81 | 190.00-195.00 195.00-200.00 200.00-206.00 | 1.51 1.55 1.59 |
206.00-212.00 212.00-218.00 224.00-230.00 | 1.63 1.71 1.75 | 325.00-335.00 335.00-345.00 345.00-355.00 | 2.43 2.49 2.56 | 500.00-515.00 515.00-530.00 530.00-545.00 | 3.54 3.63 3.72 |
230.00-236.00 236.00-243.00 243.00-250.00 | 1.79 1.83 1.88 | 355.00-365.00 365.00-375.00 375.00-387.00 | 2.62 2.68 2.76 | 545.00-560.00 560.00-580.00 580.00-600.00 | 3.81 3.93 4.05 |
250.00-258.00 258.00-265.00 265.00-272.00 | 1.93 1.98 2.02 | 387.00-400.00 400.00-412.00 412.00-425.00 | 2.84 2.91 2.99 | 600.00-615.00 615.00-630.00 630.00-650.00 | 4.13 4.22 4.34 |
272.00-280.00 280.00-290.00 290.00-300.00 | 2.08 2.14 2.21 | 425.00-437.00 437.00-450.00 450.00-462.00 | 3.07 3.15 3.22 | 650.00-670.00 | 4.46 |
300.00-307.00 307.00-315.00 315.00-325.00 | 2.25 2.30 2.37 | 462.00-475.00 475.00-485.00 485.00-500.00 | 3.30 3.37 3.45 |
Company Features
1. Dms Seals Technology Co.,limited is engaged in designing and manufacturing 5.5 inch o ring for years. Dms Seals Technology Co.,limited has many production lines to meet higher demands from customers. Devoted to producing 60mm rubber o ring , Dms Seals Technology Co.,limited has become an influential enterprise over the years. In the ever changing market, DMS Seals always understands customers' needs and make change. Dms Seals Technology Co.,limited is widely appraised by its high quality silicone ring manufacturers .
2. Our team of professionals has extensive experience and knowledge. They place great emphasis on providing quality workmanship and quick turn around times for our customers. Our company consists of a highly trained customer services team. They are driven to achieve results that enable our customers to attain new levels of excellence and gain a competitive advantage. We have a team of experts. They work hard together to develop innovative products and improve our business workflow. This enables us to be more competitive in providing products. Our factory is located in a place where has industrial clusters and it enjoys production resource advantages. This directly helps the factory save costs in sourcing raw materials.
3. The brand positioning of the DMS Seals brand is to enable each employee to serve customers with professional skills. Inquire! Dms Seals Technology Co.,limited will render more professional, more brilliant, and more perfect service. Inquire! DMS Seals provides customers with the best 117 o ring and comprehensive services. Inquire!
DMS Seals 5.5 inch o ring for business for sale
5.5 inch o ring
