Application Scope
Dms Seals's
O-ring Seal is commonly used in the following industries.Dms Seals is committed to producing quality O-ring Seal and providing comprehensive and reasonable solutions for customers.
Company Advantages1. Before DMS Seals is completed, procedures such as foot type collection, shaping, foot type molding, and matching are conducted with the help of digital tech.
2. In order to achieve better water purification effect, DMS Seals is carefully developed. The R&D members gradually optimize the filter systems, including pre-filters, mid-filters, and post-filters.
3. Materials selection of DMS Seals is based on scientific research. It focuses on the relationship between materials and environmental issues in order to propose design strategies to achieve reliable quality.
4. The product is able to retain its shape. The insole, midsole, cork filling, outer sole, and heel are all manufactured to be sturdy to withstand pressure.
5. The product is very durable. Made of hard materials, it is less likely to be affected or destroyed by any surrounding element.
6. The product is free of toxic substances. At the stage of extraction, the raw materials are totally tested to be harmless.
7. With this product, users can forget about waking up at midnight looking for more comfortable sleeping. It will maximize users' comfort during the nighttime hours.
8. This product provides supportive comfort with the luxurious feel of softness. It would be a treat for those who enjoy a fresh-air sleep experience.
9. Once applied to various industries, it will definitely increase overall production. This also helps to alleviate the fatigue of talent.
Installation Recommendation
![undefined undefined]()
Installation Sizes
D H8 | d h9 | L+0.2 | H |
˂96 | D-16.3 | 8 | 7.5 |
96-190 | D-20 | 10 | 9.5 |
191-380 | D-28 | 13 | 12.5 |
381-1000 | D-36 | 20 | 19.5 |
Application and properties

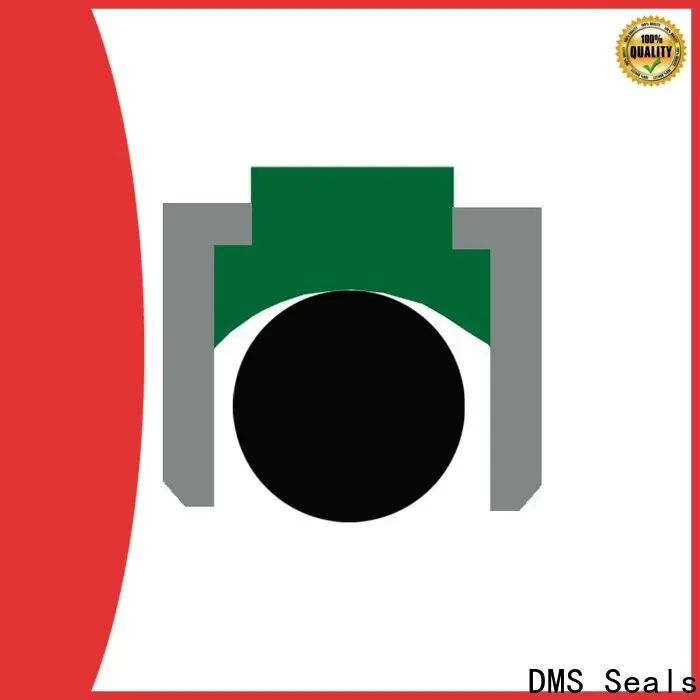

Apply to hydraulic piston sealing, Consisting of a seal ring, two L-shaped POM back-up rings and an acting force O-Ring. The back-up ring acts as a support and guide to ensure a tight sealing environment. High wear resistance, low friction, no crawling phenomenon, easy installation.
Sealing ring: filled PTFE
O-Ring: NBR / FKM
L-Ring: POM / PA
Working Conditions
Working Conditions |
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-45MPa | -30℃+100℃ | 1 m/s | hydraulic oil, flame retardant liquid, water and others |
Installation Dimensions
D H8 | d h9 | H | L | e | Order No. |
40
45
50 | 23.2
28.2
33.2 | 7.5
7.5
7.5 | 8
8
8 | 7
7
7 | DGDA40*23.2*7.5
DGDA45*28.2*7.5
DGDA50*33.2*7.5 |
56
63
65 | 39.2
46.2
48.2 | 7.5
7.5
7.5 | 8
8
8 | 7
7
7 | DGDA56*39.2*7.5
DGDA63*46.2*7.5
DGDA65*48.2*7.5 |
70
75
80 | 53.2
58.2
63.2 | 7.5
7.5
7.5 | 8
8
8 | 7
7
7 | DGDA70*53.2*7.5
DGDA75*58.2*7.5
DGDA80*63.2*7.5 |
85
90
95 | 68.2
73.2
78.2 | 7.5
7.5
7.5 | 8
8
8 | 7
7
7 | DGDA85*68.2*7.5
DGDA90*73.2*7.5
DGDA95*78.2*7.5 |
100
105
110 | 80
85
90 | 9.5
9.5
9.5 | 10
10
10 | 10
10
10 | DGDA100*80*9.5
DGDA105*85*9.5
DGDA110*90*9.5 |
115
120
125 | 95
100
105 | 9.5
9.5
9.5 | 10
10
10 | 10
10
10 | DGDA115*95*9.5
DGDA120*100*9.5
DGDA125*105*9.5 |
130
135
140 | 110
115
120 | 9.5
9.5
9.5 | 10
10
10 | 10
10
10 | DGDA130*110*9.5
DGDA135*115*9.5
DGDA140*120*9.5 |
145
150
155 | 125
130
135 | 9.5
9.5
9.5 | 10
10
10 | 10
10
10 | DGDA145*125*9.5
DGDA150*130*9.5
DGDA155*135*9.5 |
160
170
180 | 140
150
160 | 9.5
9.5
9.5 | 10
10
10 | 10
10
10 | DGDA160*140*9.5
DGDA170*150*9.5
DGDA180*160*9.5 |
190
200
210 | 170
172
182 | 9.5
12.5
12.5 | 10
13
13 | 10
12
12 | DGDA190*170*9.5
DGDA200*172*12.5
DGDA210*182*12.5 |
220
225
235 | 192
197
207 | 12.5
12.5
12.5 | 13
13
13 | 12
12
12 | DGDA220*192*12.5
DGDA225*197*12.5
DGDA235*207*12.5 |
Company Features1. With years of development, Dms Seals Technology Co.,limited has shot up the rankings of manufacturing air cylinder piston seals . We have a good reputation in the industry. Dms Seals Technology Co.,limited, with years of designing and production expertise, is among the top professional providers of . We've been offering products and production services for years. Dms Seals Technology Co.,limited is one of the best and reliable Chinese companies specialized in the production and distribution of . Dms Seals Technology Co.,limited has been concentrating on the design, manufacture, and marketing of . We are highly prestigious for our strong capacities. Dms Seals Technology Co.,limited, engaged in the R&D and manufacture of double acting seal for many years, is competitive and has won recognization in this field.
2. Every step of the production process is monitored by the most rigorous control system. Our factory is located in China Mainland. The location is very beneficial to our factory as it is in the center of sourcing raw materials. We have constructed a very large production unit for creating products. It consists of the best team of professionals, the latest machines and warehouse to keep our collection in a safe manner.
3. DMS Seals will serve hydraulic seal design with our heart and soul. Check now! With the principle of , DMS Seals does a better performance. Check now! Supplying the hydraulic piston seal installation in high quality has always been our pursuit. Check now! Our development goal is to constantly improve market competitive force and to make us to be listed among the top international brands of rubber piston seal . Check now! Upholding the working spirit of , DMS Seals provides the most convenient bucket cylinder seal kit . Check now!
DMS Seals air cylinder piston seals supply for sale
air cylinder piston seals
Type:
![DMS Seals air cylinder piston seals supply for sale 6]()
