DMS Seals air piston seal with nbr or fkm o ring to high and low speed

Company Advantages
1. DMS Seals is exquisitely designed. It is the result of a wide range of technical expertise in building systems, materials and computer equipment, as well as models.
2. DMS Seals is designed with a range of protection systems. It is built with overpressure, overload, electric circuits, and loss of voltage protection.
3. Environmental testing is one of the main steps in the production of DMS Seals . Strict inspection is carried our to eliminate toxic substances such as mercury and lead.
4. The inspection of the product is paid 100% attention. From the materials to the finished products, each step of inspection is strictly conducted and followed.
5. The product has high performance reliability and relatively long service life.
6. Our professional technical team greatly optimizes the performance of our products.
7. The product is reliable in quality because it is produced and tested according to the requirements of widely recognized quality standards.
8. As we have established a good quality management system to prevent any possible defects, the quality of products is guaranteed.
9. This DMS Seals branded product has won high attention and praise from its customers.
10. The product is enormously appreciated by our customers for its characteristics.
11. This product wins numerous customer's trust with its huge economic effectiveness.

1. Installation Recommendation

2. Installation Sizes



Piston

P<5MPa	B=d+0.9	D<60	C=4	h <7	L=h+0.5
P 5-10MPa	B=d+0.7	D 60-180	C=6.5	h =7-8	L=h+0.8
P 10-20MPa	B=d+0.4	D 180-250	C=7.5	h >8	L=h+1.0
P 20-30MPa	B=d+0.2	D 250-400	C=10	h >8	L=h+1.0

Piston Rod

P<5MPa	B=D-0.9	D<60	C=4	D1=D-1	h<7	L=h+0.5
P 5-10MPa	B=D-0.7	D 60-180	C=5.5	D1=D-1	h=7-8	L=h+0.8
P 10-20MPa	B=D-0.4	D 120-180	C=6.5	D1=D-1	h>8	L=h+1.0
P 20-30MPa	B=D-0.2	D 180-250	C=7.5	D1=D-2	h>8	L=h+1.0
P 30-40MPa	B=D-0.1	D 250-400	C=10	D1=D-2	h>8	L=h+1.0

3. Application and properties

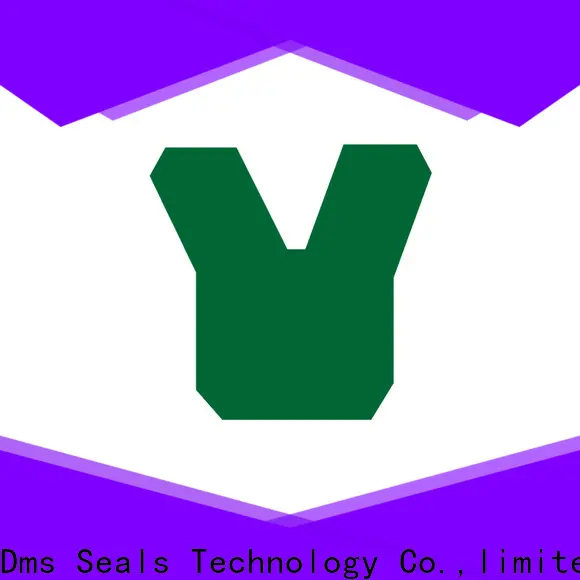

UNS seal is common use in the hydraulic cylinder, it is a typical lip seal. It can get good sealing effect in piston and piston rod. UNS seal mainly used for the piston or piston rod of heavy duty machinery and industry hydraulic.



4. Standard materials

TPU, CPU



5. Working condition

Pressure: CPU≤40MPa  TPU≤31.5MPa

Temperature: -35~+100℃

Speed: 0.5m/s

Medium: Hydraulic oils ( mineral oil-based )

Company Features
1. Dms Seals Technology Co.,limited has built a reputation based on its years of a solid foundation in developing and manufacturing . Dms Seals Technology Co.,limited is an active player in the R&D, design, production, and distribution of air piston seal . We are globally recognized. As a widely accepted and recognized manufacturer, Dms Seals Technology Co.,limited has been the preferred choice for many clients in the markets.
2. Produced by advanced machine and mature technology, hydraulic piston seals suppliers is of great performance. Dms Seals Technology Co.,limited has advanced computer-controlled machines and blameless checking equipment for hydraulic cylinder seals production. With the help of , Dms Seals Technology Co.,limited is technologically advanced in the oil seal hydraulic industry. Dms Seals Technology Co.,limited establishes complete R&D system integrated with compound optimization, formulation processing and production technology for rod seal installation . Dms Seals Technology Co.,limited is the larger of production base.
3. Dms Seals Technology Co.,limited persists in the service theory. Inquire online! Keeping moving on and never setting back are important factors to success for Dms Seals Technology Co.,limited. Inquire online! Free maintenance services can be offered in Dms Seals Technology Co.,limited. Inquire online! Dms Seals Technology Co.,limited render as its eternal tenet. Inquire online! Dms Seals Technology Co.,limited always respect the public, consumers and the environment in its words and deeds. Inquire online!

DMS Seals air piston seal with nbr or fkm o ring to high and low speed

air piston seal

Type:
