Installation Recommendation
![undefined undefined]()
Installation Sizes
D H8 | d h9 | L+0.2 | H |
˂96 | D-16.3 | 8 | 7.5 |
96-190 | D-20 | 10 | 9.5 |
191-380 | D-28 | 13 | 12.5 |
381-1000 | D-36 | 20 | 19.5 |
Application and properties

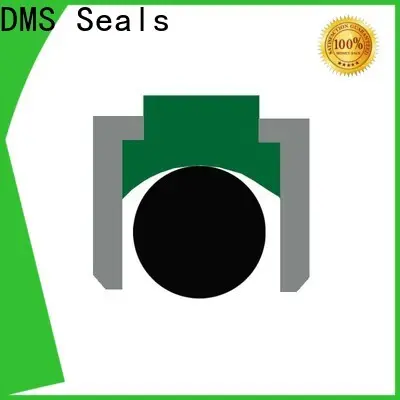

Apply to hydraulic piston sealing, Consisting of a seal ring, two L-shaped POM back-up rings and an acting force O-Ring. The back-up ring acts as a support and guide to ensure a tight sealing environment. High wear resistance, low friction, no crawling phenomenon, easy installation.
Sealing ring: filled PTFE
O-Ring: NBR / FKM
L-Ring: POM / PA
Working Conditions
Working Conditions |
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-45MPa | -30℃+100℃ | 1 m/s | hydraulic oil, flame retardant liquid, water and others |
Installation Dimensions
D H8 | d h9 | H | L | e | Order No. |
40
45
50 | 23.2
28.2
33.2 | 7.5
7.5
7.5 | 8
8
8 | 7
7
7 | DGDA40*23.2*7.5
DGDA45*28.2*7.5
DGDA50*33.2*7.5 |
56
63
65 | 39.2
46.2
48.2 | 7.5
7.5
7.5 | 8
8
8 | 7
7
7 | DGDA56*39.2*7.5
DGDA63*46.2*7.5
DGDA65*48.2*7.5 |
70
75
80 | 53.2
58.2
63.2 | 7.5
7.5
7.5 | 8
8
8 | 7
7
7 | DGDA70*53.2*7.5
DGDA75*58.2*7.5
DGDA80*63.2*7.5 |
85
90
95 | 68.2
73.2
78.2 | 7.5
7.5
7.5 | 8
8
8 | 7
7
7 | DGDA85*68.2*7.5
DGDA90*73.2*7.5
DGDA95*78.2*7.5 |
100
105
110 | 80
85
90 | 9.5
9.5
9.5 | 10
10
10 | 10
10
10 | DGDA100*80*9.5
DGDA105*85*9.5
DGDA110*90*9.5 |
115
120
125 | 95
100
105 | 9.5
9.5
9.5 | 10
10
10 | 10
10
10 | DGDA115*95*9.5
DGDA120*100*9.5
DGDA125*105*9.5 |
130
135
140 | 110
115
120 | 9.5
9.5
9.5 | 10
10
10 | 10
10
10 | DGDA130*110*9.5
DGDA135*115*9.5
DGDA140*120*9.5 |
145
150
155 | 125
130
135 | 9.5
9.5
9.5 | 10
10
10 | 10
10
10 | DGDA145*125*9.5
DGDA150*130*9.5
DGDA155*135*9.5 |
160
170
180 | 140
150
160 | 9.5
9.5
9.5 | 10
10
10 | 10
10
10 | DGDA160*140*9.5
DGDA170*150*9.5
DGDA180*160*9.5 |
190
200
210 | 170
172
182 | 9.5
12.5
12.5 | 10
13
13 | 10
12
12 | DGDA190*170*9.5
DGDA200*172*12.5
DGDA210*182*12.5 |
220
225
235 | 192
197
207 | 12.5
12.5
12.5 | 13
13
13 | 12
12
12 | DGDA220*192*12.5
DGDA225*197*12.5
DGDA235*207*12.5 |
