DMS Seals Best hydraulic cylinder shaft seals Suppliers to high and low speed
1. DMS Seals is monitored throughout the production process. DMS Seals provides professional design and production of high-grade o-ring seals
2. This product is popular for many reasons. One of the reasons is that is it is comfortable and breathable enough for people to wear, causing no allergies. DMS Seal manufacturer provides good quality and competitive price hydraulic seals
3. hydraulic cylinder shaft seals presents the characteristics with . DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals
1. Installation Recommendation
2. Installation Sizes
Rod Diameter d e8 | Groove Diameter D H9 | Groove Width L D10 | H |
20-30 | d+8 | 7.5 | 7 |
31-35 | d+8 | 7.5 | 7 |
36-44 | d+8 | 8.5 | 8 |
45-55 | d+10 | 11.0 | 10 |
56-119 | d+15 | 13.0 | 12 |
120-319 | d+20 | 17.0 | 16 |
320-499 | d+30 | 21.0 | 20 |
＞499 | d+40 | 26.5 | 25 |
3. Application and properties

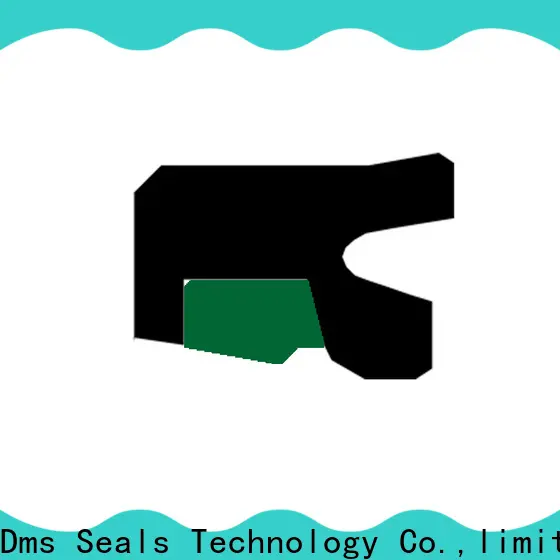

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.
4. Standard materials
Sealing ring: filled PTFE
Y-Ring: NBR / PU
5. Working Conditions
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3 - 1600mm | 0 - 60MPa | -30℃ +100℃ | 1 m/s | Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others. |
6. Installation Dimensions
Rod Dia. | Outer Dia. | Groove Width | Order No. |
d e8 | D H9 | L D10 | |
20 22 23 | 28 30 31 | 7.5 7.5 7.5 | TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5 |
25 28 30 | 33 36 38 | 7.5 7.5 7.5 | TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5 |
32 35 36 | 40 43 44 | 7.5 7.5 8.5 | TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5 |
40 42 45 | 48 50 55 | 8.5 8.5 11 | TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11 |
47 48 50 | 57 58 60 | 11 11 11 | TDI47*57*11 TDI48*58*11 TDI50*60*11 |
52 55 56 | 62 65 71 | 11 11 13 | TDI52*62*11 TDI55*65*11 TDI56*71*13 |
60 63 65 | 75 78 80 | 13 13 13 | TDI60*75*13 TDI63*78*13 TDI65*80*13 |
68 70 72 | 78 85 87 | 13 13 13 | TDI68*78*13 TDI70*85*13 TDI72*87*13 |
75 80 83 | 90 95 98 | 13 13 13 | TDI75*90*13 TDI80*95*13 TDI83*98*13 |
Company Features
1. The high quality hydraulic cylinder shaft seals makes DMS Seals exceptional.
2. DMS Seals intends to progress in exporting hydraulic seals . Get quote!
