DMS Seals Best piston cup seal suppliers company for pneumatic equipment
1. The cutting process is one of the important steps in manufacturing DMS Seals . This process is focused on two things: the aesthetics and the reduction of wastage.
2. DMS Seals is developed by experienced R&D members. They have spent many years creating more precise and functional hardware tools and accessories for different usages.
3. The design of DMS Seals features precise parameters. It's designed under the CAD construction drawing which contains detailed material requirement, dimensioning, and other workmanship details.
4. Quality scrutinization of DMS Seals will be strictly conducted. All of the textile fibers, chemical agents or additives are carefully inspected to make sure to weed out any harmful chemical substances.
5. DMS Seals is manufactured under the inspection of the QC team. It is checked in all aspects to make sure it meets the standards for indoor decorating and refurbishing materials.
6. This product is rust-resistant. Its materials such as steel, aluminum, fiber-reinforced polymer, etc. or a combination of all endow it with these physical properties.
7. The product features overheating protection. It has a secure device to prevent it from the high temperature when there is an accident.
8. This is an extremely soft bedding, which has a gentle touch for the skin,and is washed and dry well and very comfortable.
9. The product is durable enough. It does not easily wear over time and does not demand frequent maintenance and elements replacement.
10. The product has won numerous praises, meeting different customers' needs.
11. The product is utilized by a large number of people for various applications.
12. The product has won customers from all over the world.
13. DMS Seals tries and keeps our prices as low as possible.
14. This product is in great demand and we have on hand many enquiries from other countries.
Groove Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross Section | X-Ring Seal Cross Section | |||
Standard Application | Heavy Duty Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 30MPa | d2 | W |
40 - 79.9 | 25 - 140 | DN - 10.0 | 6.3 | 0.6 | 0.3 | 0.2 | 0.15 | 2.62 | 1.78 |
80 - 132.9 | 50 - 250 | DN - 13.0 | 8.3 | 1.0 | 0.4 | 0.3 | 0.15 | 3.53 | 2.62 |
133 - 252.9 | 100 - 480 | DN - 18.0 | 12.3 | 1.3 | 0.4 | 0.3 | 0.20 | 5.33 | 3.53 |
463 - 700 | 425 - 700 | DN - 31.0 | 16.3 | 1.8 | 0.5 | 0.4 | 0.30 | 7.00 | 5.33 |
Application and properties
Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Available for piston accumulator, clamping cylinder and positioning cylinder, especially recommended for heavy duty and large diameter applications. Double safety with low friction and high elasticity, Low gas permeability, excellent sliding performance in high pressure applications, no crawling phenomenon, simple groove structure, easy installation.

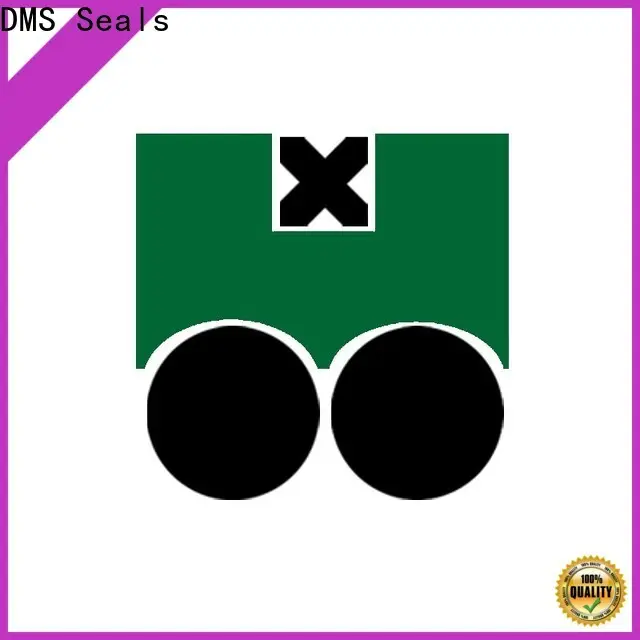

Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -30℃+200℃ | 3 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimension |
d h9 | D1 H9 | L1+0.2 | ||
40 | 30 | 6.3 | DAQ2-40*30*6.3 | 29.82*2.62 |
48 | 38 | 6.3 | DAQ2-48*38*6.3 | 37.77*2.62 |
55 | 45 | 6.3 | DAQ2-55*45*6.3 | 44.12*2.62 |
65 | 55 | 6.3 | DAQ2-65*55*6.3 | 53.64*2.62 |
80 | 67 | 8.3 | DAQ2-80*67*8.3 | 66.27*3.53 |
95 | 82 | 8.3 | DAQ2-95*82*8.3 | 78.97*3.53 |
110 | 97 | 8.3 | DAQ2-110*97*8.3 | 94.84*3.53 |
125 | 112 | 8.3 | DAQ2-125*112*8.3 | 110.72*3.53 |
140 | 122 | 12.3 | DAQ2-140*122*12.3 | 120.02*5.33 |
Company Features
1. Dms Seals Technology Co.,limited is an outstanding manufacturer integrating development, design, production, and sales of piston cup seal suppliers . We are one of the leading suppliers in the domestic market. Dms Seals Technology Co.,limited has been focusing on the R&D, design, and manufacture of since the foundation. We are a company well-recognized in the China market. Dms Seals Technology Co.,limited, a sought-after company, is renowned for the strong capacities of designing and manufacturing hydraulic piston seals .
2. Our company has a group of high-quality staff. They are versatile talents with abundant knowledge and experience in this field. Just because of their professionalism, we have achieved trust from clients. High-quality products are the foundation for us to win clients all over the world. We have strengthened the R&D capability to develop products featuring higher distinction and quality. We have collected a batch of R&D elites. They keep up with the market trends and introduce many cutting-edge technologies into development. This makes our products very distinctive in the market. We possess a team of experienced project managers. They can efficiently and effectively define and manage schedules, budgets, and deliverables throughout the project lifecycle.
3. cylinder oil seal is DMS Seals always operates. Call now! In the new age, DMS Seals will also actively use new business methods. Call now! power seal pistons delivers the DMS Seals's spiritual pursuit and carries its cultural values. Call now!
