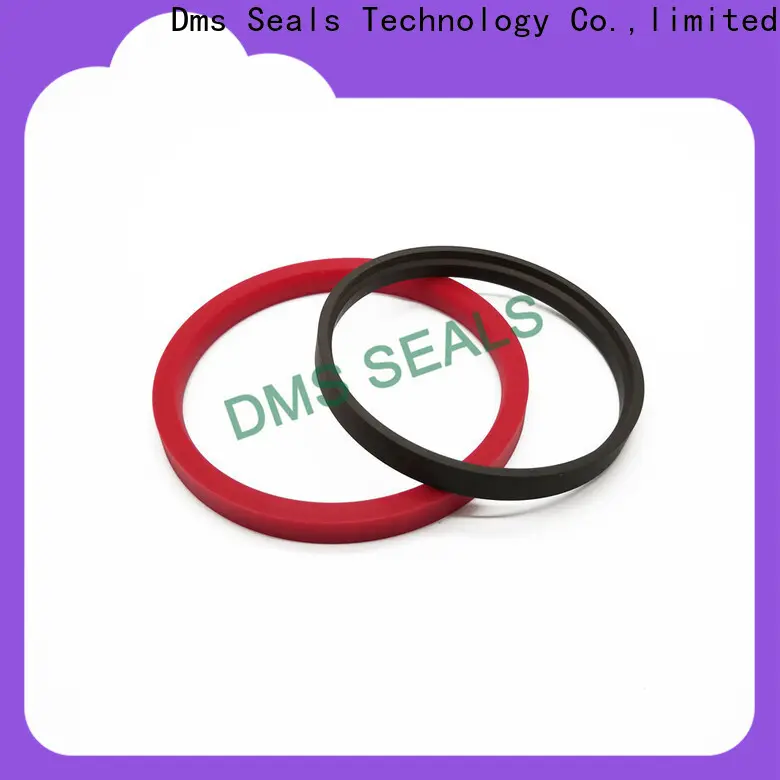

DMS Seals best rubber seals and gaskets suppliers o ring for piston and hydraulic cylinder

Company Advantages
1. DMS Seals is available in various design styles.
2. The production of DMS Seals is greatly improved and it reduces labor costs.
3. DMS Seals is designed and manufactured under the supervision of experts by employing the latest technology following industry standards.
4. The production of DMS Seals strictly complies with ISO standard manufacturing processes.
5. DMS Seals rubber seals and gaskets suppliers adopts imported raw materials to ensure the smooth production process.
6. This product is in strict accordance with ISO9001 and meets the requirements of quality control system.
7. The product is of premium quality as we have done careful inspection and documentation before it comes into the market.
8. The quality of this product is up to the international standard.
9. The quality of the product meets the latest industry standards.
10. One of the best reasons to use this product is because it enables people to make their own space out of nothing.
11. I had no experience with POS software or hardware. Luckily I bought this product. It was simple to set up and extremely easy to use. - Said one of our customers.
12. Wearing this product can effectively prevent foot problems such as fungal nail infections, the pain of the feet and serious joint.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter	Outer Diameter	Groove Width	Install Chamfer	Radius	Radial Clearance                S max.
d f8	D H8	L+0.2	L1	R1	10MPa	20MPa	40MPa
50-69.9	d+15.0	7.5	5.0	0.4	0.5	0.4	0.3
70-149.9	d+20.0	10.1	6.0	0.4	0.7	0.5	0.4
200-244.9	d+25.0	12.5	8.5	0.4	0.8	0.6	0.5
245-519.9	d+30.0	15.0	10.0	0.8	0.9	0.7	0.6
520-769.9	d+35.0	17.5	13.0	1.2	1.0	0.8	0.7
770-1500	d+40.0	20.0	15.0	1.2	1.0	0.8	0.7

3. Application and properties

Applied for larger diameter piston rods and heavy-duty hydraulic rod sealing system in hard working conditions. High pressure resistance, excellent resistance to gap extrusion, wear-resisting.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	5 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d f8	D H8	L+0.2
50 60 70	65 75 85	7.5 7.5 7.5	GSJ-W50*65*7.5 GSJ-W60*75*7.5 GSJ-W70*85*7.5
75 80 100	95 100 120	10 10 10	GSJ-W75*95*10 GSJ-W80*100*10 GSJ-W100*120*10
110 115 120	130 135 140	10 10 10	GSJ-W110*130*10 GSJ-W115*135*10 GSJ-W120*140*10
130 140 145	150 160 165	10 10 10	GSJ-W130*150*10 GSJ-W140*160*10 GSJ-W145*165*10
150 160 170	170 180 190	10 10 10	GSJ-W150*170*10 GSJ-W160*180*10 GSJ-W170*190*10
175 180 200	195 200 220	10 10 10	GSJ-W175*195*10 GSJ-W180*200*10 GSJ-W200*220*10
230 240 250	255 265 275	12.5 12.5 12.5	GSJ-W230*255*12.5 GSJ-W240*265*12.5 GSJ-W250*275*12.5
260 265 270	285 290 295	12.5 12.5 12.5	GSJ-W260*285*12.5 GSJ-W265*290*12.5 GSJ-W270*295*12.5
280 290 300	305 315 325	12.5 12.5 12.5	GSJ-W280*305*12.5 GSJ-W290*315*12.5 GSJ-W300*325*12.5
