DMS Seals Best wholesale hydraulic seals vendor for pressure work and sliding high speed occasions

Company Advantages
1. design can provide wholesale hydraulic seals with a long service life and extremely high performance.
2. Dms Seals Technology Co.,limited supplies wholesale hydraulic seals with features in various specifications.
3. wholesale hydraulic seals 's structure has been developed using idea.
4. Our strict quality management system maintains the excellent performance and quality of our products.
5. Products must be inspected through our inspection system to ensure that quality meets industry requirements.
6. This product has been approved by an authoritative third party, including performance, durability and reliability.
7. The product is of high quality. Because it has been tested for several times and its superior quality and can withstand the test of the time.
8. The product is tested by our QC team who regards the testing as an important factor of product performance. Thus, the conducted testing is highly in line with international testing standards.
9. The product ensures a clean supply of power. This will enhance the nation to maintain a clean environment as well as conserve a lot of energy.
10. Requiring little repairs and maintenance, the product helps manufacturers save maintenance money and time in the long run.
11. This product balances the absorption of any chromatogram, but there is no significant chromatic aberration between the visual and the true natural feel.
12. This product enables employees to work more efficiently and effectively, which will directly contribute to an increase in overall productivity.

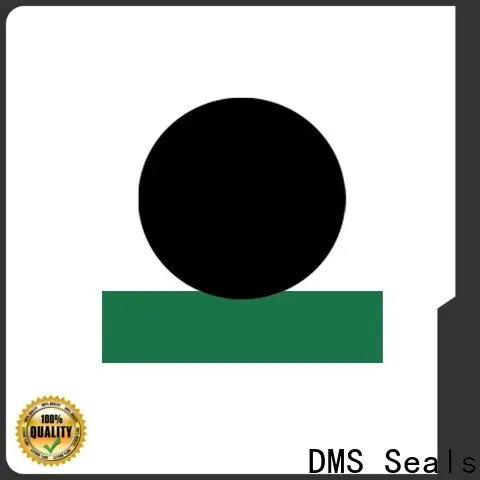

1. Installation Recommendation

2. Application and properties

Applicable to a wide range of pressure work and sliding high speed occasions. Standard combined seal. Low friction, strong wear resistance.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM





4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 35MPa	-30℃ + 200℃	1.5m/s	general hydraulic oil, water glycol hydraulic oil, oil / water emulsion type hydraulic oil.

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
12 14 16	18 20 22	3.0 3.0 3.0	3.2 3.2 3.2	SPNO12*18*3.2 SPNO14*20*3.2 SPNO16*22*3.2
18 20 22	24 26 31	3.0 3.0 3.8	3.2 3.2 4	SPNO18*24*3.2 SPNO20*26*3.2 SPNO22*31*4
25 28 30	34 37 39	3.8 3.8 3.8	4 4 4	SPNO25*34*4 SPNO28*37*4 SPNO30*39*4
32 36 40	41 45 49	3.8 3.8 3.8	4 4 4	SPNO32*41*4 SPNO36*45*4 SPNO40*49*4
45 50 56	54 65 71	3.8 6.3 6.3	4 6.5 6.5	SPNO45*54*4 SPNO50*65*6.5 SPNO56*71*6.5
60 63 70	75 78 85	6.3 6.3 6.3	6.5 6.5 6.5	SPNO60*75*6.5 SPNO63*78*6.5 SPNO70*85*6.5
75 80 85	90 95 100	6.3 6.3 6.3	6.5 6.5 6.5	SPNO75*90*6.5 SPNO80*95*6.5 SPNO85*100*6.5
90 95 100	105 110 115	6.3 6.3 6.3	6.5 6.5 6.5	SPNO90*105*6.5 SPNO95*110*6.5 SPNO100*115*6.5
105 110 115	120 125 130	6.3 6.3 6.3	6.5 6.5 6.5	SPNO105*120*6.5 SPNO110*125*6.5 SPNO115*130*6.5
120 125 130	135 140 145	6.3 6.3 6.3	6.5 6.5 6.5	SPNO120*135*6.5 SPNO125*140*6.5 SPNO130*145*6.5
135 140 145	150 155 160	6.3 6.3 6.3	6.5 6.5 6.5	SPNO135*150*6.5 SPNO140*155*6.5 SPNO145*160*6.5
150 160 170	170 180 190	9.8 9.8 9.8	10 10 10	SPNO150*170*10 SPNO160*180*10 SPNO170*190*10
