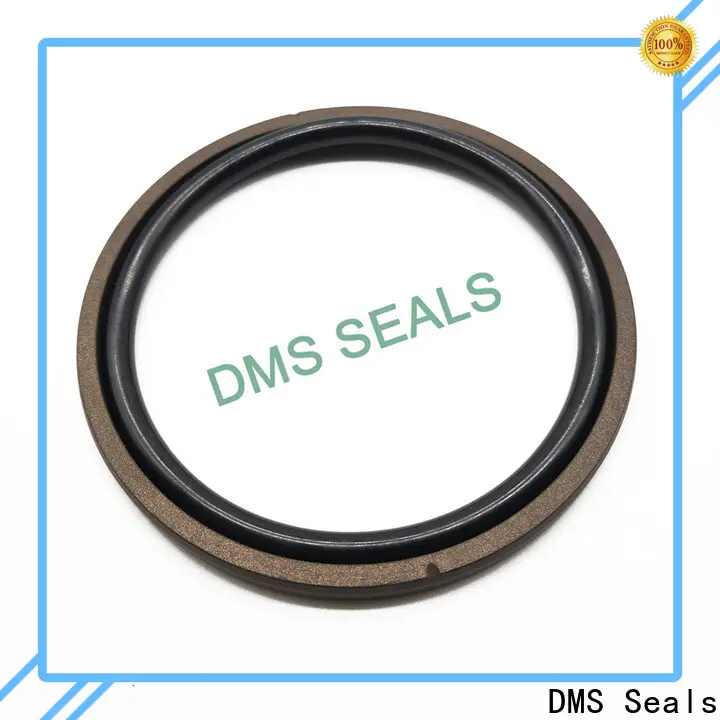

DMS Seals bonded piston seal cost for light and medium hydraulic systems

Diameter Range:
3-1600mm
Pressure Range:
0-35MPa
Temperature Range:
-30℃+200℃
Speed:
1.5m/s
Medium:
Hydraulic oil, flame retardant liquid, water and others.
Inquiry
Product Details
Dms Seals pursues excellent quality and strives for perfection in every detail during the production.Well-chosen in material, fine in workmanship, excellent in quality and favorable in price, Dms Seals's Oil Seal Manufacturer is highly competitive in the domestic and foreign markets.
  • DMS Seals bonded piston seal cost for light and medium hydraulic systems 3
Company Advantages
1. During the development stage of DMS Seals , different factors have been taken into consideration. They are mainly structure stability, statics, mechanical properties, the whole efficiency, etc.
2. DMS Seals is done through a series of manufacturing processes. These processes include electrospinning, air vortex spinning, or jet spinning.
3. DMS Seals has been tested in all aspects. It has been detected in terms of insulation resistance, current leakage, and current load.
4. The product has a better performance than other similar products in the market.
5. The quality of this product is based on government regulations and industry standards.
6. The product produced by modern assembly line improves the reliability of quality.
7. The life cycle of this product has been greatly extended.
8. bonded piston seal , produced by finest quality raw materials, is mainly applied into industry.
9. Perfect after-sales service of Dms Seals Technology Co.,limited is gradually recognized by the majority of customers.
10. DMS Seals's great advantages are created with good raw materials from abroad and international advanced equipment.
11. Dms Seals Technology Co.,limited is all about comfort, service and meeting individual needs.
1.Installation Recommendation

undefined

2.Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

3.Working Conditions

Working  Conditions

Diameter Range

Pressure Range

Temperature Range

Speed

Medium

3-1600mm

0-35MPa

-30℃+200℃

1.5 m/s

hydraulic oil, flame retardant liquid, water and others.

4.Installation Dimensions

Bore Dia.

Groove Width

Order No.

O-Ring  Dimension

D H9

L1+0.2

60
65
70

6
6
6

SPGO60*6
SPGO65*6
SPGO70*6

43.5*5.3
48*5.3
53*5.3

75
80
85

6
6
6

SPGO75*6
SPGO80*6
SPGO85*6

58*5.3
63*5.3
67*5.3

90
95
100

6
6
6

SPGO90*6
SPGO95*6
SPGO100*6

73*5.3
77.5*5.3
83*5.3

105
110
115

6
6
6

SPGO105*6
SPGO110*6
SPGO115*6

87.5*5.3
92.5*5.3
97.5*5.3

120
125
130

6
6
6

SPGO120*6
SPGO125*6
SPGO130*6

103*5.3
108*5.3
112*5.3

135
140
145

6
6
6

SPGO135*6
SPGO140*6
SPGO145*6

118*5.3
123.19*5.3
128*5.3

150
155
160

6
6
6

SPGO150*6
SPGO155*6
SPGO160*6

132.72*5.3
138*5.3
142.24*5.3

165
170
175

6
6
6

SPGO165*6
SPGO170*6
SPGO175*6

148.5*5.3
151.77*5.3
158*5.3

180
185
190

6
6
6

SPGO180*6
SPGO185*6
SPGO190*6

164.47*5.3
167*5.3
173*5.3

195
80
85

6
7.9
7.9

SPGO195*6
SPGO80*7.9
SPGO85*7.9

177.17*5.3
56*7
61*7

90
95
100

7.9
7.9
7.9

SPGO90*7.9
SPGO95*7.9
SPGO100*7.9

66*7
71*7
77.5*7

105
110
115

7.9
7.9
7.9

SPGO105*7.9
SPGO110*7.9
SPGO115*7.9

82*7
86*7
92*7



Company Features
1. As a reputable manufacturer of , Dms Seals Technology Co.,limited, in virtue of strong R&D and manufacturing abilities, has become a notable expert in this field. With years of development, Dms Seals Technology Co.,limited has shot up the rankings of manufacturing bonded piston seal . We have a good reputation in the industry. Being an experienced manufacturer of , Dms Seals Technology Co.,limited has gained a good reputation for designing and manufacturing high-quality products.
2. We have a team of professionals. They have a sound understanding of manufacturing practices and have years of expertise to help our customers to seek new and better ways of their manufacturing needs. By maintaining good relationships with customers and offering tailor-made services, we have become a strong and long-term partner for most majority of them. Our clients also include some world-famous companies. We have set up a strict production management system. This system has clear requirements for every production stage, beginning from incoming materials to the final packaging, which eventually contributes to the standardization of production processes.
3. Protecting the environment is one of the basic principles underlying our operations. So far, we've made green & renewable energy investment, carbon management, etc. We will increase our positive social impact through a range of sustainable strategies. We source sustainable raw materials, implement strict control on water usage, wastes discharge, and greenhouse gas emissions. We are guided by our sustainable development goals. We will develop and manufacture our products in a way that ensures they are safe, environmentally friendly and economical. We offer a culture of empowerment. All of our employees are challenged to be creative, to take risks and to constantly find better ways to do things, so that we can continue to delight our customers and grow our business. We contribute to the natural environment and make the environment of the earth more sustainable and beautiful. We will make a monitor system to control emissions, resources, and waste to track sustainable initiatives.

DMS Seals bonded piston seal cost for light and medium hydraulic systems

bonded piston seal

Type:

DMS Seals bonded piston seal cost for light and medium hydraulic systems 5DMS Seals bonded piston seal cost for light and medium hydraulic systems 6
