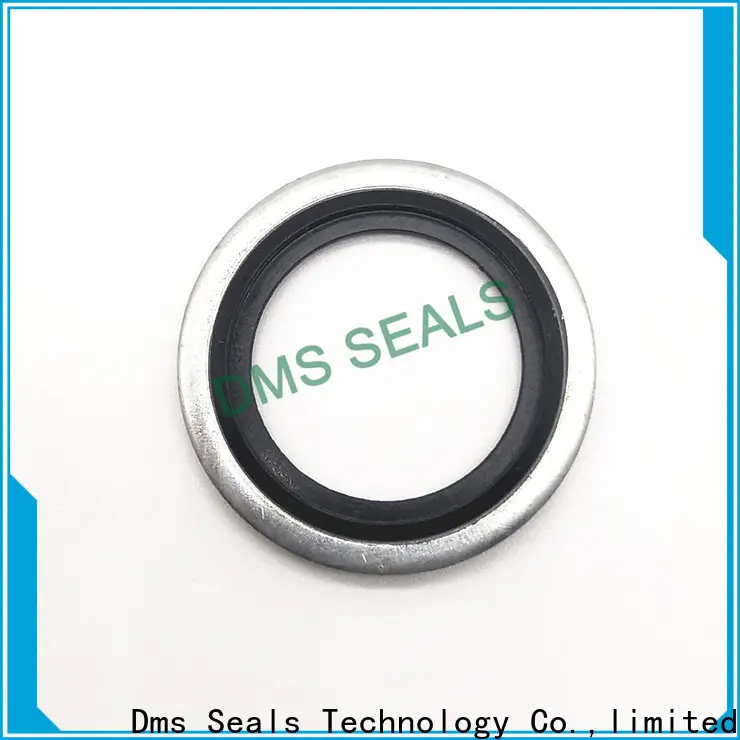

DMS Seals bonded seal dichtung factory for fast and automatic installation

Company Advantages
1. bonded seal dichtung is a popular product in the market now which is processed with .
2. Dms Seals Technology Co.,limited is very proud to have its own design team to make sure the uniqueness of bonded seal dichtung .
3. The exterior and internal structure of DMS Seals bonded seal dichtung is completed by professional engineers.
4. As for the design of bonded seal dichtung , it is of great popularity now.
5. Coupled with this product, the bedroom will be more welcoming and comfortable than ever. It makes the bedroom look very beautiful.
6. It comes with mobility. It is designed to be easily transportable and in compliance with the required dimension to ensure that these can be transported anywhere.
7. The product has good sealing properties. It can effectively prevent foreign objects from entering in it, hence protecting the packaged items.
8. Its fabric has a high antibacterial activity. They are cable of inhibiting the growth of many bacteria and fungi that cause odors.
9. The product has remarkable sealing performance. All its components and parts are finely soldered inside the housing.
10. The new material has been developed in Dms Seals Technology Co.,limited to prepare bonded seal dichtung combining the excellent properties of .
11. Dms Seals Technology Co.,limited has set up a full range of multi-channel procurement platforms.
12. All the staff in DMS Seals have the perseverance to the development of bonded seal dichtung .
13. Dms Seals Technology Co.,limited idea on bonded seal dichtung will revolutionize high pressure sealing washer and prove to be a worldwide hit.

1. Applicability

The BS/A bonded seals (automatic core-positioning) are applicable to threaded pipe fittings and plug sealing in Metric System, the Britain System and BSP. The location processing of sealing groove is not specially required, so it is ideal fittings for fast and automatic installation. Its service temperature is -30℃~100℃, working pressure less than 39.2MPa.

2. Figure

2. GM500 Self-centering range metric dimensions

Metric Thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
PPM6	6,50	10,00	1,00	8,00	5,60
PPM8	8,5	14,00	1,00	10,40	6,40
PPM10	10,50	16,00	2,00	12,40	8,05
PPM12	12,50	18,00	1,50	14,10	9,73
PPM14	14,5	20,00	2,00	16,40	11,38
PPM16	16,5	22,00	2,00	18,40	13,41
PPM18	18,5	25,00	2,00	20,40	14,76
PPM20	20,5	28,00	2,00	22,50	16,76
PPM22	22,5	30,00	2,00	24,40	18,74
PPM24	24,5	32,00	2,00	26,40	20,11
PPM27	27,2	35,00	2,00	29,40	23,30
PPM30	30,7	38,00	2,00	32,40	25,70
PPM33	33,5	42,00	2,00	35,40	28,70
PPM36	36.7	46,00	2,00	38,70	31.1
PPM39	41.9	51,00	2,00	40,00	34.1
PPM42	42.7	53,00	2,00	45,70	38.7
PPM48	48.7	60,00	2,00	51,70	43.7
PPM52	52.9	66,00	2,00	56,40	46
PPM60	60.9	75,00	2,00	63,00	-

3. GM500 Self-centering range inch dimensions, BSP

BSP thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
1/8 BSP	10,37	15,88	2,00	11,84	8,26
1/4 BSP	13,74	20,57	2,00	15,21	11,18
3/8 BSP	17,28	23,80	2,00	18,75	14,76
1/2 BSP	21,54	28,58	2,50	23,01	18,24
3/4 BSP	27,05	34,93	2,50	28,53	23,83
1 BSP	33,89	42,80	3,20	36,88	29,92
1 1/4 BSP	42,93	52,38	3,20	45,93	38,45
1 1/2 BSP	48,44	58,60	3,20	51,39	44,45
2 BSP	60,58	73,03	3,20	63,63	56,26



Company Features
1. DMS Seals is very extraordinary in the bonded seal dichtung industry. Dms Seals Technology Co.,limited is a dependable and trustworthy high pressure sealing washer supplier for several famous companies. As a supplier and manufacturer of molded seals , Dms Seals Technology Co.,limited is professional and reliable. Dms Seals Technology Co.,limited is a high tech company which focuses on self centering bonded seal . Dms Seals Technology Co.,limited is a leading supplier of high quality metric hydraulic seals in the global market.
2. Almost all defected viton sealing washer can be checked out by our QC. Dms Seals Technology Co.,limited has advanced production conditions. Dms Seals Technology Co.,limited has advanced production lines for bonded sealing washer dimensions .
3. Dms Seals Technology Co.,limited is committed to the production of high quality, low price . Inquiry! Under the principle of win-win cooperation, we always working hard to seek for long term partnership with all our customers. We will allow our customers to engage with the business and strengthen interaction with them about the product and services. Through this way, we can incentivize them to keep coming back. We possess an enthusiasm that has been an infectious force throughout the company. This enthusiasm has driven us to seek new technologies and instilled a desire to pursue and obtain better outcomes. Inquiry!

DMS Seals bonded seal dichtung factory for fast and automatic installation

bonded seal dichtung

Type:
